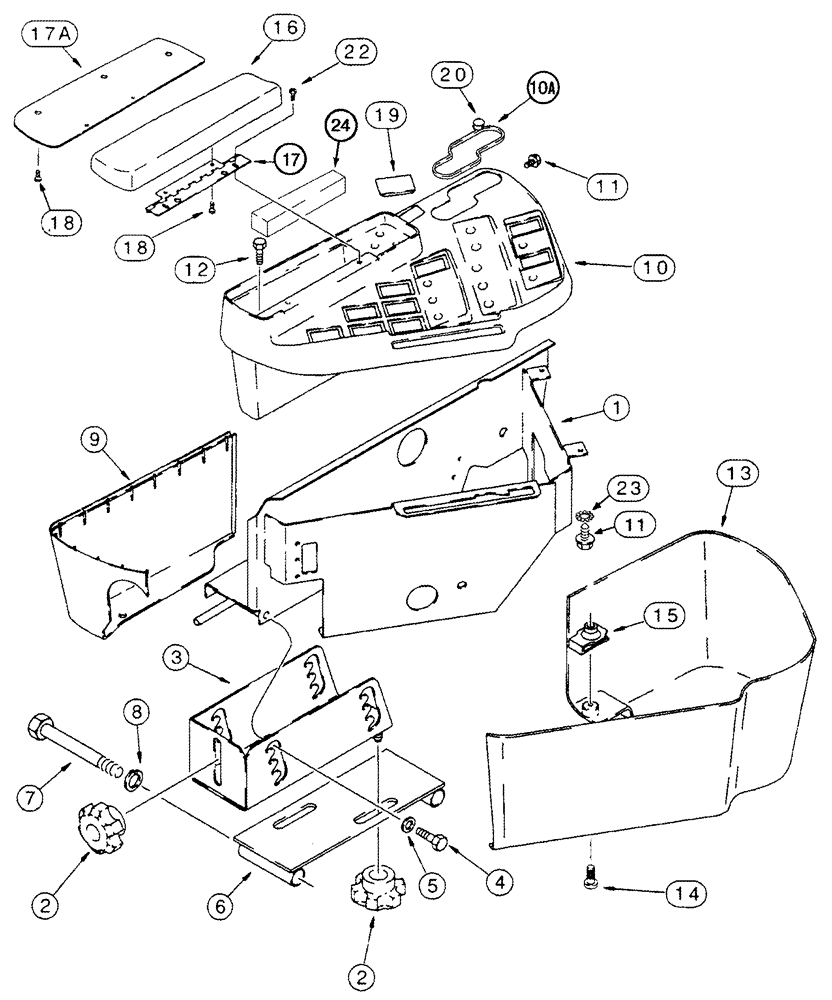

Запчасти Case IH 2555 (09E-09) - CAB CONSOLE, RIGHT HAND (10) - CAB & AIR CONDITIONING

1

117580A6

CONSOLE

1шт.

2

118781A1

KNOB

3шт.

3

117107A2

SUPPORT

1шт.

4

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

4шт.

6

128349A2

SUPPORT

1шт.

7

828-16120

BOLT,Hex, M16 x 2 x 120mm, Cl 10.9

2шт.

8

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

2шт.

9

130412A1

COVER

Rear

1шт.

10

235157A1

BRACKET

Right Hand, Includes 10A, Includes Decals

1шт.

10a

128833A2

GUIDE

1шт.

11

841-4410

SCREW,HWH, M4 x 10mm, Cl 4.8

2шт.

12

614-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd

1шт.

13

118321A2

SKIRT

Front

1шт.

14

440-1106

SCREW,Cross Pan Hd, #10-24 x 3/8"

4шт.

15

131-861

SPRING NUT,Tinn, U, #10-24

4шт.

128970A3

ARMREST

Inc. 16 - 18

1шт.

16

NSS

NOT SOLD SEPARAT

Support

1шт.

17

128849A2

HINGE

1шт.

17a

185546A1

PLATE

1шт.

23

493-81000

LOCK WASHER,Ext-Int Tooth, #10

(3/16")

2шт.

18

185544A1

SCREW

5шт.

19

245918C1

LENS

Blanking, Rocker Switch Opening

1шт.

20

353-42

PLUG

3/8, Switch Opening

1шт.

22

841-4410

SCREW,HWH, M4 x 10mm, Cl 4.8

2шт.

24

251495A1

FOAM

1шт.

25

282056A1

PLUG

If Used, Not Illustrated

1шт.

5

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.
