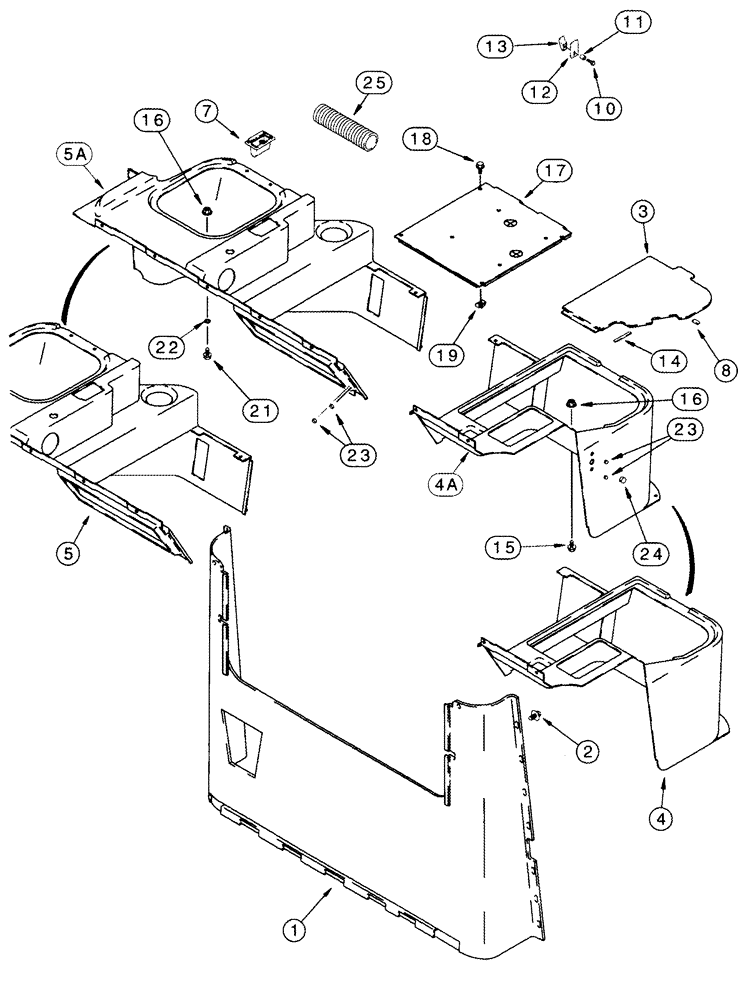

Запчасти Case IH 2555 (09E-08) - CAB INTERIOR (10) - CAB & AIR CONDITIONING

198900A2

PANEL

Rear Trim, Inc. 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

Panel

1шт.

2

121064A1

CLASP

14шт.

3

140320A1

COVER

Fuse Access

1шт.

4

140322A1

COVER

Pedestal, Right Hand, No Longer Available, Order 140322A3

1шт.

4a

140322A3

COVER

Pedestal, Right Hand

1шт.

5

140321A3

COVER

Pedestal, Left Hand, No Longer Available, Order 140321A4

1шт.

5a

140321A4

COVER

Pedestal, Left Hand

1шт.

7

124234A1

TRAY

1шт.

8

121067A1

FASTENER

1 x 12, Cut From 121068A1

4шт.

10

276-13520

SELF-TAP SCREW,Hex Hd, #10 x 1 1/4"

1шт.

11

2-3010T1

SPACER

1шт.

12

60-6520T1

PLATE

1шт.

13

3234176R1

COAT HOOK

1шт.

14

1990258C1

SEAL

80 mm (3-5/32 in), Cut From 187874C2

2шт.

15

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

11шт.

16

231-51409

SERRATED NUT,Flg, USR, #10-24

23шт.

17

NSS

NOT SOLD SEPARAT

Support

1шт.

18

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

19

786618C1

NUT

5/16

4шт.

20

192269A1

FOAM INSULATION,25mm W x 500mm L x 19mm Thk

500 mm (19-5/8 in), Cut From 1971350C1

1шт.

21

117067A1

SELF-TAP SCREW,Pan Hd, #10-24 x 3/4"

12шт.

22

492-11010

LOCK WASHER,#10

12шт.

23

353-400

PLUG,Dome, .250" hole, Nylon

Used with Ref. 4A, 5A

6шт.

24

353-405

PLUG,Dome, .562" hole, Nylon

Used with Ref 4A, 5A

2шт.

25

236586A1

CONDUIT

990 mm (39 in), Cable

1шт.
