Запчасти Case IH 2555 (09E-02) - CAB DOOR ASSY, LEFT HAND (10) - CAB & AIR CONDITIONING

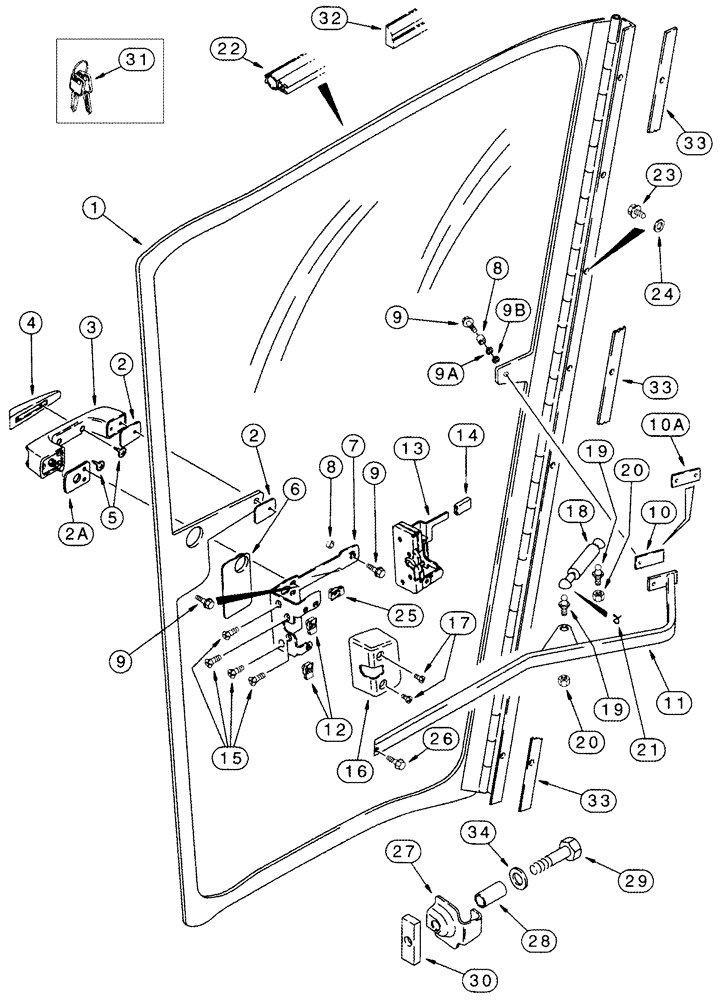

Схема запчастей Case IH 2555 - (09E-02) - CAB DOOR ASSY, LEFT HAND (10) - CAB & AIR CONDITIONING
27
22
17
33
18
12
8
26
5
23
2
34
10
19
9
13
21
9b
15
3
29
32
6
20
16
4
33
1
9a
9
31
7
2
28
14
25
33
9
8
30
2a
24
10a
20
11
19

Артикул

Название

Примечание

Количество

127159A6

DOOR

Left Hand, Includes 1 - 17, Includes 25, 26, No Longer Available, Order 259688A2, See Page(s) 9E-9

1шт.

1

NSS

NOT SOLD SEPARAT

Door, Includes Hinge

1шт.

2

194175A1

GASKET,3.2mm Thk

Small

2шт.

2a

194174A1

GASKET,3.2mm Thk

Large

1шт.

3

117711A1

HANDLE

Exterior

1шт.

4

176022A2

BUMPER

Door Handle

1шт.

5

177092A1

SELF-TAP SCREW

Special

2шт.

6

123946A2

GASKET,1.6mm Thk

Door Latch

1шт.

7

123937A2

SUPPORT

Door Latch

1шт.

8

109171C1

BUSHING,6.6mm ID x 8.74mm OD x 6.46mm L

2шт.

9

97011C1

FLANGE BOLT,Hex, M6 x 25mm, Cl 8.8

4шт.

9a

194401A1

WASHER

Outer Seal

1шт.

9b

194176A1

GASKET

Outer, Serial Range: Handle-Glass

1шт.

10

194190A1

GASKET

Inner, Serial Range: Handle-Glass

1шт.

10a

194190A2

GASKET,3.2mm Thk

, Serial Range: Handle-Glass

1шт.

11

123959A4

HANDLE

Door, Interior

1шт.

12

564791R1

SPRING NUT

1/4

2шт.

13

117714A1

LATCH

Door

1шт.

14

60-6423T1

CAP

End

1шт.

127159A6

DOOR

Left Hand, Includes 1 - 17, Includes 25, 26, Continued From Previous Page

1шт.

15

443-12512

SCREW,Cross Flat Hd, 1/4"-20 x 3/4"

4шт.

16

127498A2

COVER

1шт.

17

140-111

SCREW,Cross Pan Hd, 1/4" - 20 x 1/2"

2шт.

18

144006A1

GAS STRUT,381mm Extended, 240mm Compressed

Door

1шт.

19

1340345C1

BALL STUD

BALL PIN

2шт.

20

231-1445

NUT,5/16"-18, GB

2шт.

21

F44883

CLIP,DIN 71805 - S10

2шт.

22

234089A1

DOOR SEAL

4483 mm (176-1/2 in), Door

1шт.

23

281-14512

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

8шт.

24

495-31022

WASHER,#10

8шт.

25

131-610

SPRING NUT,U, Ret, 1/4"-20

1шт.

26

458-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

27

117716A1

PROTECTOR

Door Stop

1шт.

28

117717A2

SPACER

1шт.

29

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

1шт.

30

117718A1

PLATE

Door Stop

1шт.

31

1964831C2

IGNITION KEY

1шт.

32

232801A1

DOOR SEAL

1016 mm (40 in), Door, Upper

1шт.

33

193316A1

SHIM

Door Hinge

1шт.

34

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32"), Used as a spacer

1-2шт.

Выбрано товаров: 40
