Запчасти Case IH 2555 (09E-01) - CAB FRAME AND WINDSHIELD (10) - CAB & AIR CONDITIONING

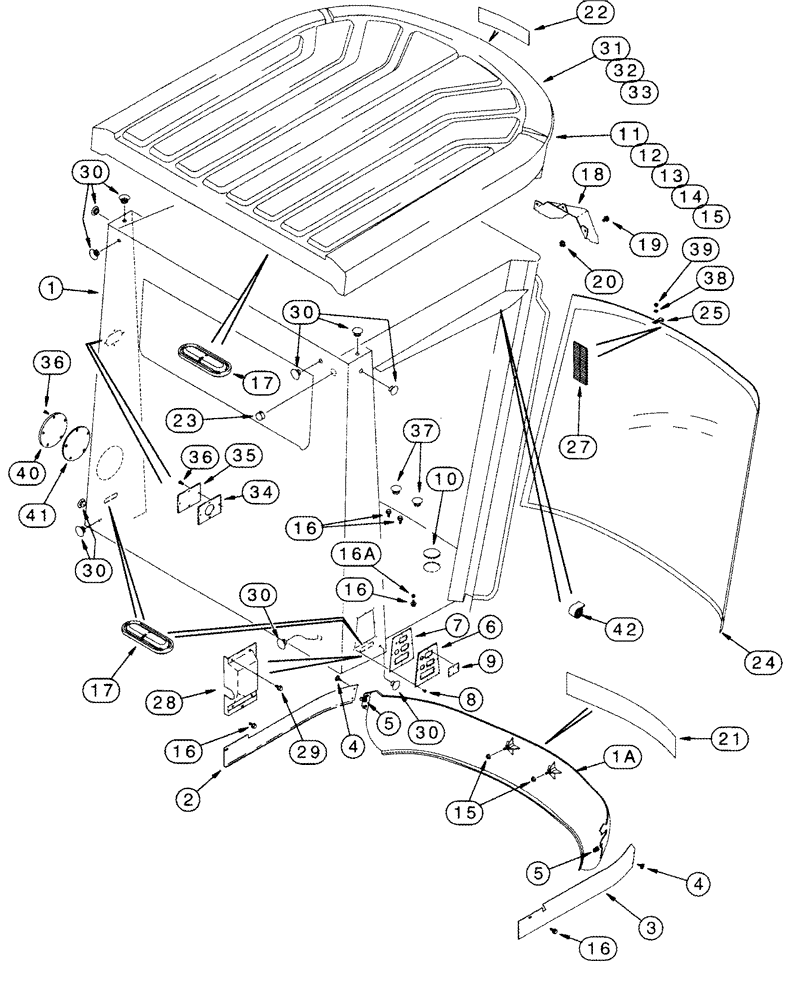

Схема запчастей Case IH 2555 - (09E-01) - CAB FRAME AND WINDSHIELD (10) - CAB & AIR CONDITIONING
32
16
11
30
9
7
14
30
30
41
34
36
4
3
40
30
16
28
20
18
17
42
23
31
6
13
37
12
1
8
25
33
5
30
1a
38
22
16a
21
16
36
27
15
19
4
2
10
17
24
16
35
5
15
39
29

Артикул

Название

Примечание

Количество

234504A1

CAB

ROPS, Machinery Item, Order From Machinery Price List, -JJC0157149

1шт.

REF

INSTRUCTION

Cab Assy, ROPS, Machinery Item, Order From Machinery Price List, JJC0157150-

1шт.

1

241973A5

CHASSIS

-JJC0157149

1шт.

1

247096A4

CHASSIS

JJC0157150-

1шт.

1a

179241A1

COVER

Cab, Front

1шт.

2

139597A2

COVER

Cab, LH

1шт.

3

178243A2

SKIRT

Cab, Right Hand

1шт.

4

260-16516

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

4шт.

5

60-6708T1

NUT

4шт.

6

123349A1

LARGE PLATE

PLATE, LARGE , Electrical Access

1шт.

7

132227A1

GASKET,5mm Thk

1шт.

8

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

12шт.

9

122343A1

LARGE PLATE

PLATE, LARGE , Cover, Bulkhead Connector

1шт.

10

205-128

HOLE PLUG BUTTON,2 1/2"

2-1/2 OD

4шт.

11

122819A2

ROOF

Inc. 32, 33

1шт.

12

186882A1

EMBLEM CASE/IH

1шт.

13

131-431

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

14

495-81001

WASHER,5/16"

2шт.

15

825-5148

SERRATED NUT,M8, Flg Ser

6шт.

16

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

13шт.

16a

231-51409

SERRATED NUT,Flg, USR, #10-24

11шт.

17

137293A1

PLUG

Cab Roof and Floor

4шт.

18

141758A3

COVER

1шт.

19

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

20

425-104

NUT,1/4"-20, Cl 5

3шт.

21

1987145C1

DECAL

Cotton Express

1шт.

22

232846A2

COVER

1шт.

23

353-411

PLUG,Dome, 1.000" hole, Nylon

Antenna Hole

1шт.

24

116809A4

WINDSHIELD

Replaces 116809A3

1шт.

25

117707A2

CLAMP

4шт.

27

97268C1

SPACER

10шт.

28

178230A2

COVER

1шт.

29

282-17512

SCREW,Hex Wshr Hd, #10 - 16 x 3/4"

No. 10 x 3/4

6шт.

30

353-402

PLUG,Dome, .375" hole, Nylon

Exterior Trim

10шт.

31

131-648

SPRING NUT,Tinn, U, #10-24

No. 10

16шт.

32

230484A1

NUT

M8 - 1,25

4шт.

33

614-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8, Full Thd

4шт.

34

247058A1

GASKET,5mm Thk

1шт.

35

252044A1

LARGE PLATE

PLATE, LARGE Cab Frame, Outlet

1шт.

36

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

8шт.

37

353-400

PLUG,Dome, .250" hole, Nylon

Cab Exterior

2-4шт.

38

495-21038

WASHER,5/16"

4шт.

39

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

JJC0157150-

4шт.

40

246753A1

PLATE

LH

1шт.

41

252676A1

GASKET,5mm Thk

1шт.

42

251548A1

TAPE

63,5 mm (2-1/2 in), Cut From 251550A1

3шт.

42

251549A1

TAPE

160 mm (6-1/4 in), Cut From 251550A1

1шт.

Выбрано товаров: 47
