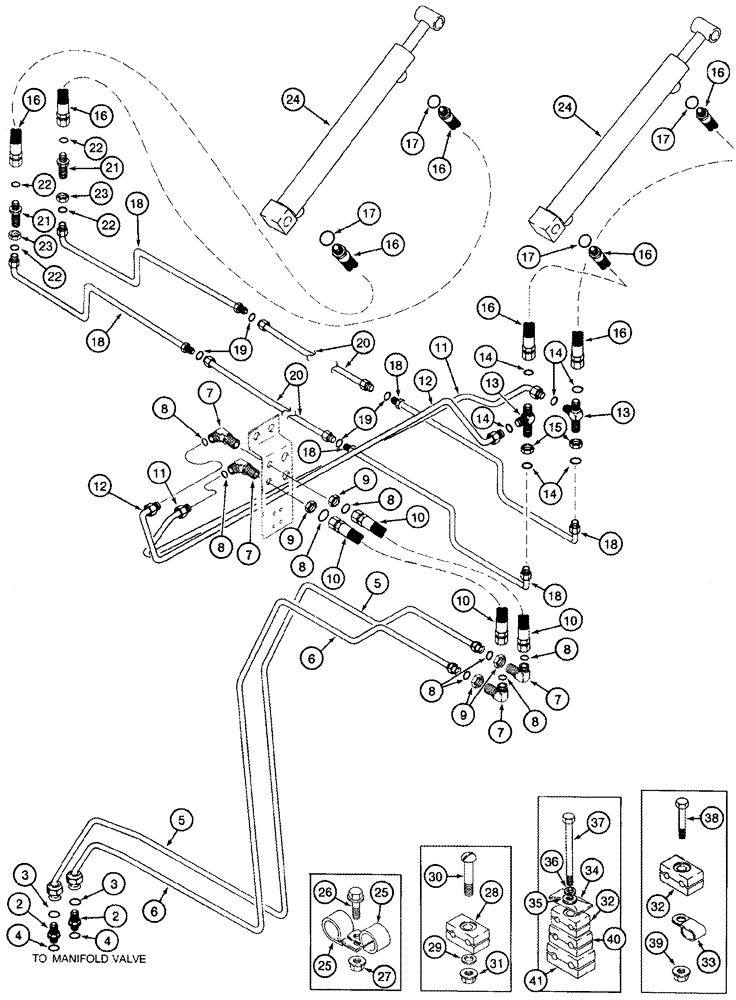

Запчасти Case IH 2555 (08-41) - BASKET DOOR CYLINDER SYSTEM (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
Valve, Manifold, See Page(s) 8-49 - 8-71
1шт.
2
201-102
HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB
Includes 3, 4
2шт.
3
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
5
1988936C1
TUBE
Door Open, Valve
1шт.
6
1988937C1
TUBE,0.5" OD
Door Close, Valve
1шт.
7
201-301
ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS
Includes 8
4шт.
9
201-903
TUBE NUT,Blkhd, 13/16"-16
4шт.
10
1984271C1
HOSE,12.7mm ID x 2500mm L
See Page(s) 8-107, REF 35
2шт.
11
1983193C2
HYD TUBE
Door Open
1шт.
12
1983194C2
HYD TUBE
Door Close
1шт.
13
201-423
TEE,9/16"-18, Blkhd, Run, ORFS
Includes 14
2шт.
15
201-903
TUBE NUT,Blkhd, 13/16"-16
2шт.
16
1984270C1
HOSE,9.53mm ID x 1175mm L
4шт.
17
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
4шт.
18
1983195C2
HYD TUBE
Door Bottom Sides
4шт.
19
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
4шт.
20
1983196C2
HYD TUBE,0.375" OD
Door Bottom
2шт.
21
201-121
HYD CONNECTOR,13/16"-16, Blkhd, ORFS
Includes 22
2шт.
23
201-903
TUBE NUT,Blkhd, 13/16"-16
2шт.
24
1282155C92
CYLINDER ASSY.,Double Acting, 25.4mm Rod, 373.5mm Stroke
Basket Door, See Page(s) 8-117
2шт.
25
515-25190
CLAMP,3/4", Insul, 1/2" Bolt
4шт.
26
409-7620
BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl
2шт.
27
231-5146
FLANGE NUT,3/8"-16
2шт.
28
1546024C1
CLAMP
4шт.
29
495-21038
WASHER,5/16"
4шт.
30
477-73124
SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/2"
4шт.
31
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
4шт.
32
1546025C1
CLAMP
2шт.
33
1301387C2
CLIP
1шт.
34
1347127C1
PLATE
1шт.
35
495-21038
WASHER,5/16"
1шт.
37
413-580
BOLT,Hex, 5/16" - 18 x 5", Gr 5
1шт.
38
413-540
BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5
1шт.
39
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
1шт.
40
1546026C1
CLAMP
1шт.
41
1546027C1
CLAMP
1шт.
Выбрано товаров: 41
