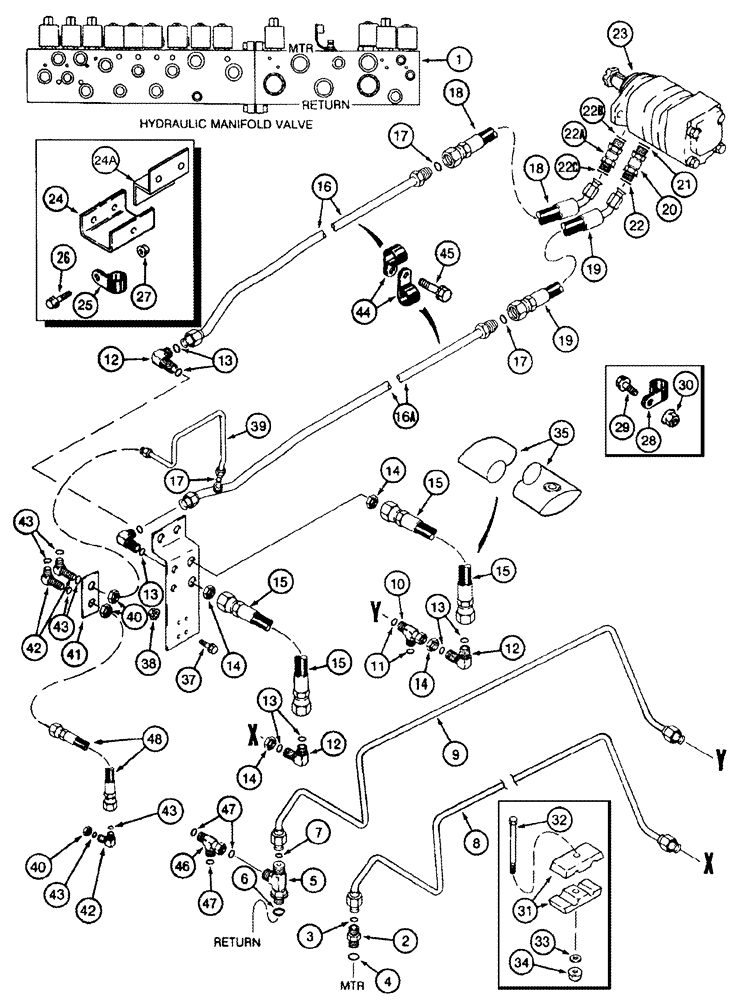

Запчасти Case IH 2555 (08-39) - CONVEYOR UNLOADER MOTOR SYSTEM (07) - HYDRAULICS

1

REF

INSTRUCTION

Valve, Manifold, See Page(s) 8-49 - 8-71

1шт.

2

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Includes Ref. 3, 4

1шт.

3

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

4

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

5

201-428

TEE,1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Includes 6, 7

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

8

1988938C1

TUBE

Supply

1шт.

9

1988939C1

TUBE

Return

1шт.

10

201-417

TEE,1-3/16" - 12 JIC x 1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS

Includes 11

1шт.

11

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

12

201-323

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS

Includes 13

4шт.

13

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

14

218-1249

BHD LOCK NUT,1-3/16" - 12

4шт.

15

1984274C1

HOSE,19.05mm ID x 2500mm L

Bulkhead

2шт.

16

1983197C2

HYD TUBE,0.75" OD

Bulkhead

1шт.

16a

223463A1

TUBE,0.75" OD

1шт.

17

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

18

140183A1

HYDRAULIC HOSE

Conveyor Return

1шт.

19

191114A1

HOSE

Conveyor Supply

1шт.

20

201-107

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 7/8" - 14 Male ORB

Incl. 21, 22

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

22a

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

Includes 22B, 22C

1шт.

22b

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22c

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

23

175430A1

MOTOR, HYDRAULIC

See Page(s) 8-111

1шт.

24

1349851C2

SUPPORT

If Used

1шт.

24a

335724A1

SUPPORT

1шт.

25

515-25254

CLAMP,1", Insul, 1/2" Bolt

2шт.

26

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

1шт.

27

231-5146

FLANGE NUT,3/8"-16

1шт.

28

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

2шт.

29

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

1шт.

30

231-5146

FLANGE NUT,3/8"-16

1шт.

31

1546027C1

CLAMP

2шт.

32

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

33

495-21038

WASHER,5/16"

1шт.

34

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

35

134552A2

SLEEVE

1шт.

36

1349852C1

SUPPORT

Bulkhead

1шт.

37

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

4шт.

38

231-5146

FLANGE NUT,3/8"-16

4шт.

39

223920A1

HYD TUBE

1шт.

40

201-919

BHD LOCK NUT,1" - 14

3шт.

41

185479A1

SUPPORT

1шт.

42

201-346

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Male ORFS

Includes 43

3шт.

43

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

44

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

2шт.

45

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

1шт.

46

201-417

TEE,1-3/16" - 12 JIC x 1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS

Includes 47

1шт.

47

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

48

1984269C1

HOSE,15.88mm ID x 2500mm L

Auger Supply

1шт.

Note: Items 35 - 38 also used with hoses shown on page 8-109.

1шт.

Nota: Los artículos 35 - 38 también se usan con las mangueras que se muestran en la página 8-109.

1шт.

Nota: Os itens 35 a 38 também são utilizados com as mangueiras mostradas na página 8-109.

1шт.
