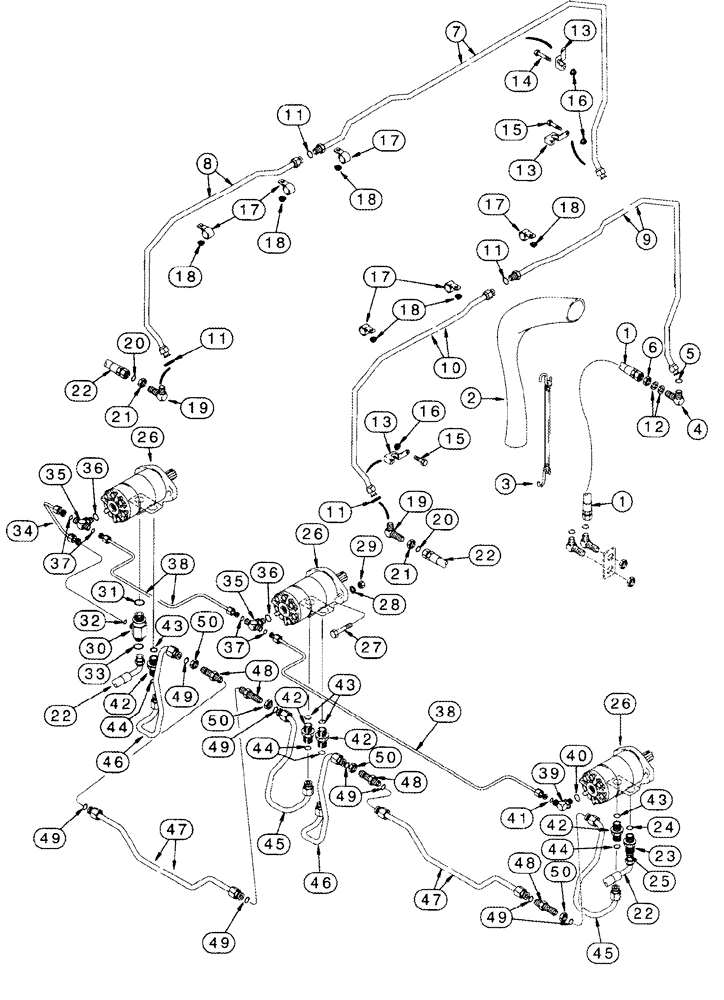

Запчасти Case IH 2555 (08-38) - COMPACTOR AUGER DRIVE MOTOR SUPPLY AND RETURN LINES (07) - HYDRAULICS

1

231412A2

HOSE

See Page(s) 8-109, REF 42

2шт.

2

246697A1

SLEEVE

1шт.

3

246702A1

STRAP

2шт.

4

201-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Includes 5

2шт.

5

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

6

201-903

TUBE NUT,Blkhd, 13/16"-16

2шт.

7

239361A1

HYD TUBE

Right Hand Front, Auger, Basket Lid, Overhead

1шт.

8

239364A1

PIPE

Right Hand Rear, Auger, Basket Lid, Overhead

1шт.

9

239368A1

PIPE

Left Hand Front, Auger, Basket Lid, Overhead

1шт.

10

239369A1

PIPE

Left Hand Rear, Auger, Basket Lid, Overhead

1шт.

11

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

12

895-10020

WASHER,22mm ID x 37mm OD x 3mm Thk

4шт.

13

196447C1

CLAMP

6шт.

14

326-432

BOLT,Hex, 1/4" - 20 x 2", Gr 8

2шт.

15

326-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 8

4шт.

16

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

17

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

6шт.

18

231-5146

FLANGE NUT,3/8"-16

6шт.

19

201-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Includes 20

2шт.

20

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

21

201-903

TUBE NUT,Blkhd, 13/16"-16

2шт.

22

236023A1

HOSE

2шт.

23

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Includes 24, 25

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

25

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

26

236708A1

MOTOR, HYDRAULIC

Auger Drive, Order 188118A1

1шт.

395263A1R

REMAN-HYD MOTOR

2555 BEFORE S/N JJC0249499; Reman for new PN 236708A1

1шт.

395263A1C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

188118A1

SEAL KIT

1шт.

27

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

6шт.

28

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

29

425-108

NUT,1/2" - 13, Gr 5

6шт.

30

236695A1

TEE

Includes 31 - 33, Special, Left Hand Motor

1шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

32

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

33

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

34

237219A1

HYD TUBE

Left Hand Drive Motor

1шт.

35

201-413

TEE,9/16" - 18 ORFS x 9/16" - 18 ORFS x 7/16" - 20 ORB

Left Hand Drive Motor, Center Motor, Includes 36, 37

2шт.

36

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

37

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

38

237220A1

TUBE,0.25" OD

2шт.

39

201-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

Right Hand Drive Motor, Includes 40, 41

1шт.

40

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

41

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

42

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Includes 43, 44

4шт.

43

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

44

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

45

194532A1

HYD TUBE

Right Hand Drive Motor, Center Motor, Left Hand Port

2шт.

46

194533A1

HYD TUBE,0.5" OD

Left Hand Drive Motor, Center Motor, Right Hand Port

2шт.

47

194531A1

HYD TUBE,0.5" OD

2шт.

48

201-121

HYD CONNECTOR,13/16"-16, Blkhd, ORFS

Includes 49

4шт.

49

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

50

201-903

TUBE NUT,Blkhd, 13/16"-16

4шт.
