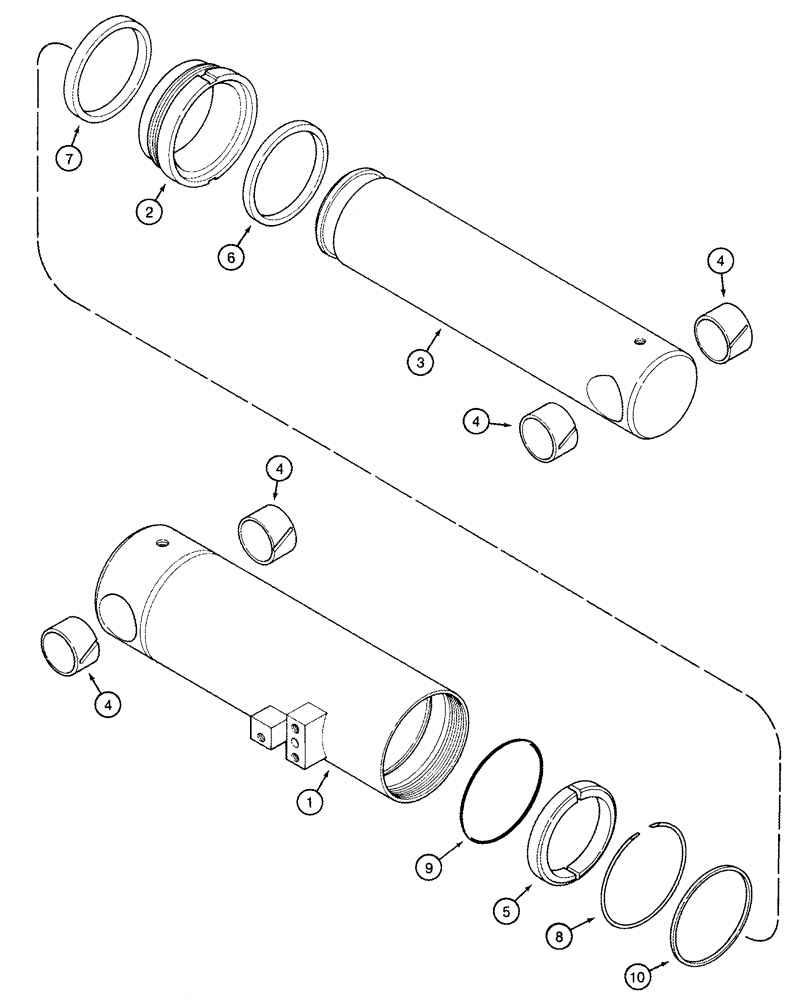

Запчасти Case IH 2555 (08-27) - DRUM LIFT CYLINDER ASSEMBLY (07) - HYDRAULICS

4 Row Narrow, 5 Row Narrow and 5 Row Wide

1шт.

4 Row Wide - Prior To P.I.N. JJC0157150

1шт.

107784A1

CYLINDER ASSY.

Consists Of 1 - 10

2шт.

1

107838A1

TUBE

1шт.

2

1980306C1

GLAND

1шт.

3

1346283C1

PISTON ROD

1шт.

4

1288568C1

BUSHING,44.5mm ID x 47.65mm OD x 28mm L

Pivot

4шт.

5

NSS

NOT SOLD SEPARAT

Piston

1шт.

1980307C1

SEAL KIT

Seal, Includes 6 - 10

1шт.

6

NSS

NOT SOLD SEPARAT

Wiper

1шт.

7

NSS

NOT SOLD SEPARAT

Seal, Piston Rod

1шт.

8

NSS

NOT SOLD SEPARAT

Wire

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

10

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.
