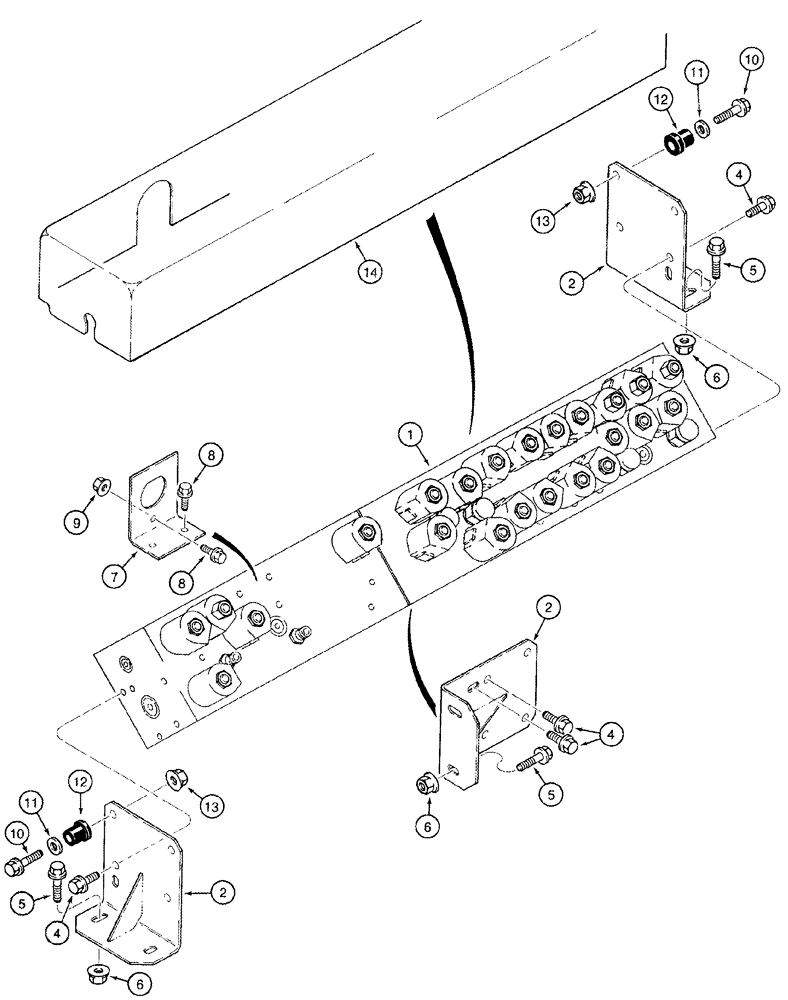

Запчасти Case IH 2555 (08-25) - MANIFOLD VALVE AND MOUNTING (07) - HYDRAULICS

1

REF

INSTRUCTION

Valve, Manifold, See Page(s) 8-49 - 8-71

1шт.

2

1546044C2

SUPPORT

3шт.

4

409-7612

BOLT,3/8"-16 x 1.09" OAL

6шт.

5

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

6шт.

6

231-5146

FLANGE NUT,3/8"-16

6шт.

7

1546366C1

SUPPORT

1шт.

8

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

10

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

2шт.

11

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

2шт.

12

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

2шт.

13

231-5146

FLANGE NUT,3/8"-16

2шт.

14

1990328C2

COVER

1шт.
