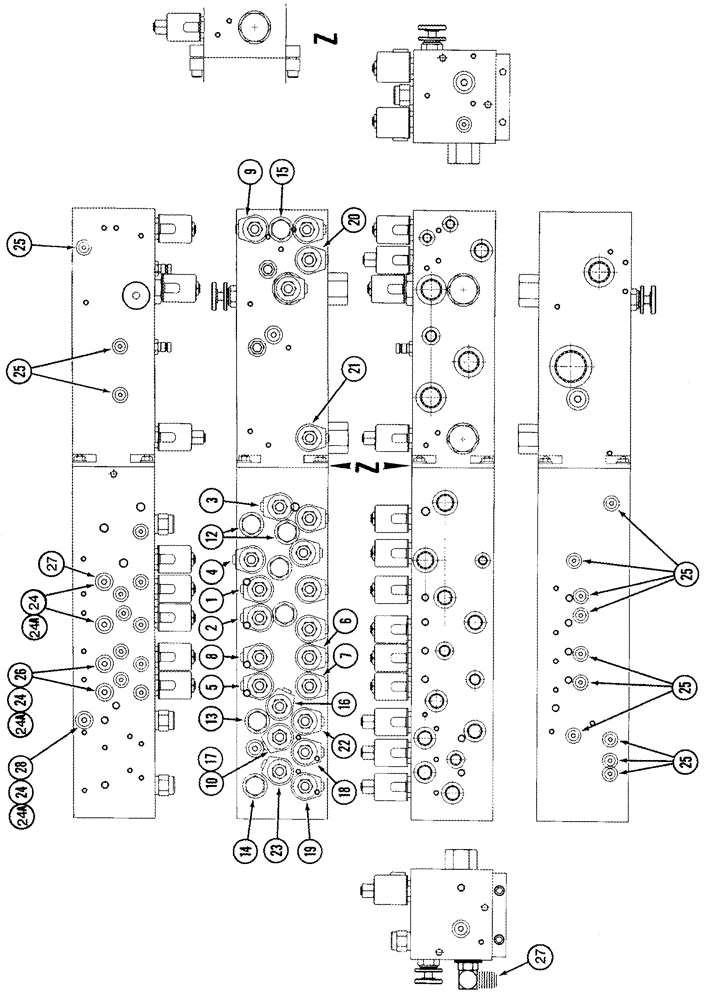

Запчасти Case IH 2555 (08-21) - HYDRAULIC MANIFOLD VALVE WITH 2.0 GPM DRUM LUBE FLOW (07) - HYDRAULICS

Units With Rockshaft Kickback

1шт.

292122A2

MANIFOLD VALVE

Includes 1 - 53

1шт.

1

1288972C1

SOLENOID VALVE

2-Way, Basket Door Lower

1шт.

2

1288972C1

SOLENOID VALVE

2-Way, Basket Door Raise

1шт.

3

1288972C1

SOLENOID VALVE

2-Way, Compactor Lower

1шт.

4

1288972C1

SOLENOID VALVE

2-Way, Compactor Raise

1шт.

5

1288972C1

SOLENOID VALVE

2-Way, Drum Field Pressure

1шт.

6

1288972C1

SOLENOID VALVE

2-Way, Drum Field Tank

1шт.

7

1288972C1

SOLENOID VALVE

2-Way, Drum Service Tank

1шт.

8

1288972C1

SOLENOID VALVE

2-Way, Drum Service Pressure

1шт.

9

1288972C1

SOLENOID VALVE

2-Way, Includes 9A, Drum Lube

1шт.

9a

149942C1

SEAL KIT

Seal Replacement, Not Illustrated

1шт.

10

107467A2

ORIFICE

1шт.

12

1542812C2

VALVE

Includes 12A

2шт.

12a

1272308C1

SEAL KIT

Seal, Flow Control, Not Illustrated

1шт.

13

1346479C2

VALVE

Right Hand

1шт.

14

1346479C2

VALVE

Left Hand, Flow Control

1шт.

15

369660A1

VALVE

Includes 15A, Drum Lube

1шт.

1340843C1

SOLENOID,12V

12V, Includes 1 - 9, 16 - 21, 34 - 37, 43, 44

1шт.

Units With Rockshaft Kickback

1шт.

292122A2

MANIFOLD VALVE

Continued From Previous Page

1шт.

15a

1272308C1

SEAL KIT

Seal, Flow Control, Not Illustrated

1шт.

16

1288958C2

SOLENOID VALVE

3-Way, Left Hand Manual Drum Lift

1шт.

17

1288958C2

SOLENOID VALVE

3-Way, Rockshaft Tiltback

1шт.

18

1288958C2

SOLENOID VALVE

3-Way

1шт.

19

1288958C2

SOLENOID VALVE

3-Way, Right Hand Manual Drum Lift

1шт.

20

1288958C2

SOLENOID VALVE

3-Way, Basket Raise

1шт.

21

1288958C2

SOLENOID VALVE

3-Way, Unloader Motor

1шт.

22

1288958C2

SOLENOID VALVE

3-Way, Left Hand Auto Drum Lift

1шт.

23

1288958C2

SOLENOID VALVE

3-Way, Includes 23A, Right Hand Auto Drum Lift

1шт.

23a

1260872C91

SEAL KIT

Seal Replacement, Not Illustrated

1шт.

24

9625178

PLUG,9/16" - 18 ORB

Incl. 24A

5шт.

24a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

1341811C1

SPRING-CHECK

REPAIR KIT , Sense Check, Includes 25, 25A

13шт.

1341807C1

SOLENOID

10V, Includes 22, 23

1шт.

1340843C1

SOLENOID,12V

12V, Includes 1 - 9, 16 - 21, 34 - 37, 43, 44

1шт.

Units With Rockshaft Kickback

1шт.

292122A1

MANIFOLD VALVE

Continued From Previous Page

1шт.

25

278548

PLUG,Hex, 7/16"-20 ORB

10шт.

25a

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

26

107416A1

PLUG

2шт.

27

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Includes 27A, 27B, See Page(s) 7-5, REF 5

1шт.

27a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

27b

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

28

107418A1

PLUG

1шт.
