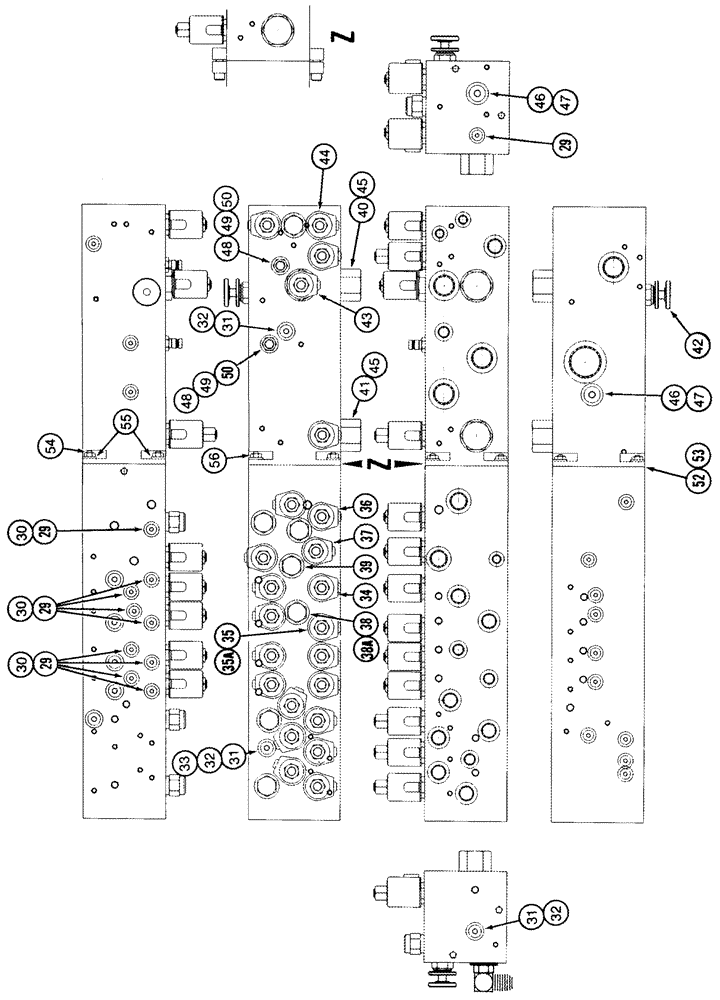

Запчасти Case IH 2555 (08-20) - HYDRAULIC MANIFOLD VALVE WITH 6.3 GPM DRUM LUBE FLOW (07) - HYDRAULICS

1986598C5

VALVE

Continued From Previous Page

1шт.

29

278548

PLUG,Hex, 7/16"-20 ORB

Incl 30

10шт.

30

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

31

9625178

PLUG,9/16" - 18 ORB

Incl. 32

3шт.

32

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

33

107419A1

PLUG

1шт.

34

87252C1

SOLENOID VALVE

Basket Door Raise

1шт.

35

87252C1

SOLENOID VALVE

Basket Door Lower

1шт.

35a

134169A1

ORIFICE

1шт.

36

87252C1

SOLENOID VALVE

Compactor Raise Tank

1шт.

37

87252C1

SOLENOID VALVE

Includes 37A, Compactor Lower Tank

1шт.

37a

149942C1

SEAL KIT

Seal Replacement, Not Illustrated

1шт.

38

149938C1

CHECK VALVE,7/8" - 14

Includes 38A

1шт.

38a

149942C1

SEAL KIT

Seal Replacement, Not Illustrated

1шт.

38b

226517A1

PORT

1шт.

1340843C1

SOLENOID,12V

Includes 1 - 9, 16 - 21, 34 - 37, 43, 44

1шт.

1986598C5

VALVE

Continued From Previous Page

1шт.

39

149938C1

CHECK VALVE,7/8" - 14

Includes 39A, Compactor

1шт.

39a

149942C1

SEAL KIT

Seal Replacement, Not Illustrated

1шт.

40

1340838C1

PILOT VALVE

Basket Lift, Directional Control

1шт.

41

1340838C1

PILOT VALVE

Includes 41A, Basket Lift

1шт.

41a

1341812C1

O-RING KIT

Seal Replacement, Not Illustrated

1шт.

42

107420A1

VALVE PRESSURE RELIE

1шт.

43

1288953C2

SOLENOID VALVE

Includes 43A, Basket Lower

1шт.

43a

1288954C1

SEAL KIT

Seal Replacement, Not Illustrated

1шт.

44

187849C1

SOLENOID VALVE

Includes 44A, Cartridge Only

1шт.

44a

187850C1

SEAL KIT

Seal Replacement, Not Illustrated

1шт.

45

107421A1

PLATE

2шт.

46

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 47

3шт.

47

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

48

S243647

COUPLING

Includes 49, 50, No Longer Available, Order 1541849C1

2шт.

49

H434163

DUST CAP

1шт.

50

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

52

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

2шт.

53

238-6110

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

1шт.

54

NSS

NOT SOLD SEPARAT

Stud

4шт.

55

95-11041

WASHER,3/8"

4шт.

56

129-139

NUT,3/8"-16, G8

4шт.

1541849C1

COUPLING

Diagnostic, Includes 57- 59

1шт.

57

NSS

NOT SOLD SEPARAT

Coupling, Not Illustrated

1шт.

58

H434163

DUST CAP

Not Illustrated

1шт.

1340843C1

SOLENOID,12V

Includes 1 - 9, 16 - 21, 34 - 37, 43, 44

1шт.

59

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Not Illustrated

1шт.
