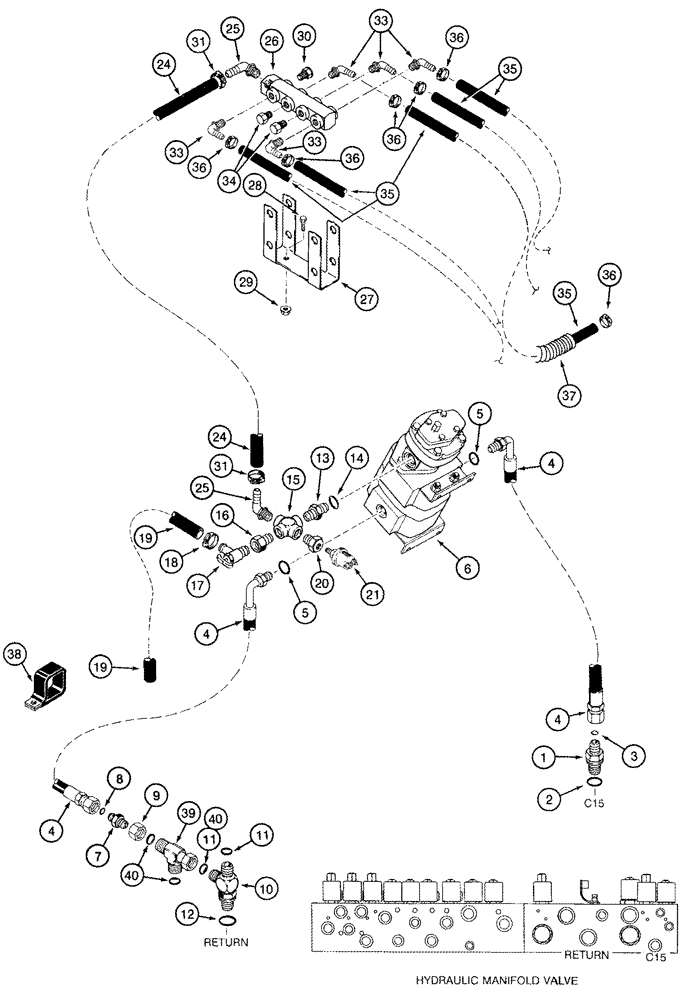

Запчасти Case IH 2555 (08-16) - DRUM BAR LUBRICATION PLUMBING SYSTEM -JJC0157275 (07) - HYDRAULICS

1

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes 2, 3

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

4

1988889C1

HOSE,12.7mm ID x 900mm L

900 mm (35-1/2 in)

2шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

6

1988896C2

PUMP, HYDRAULIC

Includes 6A, No Longer Available, Order 250706A1, See Page(s) 8-37

1шт.

250706A2R

REMAN-HYD PUMP

2555 (BEFORE S/N JJC0249499), Reman for New PN 1988896C2

1шт.

250706A2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

6a

197012A1

SEAL KIT

1шт.

7

201-143

REDUCER,11/16"-16 Male x 1 3/16"-16 Fem, ORFS

Includes 8

1шт.

8

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

9

203-904

TUBE NUT,1 3/16"-12 ORFS

1шт.

10

201-428

TEE,1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Return Port at Manifold Valve, Includes 11, 12, See Page(s) 8-107, REF 9

1шт.

11

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

12

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

13

218-5441

HYD CONNECTOR,7/8" - 14 ORB x 1/2" - 14 NPT

CONNECTOR , 7/8 Or x 1/2 PT, Includes 14

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

15

217-1203

4 WAY CONNECTION,Female, 1/2"-14

1шт.

16

217-44

REDUCER,1/2" - 14 NPT x 3/8" - 18 NPT

1шт.

17

301803R1

SHUT-OFF VALVE

Drain

1шт.

18

1954736C1

HOSE CLAMP,#24

1шт.

19

1347032C2

HOSE,15.75 mm ID x 1350.00 mm

1350 mm (53-1/8 in), Cut From 1977295CX

1шт.

20

221-87

REDUCER,1/2" NPT x 1/8" NPT

1шт.

21

1987419C1

PROBE

Bar Lube Pressure, See Page(s) 4-43, REF 42

1шт.

24

122468A1

HYDRAULIC HOSE

1600 mm (63 in), Pump Outlet, Cut From 122469A1

1шт.

25

122567A1

ELBOW

3/4 stem x 1/2 PT

2шт.

26

1546015C1

MANIFOLD

Grease

1шт.

27

1546016C1

SUPPORT

1шт.

28

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

29

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

30

37290D

LUBE NIPPLE,1/4"-18 NPT x 1.25" lg, But Hd

Special

1шт.

31

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

33

1546018C1

ELBOW

1/4 PT x 3/8 stem

4-5шт.

34

111491A1

PLUG

1/4 PT

2-3шт.

35

122466A1

HYDRAULIC HOSE

5080 mm (200 in), Drum Lube, Cut From 122467A1

4-5шт.

36

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

8-10шт.

37

1546371C1

PROTECTOR

4-5шт.

38

1301387C2

CLIP

2 in ID

2шт.

39

201-417

TEE,1-3/16" - 12 JIC x 1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS

Includes 40, See Page(s) 8-25, REF 19

1шт.

40

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.
