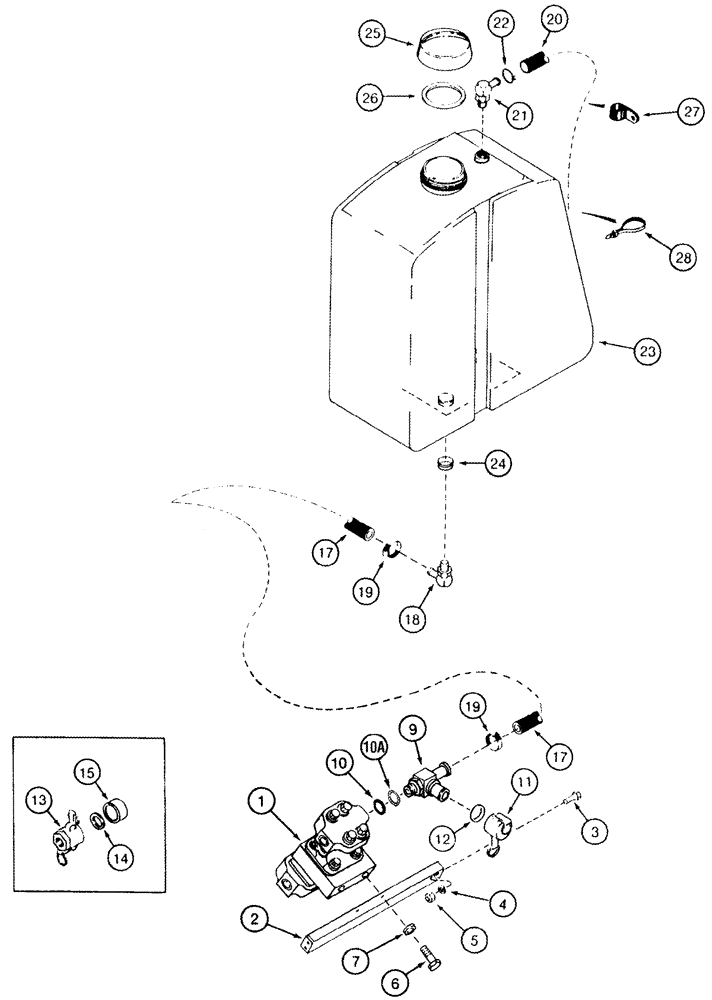

Запчасти Case IH 2555 (08-15) - DRUM BAR LUBRICATION RESERVOIR SYSTEM JJC0157275- (07) - HYDRAULICS

1

250706A1

PUMP, HYDRAULIC

1шт.

250706A2R

REMAN-HYD PUMP

2555 (BEFORE S/N JJC0249499), Reman for New PN 250706A1

1шт.

250706A2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

1988883C1

SUPPORT

1шт.

3

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

4

492-11031

LOCK WASHER,5/16"

4шт.

5

425-105

NUT,5/16"-18, G5

4шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

7

492-11038

LOCK WASHER,3/8"

2шт.

9

275822A1

FITTING

Special, Includes 10, 10A

1шт.

10

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

1шт.

10a

306803A1

RING

1шт.

11

118754A1

PLUG

Includes 12

1шт.

12

118757A1

GASKET

1шт.

13

118755A1

COUPLING

3/4 PT, Includes 14

1шт.

14

118757A1

GASKET

1шт.

15

118756A1

PLUG

Special

1шт.

17

118758A1

HYDRAULIC HOSE,25.40 mm ID x 1600.00 mm

Pump Inlet, Cut from 1990222C1

1шт.

18

134271C2

ELBOW,ELBOW, 90

1 stem x 3/4 PT

1шт.

19

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

2шт.

20

201763C2

HOSE,12.70 mm ID x 1371.60 mm

Tank Overflow, Cut From 665181R1

1шт.

21

1329210C1

ELBOW

1/2 stem x 3/4 PT

1шт.

22

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

1шт.

23

1984322C2

TANK, HYDRAULIC OIL

Includes 24 - 26

1шт.

24

1345186C1

FITTING

3/4 PT, 4 Piece

2шт.

25

1345185C1

CAP

Includes 26

1шт.

26

1345175C1

GASKET,115.1mm ID x 131.1mm OD x 3.8mm Thk

1шт.

27

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

28

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

2шт.
