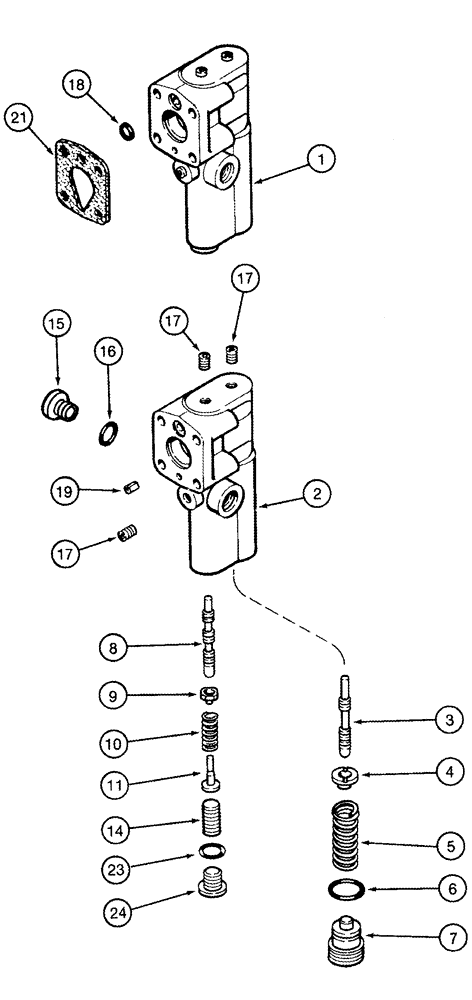

Запчасти Case IH 2555 (08-06) - HYDRAULIC PISTON PUMP COMPENSATOR (07) - HYDRAULICS

248303A1

PUMP, HYDRAULIC

Consists Of 1 - 24, See Page(s) 8-13 - 8-17

1шт.

1

1288981C1

EQUALIZER

Includes 2- 24

1шт.

2

NSS

NOT SOLD SEPARAT

Body

1шт.

3

NSS

NOT SOLD SEPARAT

Spool, Pressure Regulator

1шт.

4

NSS

NOT SOLD SEPARAT

Seat

1шт.

5

NSS

NOT SOLD SEPARAT

Spring

1шт.

6

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

7

NSS

NOT SOLD SEPARAT

Plug

1шт.

8

NSS

NOT SOLD SEPARAT

Spool

1шт.

9

NSS

NOT SOLD SEPARAT

Seat

1шт.

10

NSS

NOT SOLD SEPARAT

Spring

1шт.

11

NSS

NOT SOLD SEPARAT

Seat

1шт.

14

NSS

NOT SOLD SEPARAT

Screw

1шт.

15

NSS

NOT SOLD SEPARAT

Plug

1шт.

16

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

17

NSS

NOT SOLD SEPARAT

Plug

3шт.

18

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

19

NSS

NOT SOLD SEPARAT

Plug

1шт.

21

NSS

NOT SOLD SEPARAT

Gasket, Cover

1шт.

23

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

24

NSS

NOT SOLD SEPARAT

Plug

1шт.

1263244C2

PACKAGE

Includes O-Ring, seal, gasket, items 6, 16, 18, 21, 23, See Page(s) 8-15, 8-17

1шт.
