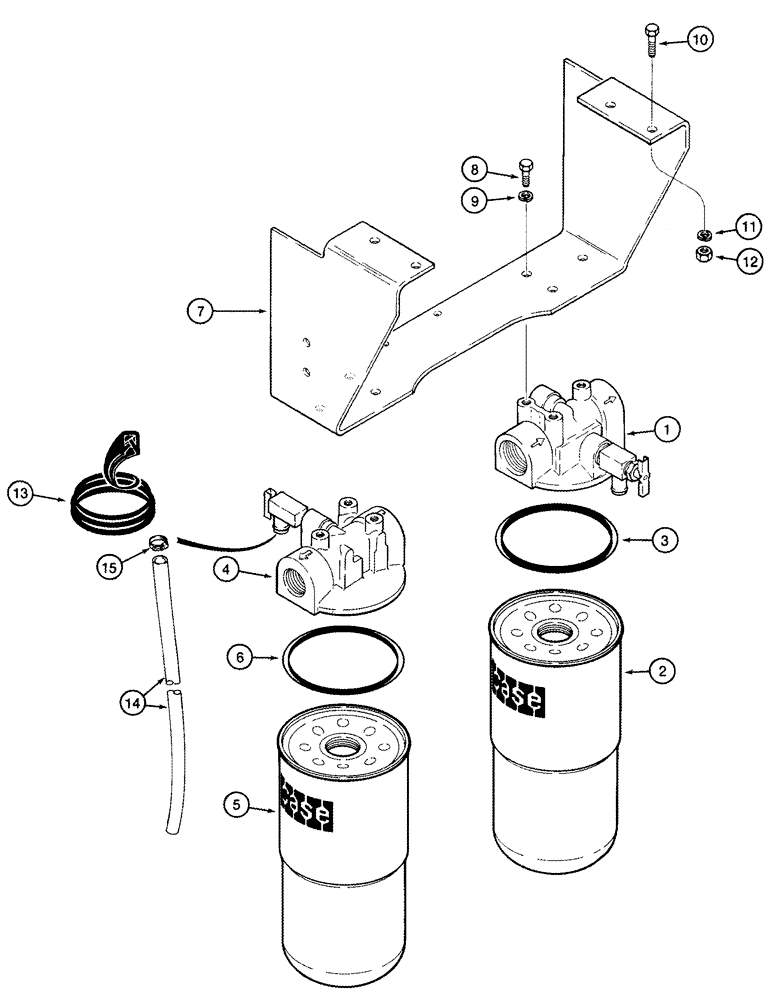

Запчасти Case IH 2555 (08-03) - HYDRAULIC FILTERS (07) - HYDRAULICS

87784C92

HYDRAULIC OIL FILTER

Hydraulic, Consists Of 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Head

1шт.

2

NSS

NOT SOLD SEPARAT

Element, Order 1329214C1

1шт.

3

93196C1

O-RING,0.139" Thk x 4.484" ID, -246, 75 Duro

1шт.

87784C92

HYDRAULIC OIL FILTER

Consists Of 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

Head

1шт.

5

NSS

NOT SOLD SEPARAT

Element, Order 1329214C1

1шт.

6

93196C1

O-RING,0.139" Thk x 4.484" ID, -246, 75 Duro

1шт.

7

1349918C2

SUPPORT

1шт.

8

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

6шт.

9

492-11038

LOCK WASHER,3/8"

6шт.

10

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

11

492-11038

LOCK WASHER,3/8"

4шт.

12

425-106

NUT,3/8"-16, Cl 5

4шт.

13

1327979C1

MOLDING

Cut From 1330108CX

1шт.

14

129096A1

HOSE

Reservoir Drain, 735 mm (29 in), Cut From 1977295CX

1шт.

15

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

1шт.

1329214C1

HYDRAULIC OIL FILTER

Filter Element, Consists Of 2, 3, 5, 6

1шт.
