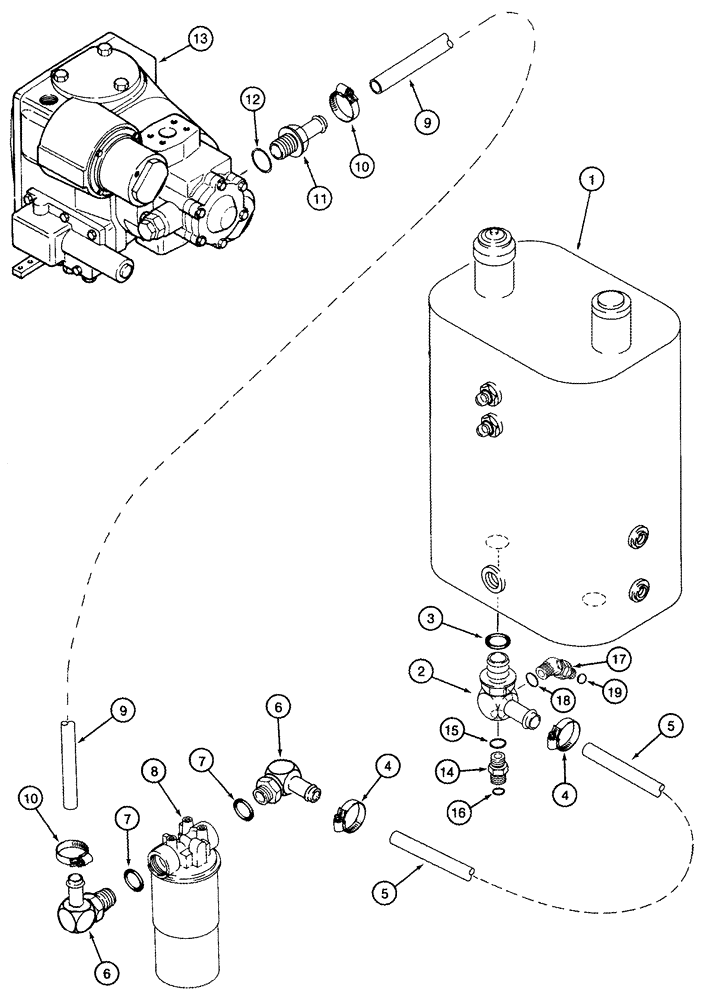

Запчасти Case IH 2555 (08-02) - HYDROSTATIC PUMP HYDRAULIC SYSTEM (07) - HYDRAULICS

*

Reservoir To Pump

1шт.

1

123413A3

TANK, HYDRAULIC OIL

Hydraulic Oil, See Figure 08-01

1шт.

2

198617A2

ELBOW

Special, Includes 3

1шт.

3

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

4

214-3232

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm, W/ Liner

2шт.

5

184618A1

FLEXIBLE HOSE

Cut From 1541953C1

1шт.

6

217-355

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

Includes 7

2шт.

7

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

8

87784C92

HYDRAULIC OIL FILTER

See Figure 08-03

1шт.

9

1988945C1

HOSE

1шт.

10

214-3232

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm, W/ Liner

2шт.

11

217-184

FITTING,1-1/4" Hose Barb x 1-5/16" - 12 Male ORB

Includes 12

1шт.

12

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

13

1986824C5

PUMP, HYDROSTATIC

HYDROSTATIC PUMP , See Page(s) 6-19 - 6-31

1шт.

13

1986824C5R

REMAN-HYDROSTAT PUMP

2555 CASE IH COTTON EXPRESS COTTON PICKER (BEFORE S/N JJC0249499), HYDROSTATIC PUMP, HYDRAULIC SYSTEM

1шт.

13

1986824C5C

CORE-HYDROSTAT PUMP

Return Number

1шт.

14

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

Includes 15, 16, See Page(s) 7-7, Ref. 35

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

16

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

17

201-316

ELBOW,45 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

Includes 18, 19, See Page(s) 8-11, REF 31

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

19

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.
