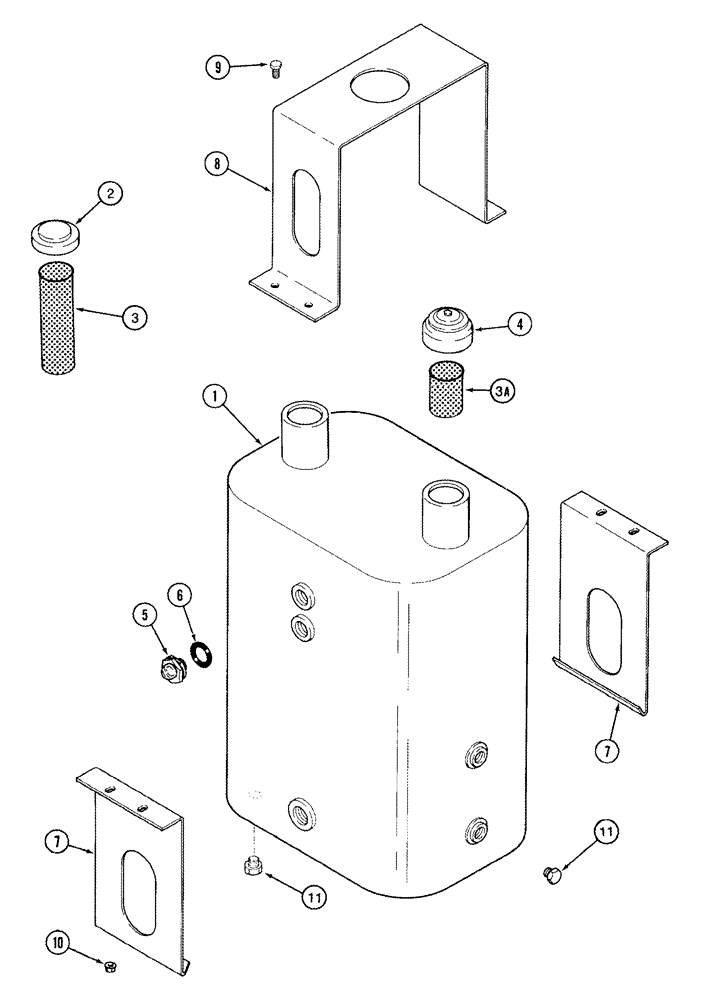

Запчасти Case IH 2555 (08-01) - HYDRAULIC RESERVOIR (07) - HYDRAULICS

123413A3

TANK, HYDRAULIC OIL

Inc. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

Tank

1шт.

2

1346309C2

FILLER CAP

Fill, Nonvented

1шт.

3

104407A1

SCREEN

Filter

2шт.

3a

191116A1

BAFFLE

Reservoir Breather

1шт.

4

1272941C2

BREATHER

1шт.

5

132865A1

SIGHTGLASS

Oil

2шт.

6

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

7

1979829C1

SUPPORT

2шт.

8

1347146C1

CLAMP

1шт.

9

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

11

217-411

PLUG,Hex Hd, 1/2" - 14 NPT

2шт.
