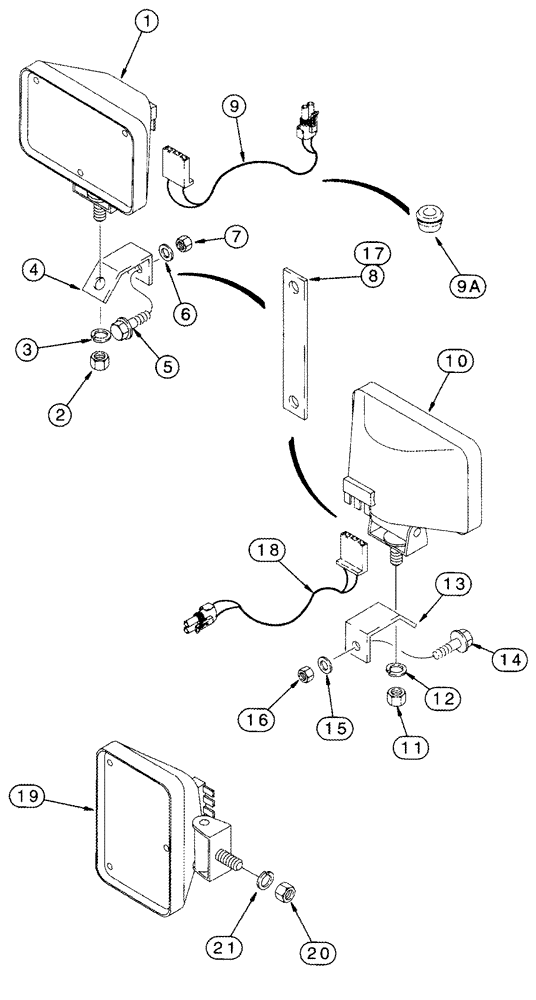

Запчасти Case IH 2555 (04-30) - LAMPS AND MOUNTING JJC0157150- (06) - ELECTRICAL SYSTEMS

Aftercut and Rear Lamp

1шт.

1

284718A1

LAMP,Halogen, 12V, 35W, Clear

Flood, Rear, Right Hand Aftercut, Left Hand Aftercut

3шт.

2

425-108

NUT,1/2" - 13, Gr 5

3шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

3шт.

4

284547A1

BRACKET

Rear Lamp

1шт.

5

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

1шт.

6

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

1шт.

7

231-5146

FLANGE NUT,3/8"-16

1шт.

8

284564A2

PLATE

Aftercut Lamp

2шт.

9

284730A1

HARNESS

Jumper, 2 Pin to 3 Pin

3шт.

9a

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

Rear Lamp

1шт.

Center Drum, Center Chute, Basket Door Lamp

1шт.

Left Mirror Lamp

1шт.

10

284719A1

LAMP,Halogen, 12V, 50W, Clear

Wide Flood, Center Drum, Center Chute, Left Front Basket Door, Left Mirror

4шт.

11

425-108

NUT,1/2" - 13, Gr 5

4шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

Center Drum, Center Chute, Basket Door Lamp

1шт.

Left Mirror Lamp

1шт.

13

284547A1

BRACKET

Center Drum Lamp

1шт.

14

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

1шт.

15

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

1шт.

16

231-5146

FLANGE NUT,3/8"-16

1шт.

17

284564A2

PLATE

Basket Door Lamp

1шт.

18

284730A1

HARNESS

Jumper, 2 Pin to 3 Pin

3шт.

Right Mirror Lamp

1шт.

19

284720A1

LAMP,Halogen, 12V, 50W, Clear

Trap Flood, Right Mirror Lamp

1шт.

20

425-108

NUT,1/2" - 13, Gr 5

1шт.

21

80679

LOCK WASHER,1/20.507 CST ZND

1шт.
