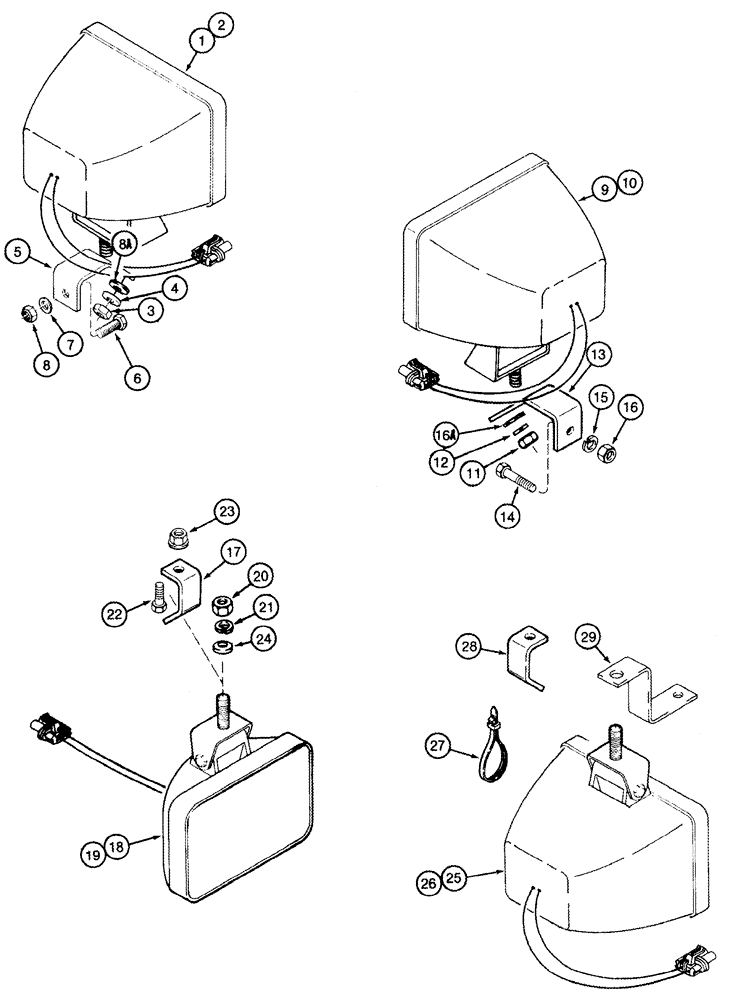

Запчасти Case IH 2555 (04-29) - LAMPS AND MOUNTING -JJC0157149 (06) - ELECTRICAL SYSTEMS

Basket Lamps

1шт.

1

185118A1

HEADLIGHT,12V, 37.5W

Basket, Includes 2, See Page(s) 4-31

2-3шт.

2

139119A1

BULB,#886, 12V, 50W

1шт.

3

425-105

NUT,5/16"-18, G5

3шт.

4

492-11031

LOCK WASHER,5/16"

3шт.

5

561915R1

BRACKET

2шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

7

492-11038

LOCK WASHER,3/8"

3шт.

8

425-106

NUT,3/8"-16, Cl 5

3шт.

8a

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

Conveyor and Rear Lamp

1шт.

9

185116A1

HEADLIGHT,12V, 37.5W

Conveyor, Rear, Includes 10, See Page(s) 4-37, 4-39, 4-43B

1-2шт.

10

139120A1

BULB

Type C-6, No. 894

1шт.

11

425-105

NUT,5/16"-18, G5

1шт.

12

492-11031

LOCK WASHER,5/16"

1шт.

13

561915R1

BRACKET

1-2шт.

14

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

15

492-11038

LOCK WASHER,3/8"

1шт.

16

425-106

NUT,3/8"-16, Cl 5

1шт.

16a

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

1шт.

16b

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

Drum Lamp

1шт.

17

561915R1

BRACKET

1шт.

18

185118A1

HEADLIGHT,12V, 37.5W

Drum, Includes 19, See Page(s) 4-41

1шт.

19

139119A1

BULB,#886, 12V, 50W

1шт.

20

425-105

NUT,5/16"-18, G5

1шт.

21

492-11031

LOCK WASHER,5/16"

1шт.

22

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

1шт.

23

231-5146

FLANGE NUT,3/8"-16

1шт.

24

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

1шт.

Flood Lamp

1шт.

25

185117A1

HEADLIGHT,12V, 37.5W

Flood, Includes 26, See Page(s) 4-5

2шт.

26

139120A1

BULB

Type C-6, No. 894

1шт.

27

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

6шт.

28

192703A2

SUPPORT

Mounting, Left Hand Front

1шт.

29

561915R1

BRACKET

Mounting, Right Hand Front

1шт.
