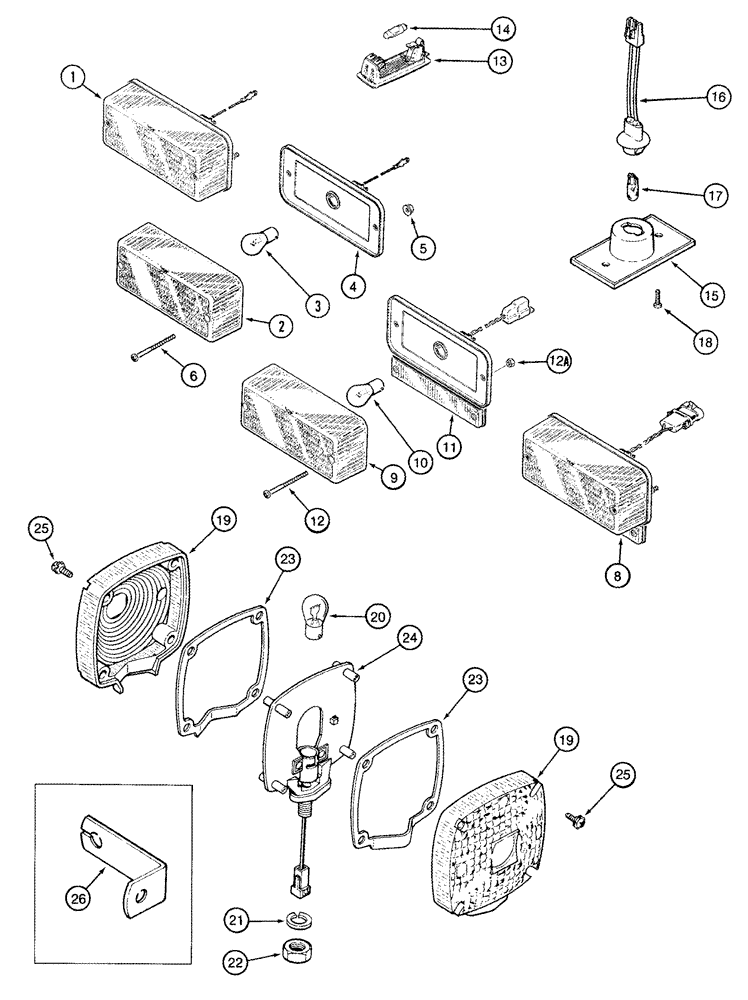

Запчасти Case IH 2555 (04-28) - LAMP ASSEMBLIES (06) - ELECTRICAL SYSTEMS

Rear Warning

1шт.

1

130882C91

LAMP

Rear, Inc. 2 - 4

4шт.

2

130883C1

LENS

Amber

1шт.

3

A41264

BULB,#1156, 12V

1шт.

4

NSS

NOT SOLD SEPARAT

Plate, Order 130882C91

1шт.

5

231-51409

SERRATED NUT,Flg, USR, #10-24

8шт.

6

440-11036

SCREW,Cross Pan Hd, #10-24 x 2 1/4"

Stop-Tail

8шт.

8

92260C1

LAMP,12V, 27W, Red

Stop-Tail, Includes 9 - 11

2шт.

9

216045C1

LENS

Red

1шт.

10

T34857

BULB,C6, #1157, 12.8V

1шт.

11

NSS

NOT SOLD SEPARAT

Plate, Order 92260C1

1шт.

12

440-11036

SCREW,Cross Pan Hd, #10-24 x 2 1/4"

4шт.

12a

231-51409

SERRATED NUT,Flg, USR, #10-24

Dome

4шт.

13

1983391C1

LAMP,12V, 10W

Dome, Inc. 14

2шт.

14

1094378R1

BULB,J, 12V, 2W

Bulb, Console

1шт.

83882C91

LAMP

Console, Inc. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

Lens, Order 83882C91

1шт.

16

107329C1

WIRE HARNESS

1шт.

17

D71346

TAIL LAMP,12V

1шт.

18

440-10812

SCREW,Cross Pan Hd, #8-32 x 3/4"

2шт.

Side Warning

1шт.

83885C91

LAMP

Side, Consists Of 19 - 25, Order 192051A1

2шт.

192051A1

SERVICE KIT

Warning Lamp, Not Illustrated

1шт.

19

199954A1

PACKAGE

Amber, Replaces 537012R1

2шт.

20

A14553

BULB

2шт.

21

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

22

425-108

NUT,1/2" - 13, Gr 5

1шт.

23

NSS

NOT SOLD SEPARAT

Seal, Rubber

2шт.

24

NSS

NOT SOLD SEPARAT

Body, Order 83885C91

1шт.

25

NSS

NOT SOLD SEPARAT

Screw

8шт.

26

1283289C1

ANGLE

Mounting, Side Warning Lamp Assembly

2шт.

Note: See page 9E-71 for mounting of lamp on rear view mirror bracket.

1шт.

Nota: Ver la página 9E-71 para el montaje de la lámpara en el soporte del espejo retrovisor.

1шт.

Nota: Para instruções de montagem da luz no suporte do retrovisor, veja a página 9E-71.

1шт.
