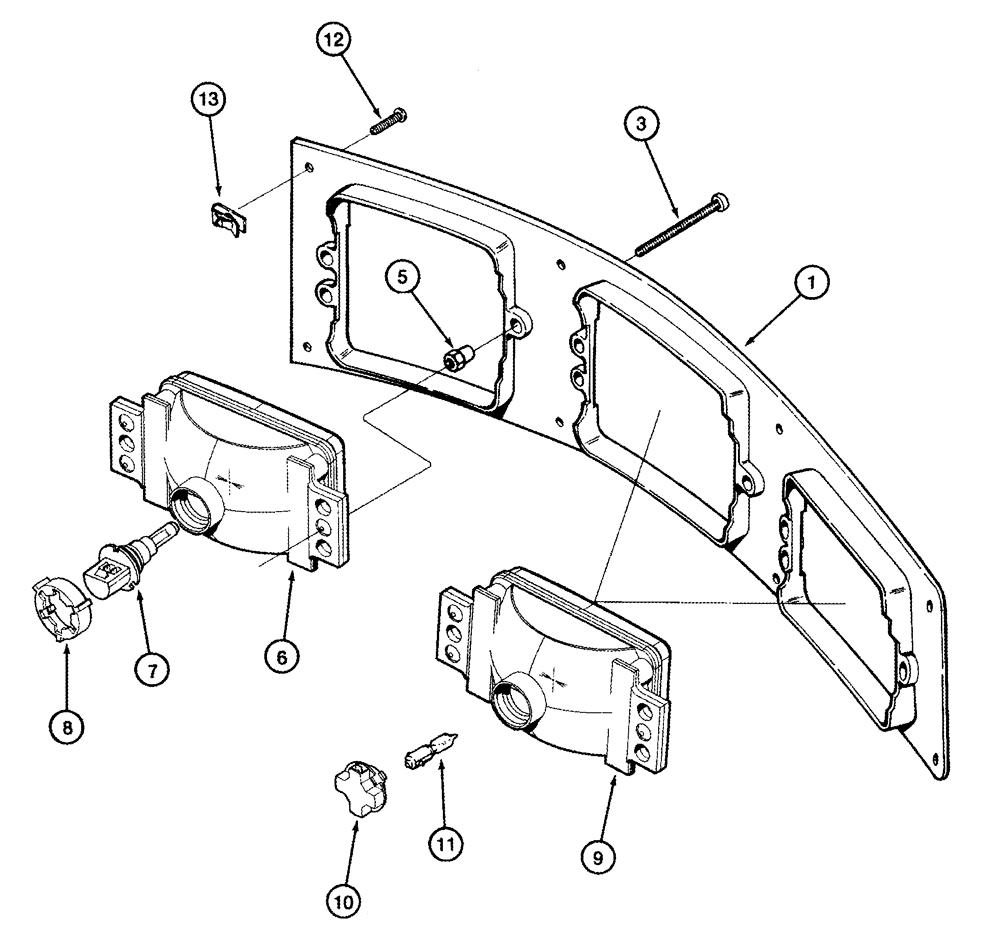

Запчасти Case IH 2555 (04-27) - LAMPS, DRIVE AND WORK - JJC0249298 (06) - ELECTRICAL SYSTEMS

1

137821A1

BEZEL

Lamp, RH

1шт.

2

137819A1

BEZEL

Lamp, LH, Not Illustrated

1шт.

3

137829A1

SCREW,Hex Rec Hd, #10 - 24 x 76.20mm

18шт.

5

137831A1

RETAINER

18шт.

6

138224A1

WORK LAMP

Drive, RH

1шт.

6a

183161A1

WORK LAMP

Drive, LH, Not Illustrated

1шт.

7

137823A1

BULB,#9004, 65W/50W

2шт.

8

137825A1

RETAINER COLLAR

2шт.

9

138225A1

WORK LAMP

RH

2шт.

9a

183162A1

WORK LAMP

LH, Not Illustrated

2шт.

10

137827A1

LAMP SOCKET

4шт.

11

137828A1

BULB

4шт.

12

260-16512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

16шт.

13

131-648

SPRING NUT,Tinn, U, #10-24

No. 10

16шт.
