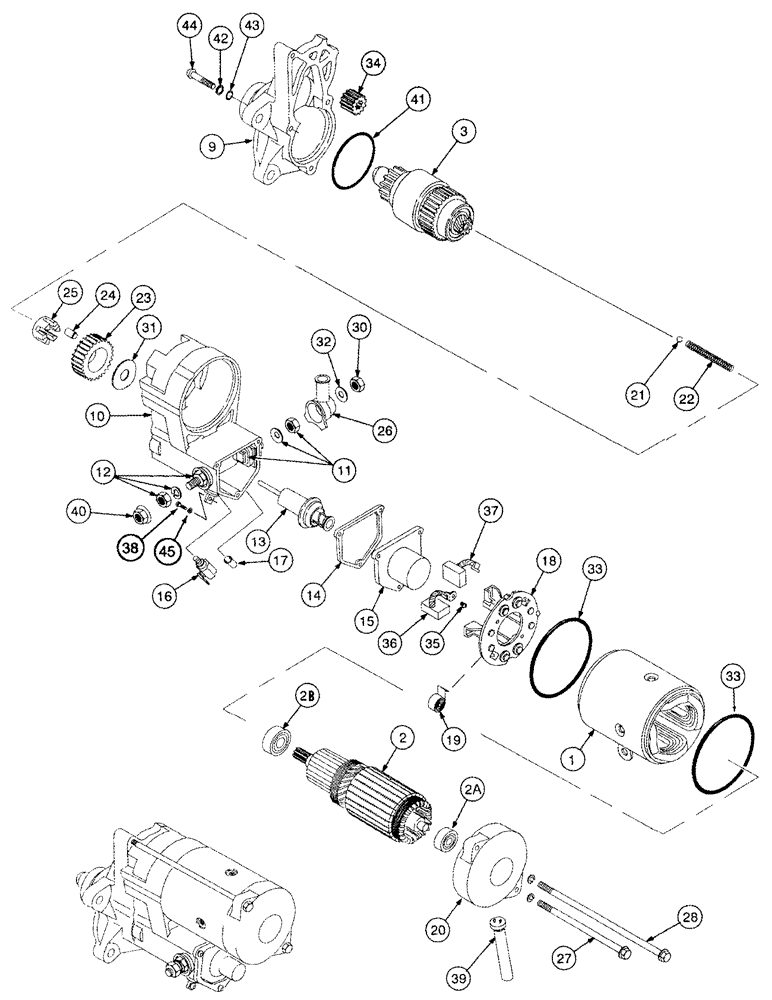

Запчасти Case IH 2555 (04-26) - STARTER ASSY JJC0157150- (06) - ELECTRICAL SYSTEMS

193432A1

STARTING MOTOR

Consists Of 1 - 45

1шт.

193432A1R

REMAN-STARTER

Remanufactured Starter

1шт.

193432A1C

MOTOR

Return Part Number

1шт.

193432A2R

REMAN-STARTER,12V, 4.8kW

Remanufactured Starter 12 Volt, 4.0 Kw

1шт.

193432A2C

CORE-STARTER,12V, 4.8kW

Return Part Number, Starter 12 Volt, 4.0 Kw

1шт.

1

258884A1

YOKE

1шт.

2

258885A1

ARMATURE

Includes 2A, 2B

1шт.

2a

452698C1

BALL BEARING,10mm ID x 30mm OD x 9mm W

1шт.

2b

A49800

BALL BEARING,15 mm ID x 35 mm OD x 11 mm

15 x 35 x 11 mm, Replaces 298254A1

1шт.

3

258840A1

CLUTCH ASSEMBLY

1шт.

9

258841A1

HOUSING

1шт.

10

258886A1

SOLENOID SWITCH

Magnetic, Includes 11 - 17

1шт.

11

258871A1

SERVICE KIT

1шт.

12

258869A1

MULTIPOLE CONNECTOR

1шт.

13

258874A1

PLUNGER

1шт.

14

NSS

NOT SOLD SEPARAT

Seal

1шт.

15

NSS

NOT SOLD SEPARAT

Cover

1шт.

16

258877A1

TERMINAL CONNECTOR

1шт.

17

141353A1

BUSHING

1шт.

18

A49806

BRUSH HOLDER

Includes 19

1шт.

19

NSS

NOT SOLD SEPARAT

Spring

4шт.

20

258880A1

COVER

1шт.

21

211-1311

BALL,11/32" Dia

200, CRS

1шт.

22

A47232

SPRING

2-13/16

1шт.

23

A49810

GEAR

1шт.

24

A47235

ROLLER BEARING

1шт.

25

A47236

RETAINER

1шт.

26

A49805

COVER

1шт.

27

104594A1

FLANGE BOLT

7 x 144 mm

1шт.

28

104593A1

FLANGE BOLT

7 x 206 mm

1шт.

30

829-1412

NUT,M12, Cl 10.9

1шт.

31

141360A1

WASHER

1шт.

32

892-11012

LOCK WASHER,M12

1шт.

33

A49812

SEAL

2шт.

34

A49809

PINION

1шт.

35

141361A1

CAPTIVE WASHER SCREW,M5 x 9.40mm

4шт.

36

A49807

COMMUTATOR BRUSH

2шт.

37

A49808

COMMUTATOR BRUSH

2шт.

38

258820A1

SCREW

1шт.

39

258883A1

BUSHING

1шт.

40

NSS

NOT SOLD SEPARAT

Nut

1шт.

41

1546500C1

SEAL,2.4mm Thk x 47.2mm ID

1шт.

A47230

BOLT

Consists Of 42 - 44

3шт.

42

495-81252

WASHER,#12

(Flat, 1/4" x 9/16" x 1/16")

1шт.

43

A47130

O-RING

1шт.

44

A47129

CAPTIVE WASHER SCREW

1шт.

45

892-11005

LOCK WASHER,M5

1шт.
