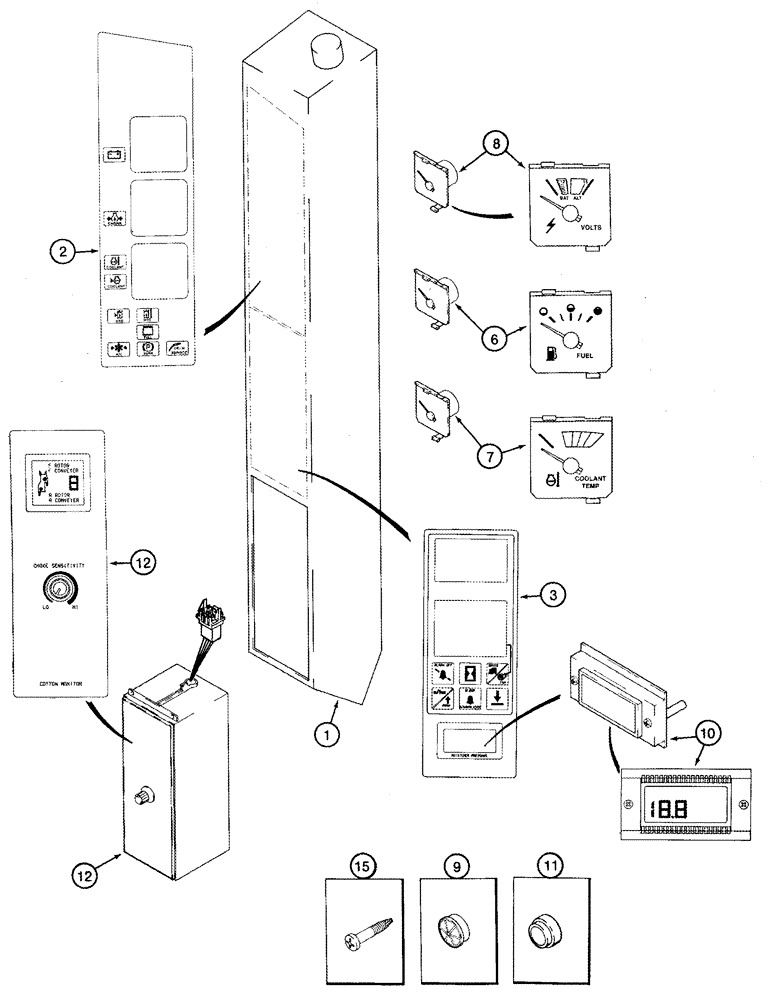

Запчасти Case IH 2555 (04-19) - INSTRUMENT PANEL ASSY (06) - ELECTRICAL SYSTEMS

235226A1

PANEL

Instrument, Not Available As An Assembly, Consists Of 1 - 13

1шт.

1

235225A1

CLUSTER, INSTR.

CLUSTER, INSTRUMENT , Includes 1 - 11

1шт.

2

238211A1

DECAL

Gauge And Warning

1шт.

3

123720A1

DECAL

Keypad

1шт.

4

A48888

BULB

Panel Display, Not Illustrated

1шт.

5

121615A1

LAMP SOCKET

Includes Bulb, Not Illustrated

1шт.

6

142825A1

FUEL GAUGE

Fuel Level

1шт.

7

142824A1

GAUGE

Coolant Temperature

1шт.

8

142828A1

VOLTMETER

Voltmeter

1шт.

9

195359A1

SHUTTER

Audible Warning Alarm

1шт.

10

123715A1

DISPLAY

Moistener Pressure

1шт.

11

1546441C1

BUZZER

Audible

1шт.

12

123808A2

CLUSTER, INSTR.

CLUSTER, INSTRUMENT , Cotton Display, Includes 13

1шт.

13

121615A1

LAMP SOCKET

Includes Bulb, Not Illustrated

1шт.

14

R53000

GROMMET

Not Illustrated

2шт.

15

260-13524

SELF-TAP SCREW,Phillips Drive, Pan HD, #10 - 16 x 1-1/2"

2шт.
