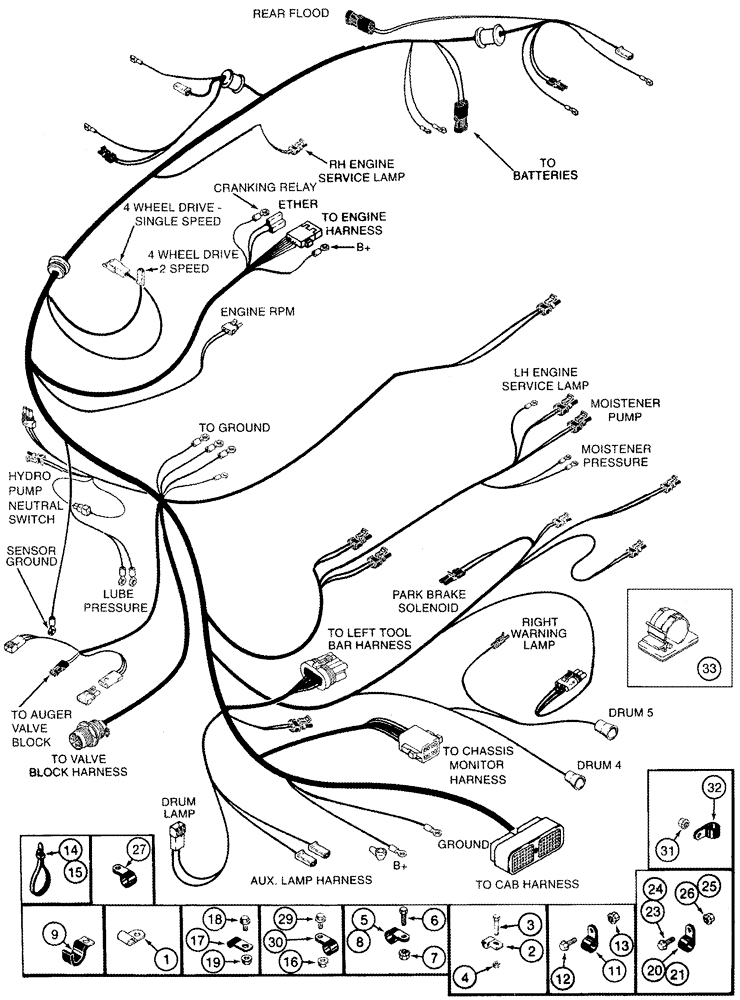

Запчасти Case IH 2555 (04-17) - HARNESS, CENTER TO REAR CLAMPS AND RETAINERS (06) - ELECTRICAL SYSTEMS

1

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

1шт.

2

299268C91

CLAMP

1шт.

3

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

4

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

5

515-25381

CLAMP,1 1/2", Insul, 1/2" Bolt

2шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

7

231-5146

FLANGE NUT,3/8"-16

4шт.

8

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

9

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

3шт.

11

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

12

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

15

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

1шт.

16

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

17

515-25317

CLAMP,1 1/4", Insul, 1/2" Bolt

1шт.

18

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

1шт.

19

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

1шт.

20

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

21

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

6шт.

23

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

3шт.

24

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

2шт.

25

9804279

FLANGE NUT,Hex, M12, Cl 8

2шт.

26

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

12шт.

27

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

2шт.

28

122150A1

PROTECTION STRIP

Cut From 1330108CX

1шт.

29

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

6шт.

30

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

11шт.

31

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

2шт.

32

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

33

245854A1

CLIP

Adhesive

1шт.
