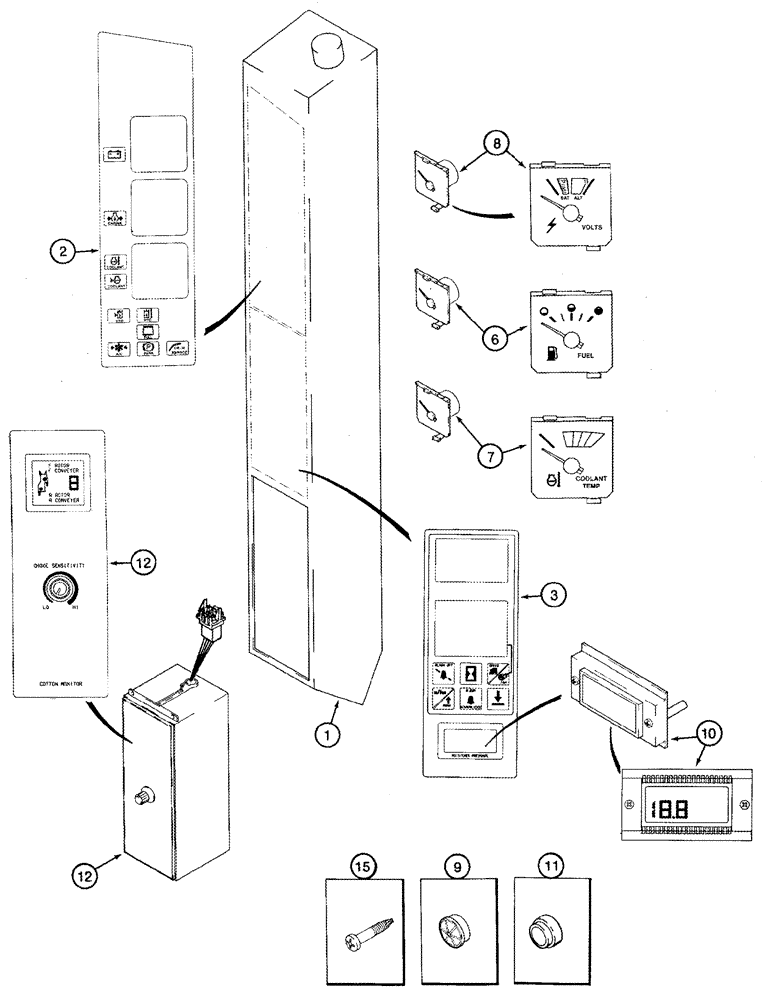

Запчасти Case IH 2555 (04-15) - INSTRUMENT PANEL ASSY (06) - ELECTRICAL SYSTEMS

235226A1

PANEL

INSTRUMENT PANEL ASSY, Not Available As An Assembly, Inc. 1 - 13

1шт.

1

235225A1

CLUSTER, INSTR.

CLUSTER, INSTRUMENT Inc. 1 - 11

1шт.

2

238211A1

DECAL

Gauge And Warning

1шт.

3

123720A1

DECAL

Keypad

1шт.

4

A48888

BULB

Pkg of 10, Panel Display, Not Illustrated

1шт.

5

121615A1

LAMP SOCKET

Inc. Bulb, Not Illustrated

1шт.

6

142825A1

FUEL GAUGE

Fuel Level

1шт.

7

142824A1

GAUGE

Coolant Temperature

1шт.

8

142828A1

VOLTMETER

Voltmeter

1шт.

9

195359A1

SHUTTER

Audible Warning Alarm

1шт.

10

123715A1

DISPLAY

Moistener Pressure

1шт.

11

1546441C1

BUZZER

Audible

1шт.

12

123808A2

CLUSTER, INSTR.

CLUSTER, INSTRUMENT Cotton Display, Inc. 13

1шт.

13

121615A1

LAMP SOCKET

Inc. Bulb, Not Illustrated

1шт.

14

R53000

GROMMET

Not Illustrated

2шт.

15

260-13524

SELF-TAP SCREW,Phillips Drive, Pan HD, #10 - 16 x 1-1/2"

2шт.
