Запчасти Case IH 2555 (04-13) - HARNESS, CENTER TO REAR - CLAMPS AND RETAINERS (06) - ELECTRICAL SYSTEMS

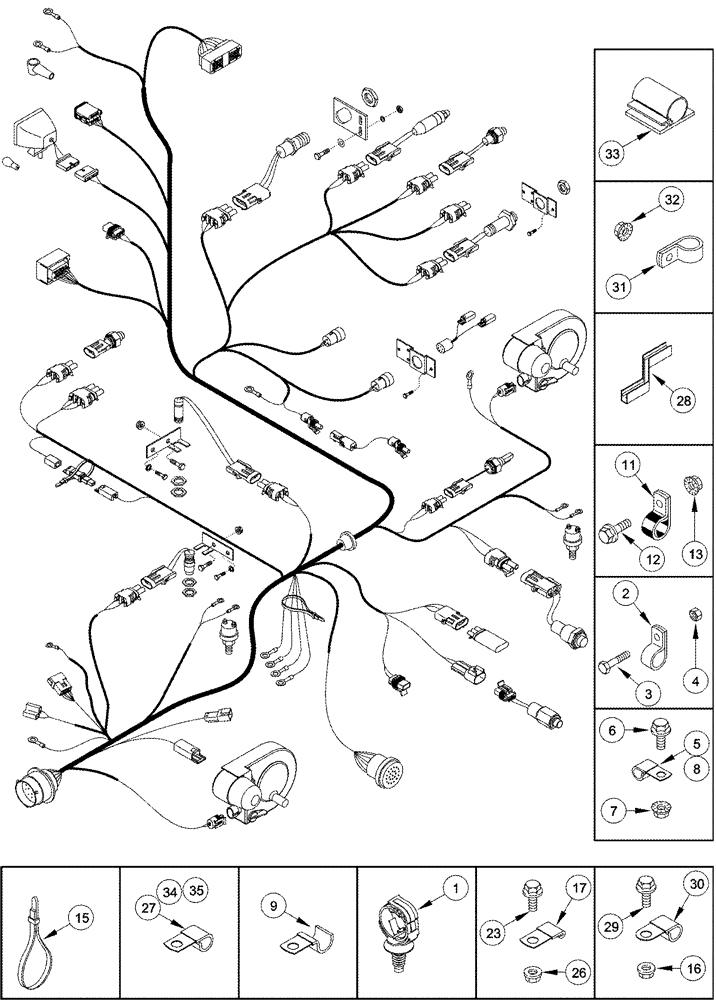

Схема запчастей Case IH 2555 - (04-13) - HARNESS, CENTER TO REAR - CLAMPS AND RETAINERS (06) - ELECTRICAL SYSTEMS
26
12
31
30
28
11
2
23
13
5
6
7
33
8
34
27
9
32
3
17
4
35
1
15
16
29

Артикул

Название

Примечание

Количество

1

1990594C1

CLIP

1шт.

2

299268C91

CLAMP

1шт.

4

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

5

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

2шт.

6

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

2шт.

7

231-5146

FLANGE NUT,3/8"-16

2шт.

8

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

9

516-2395

CLAMP,J, 7/16" Insul, 3/8" Bolt

3шт.

11

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

2шт.

12

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

15

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

14шт.

16

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

17

299269C91

CLAMP

1-1/4

1шт.

23

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

3шт.

26

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

12шт.

27

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

3шт.

28

122150A1

PROTECTION STRIP

179 mm (7 in), Cut From 1330108CX

1шт.

29

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

6шт.

30

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

6шт.

31

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

2шт.

32

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

33

245854A1

CLIP

Adhesive

1шт.

34

515-23254

CLAMP,1", Insul, 3/8" Bolt

3шт.

35

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

12шт.

3

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

Выбрано товаров: 26
