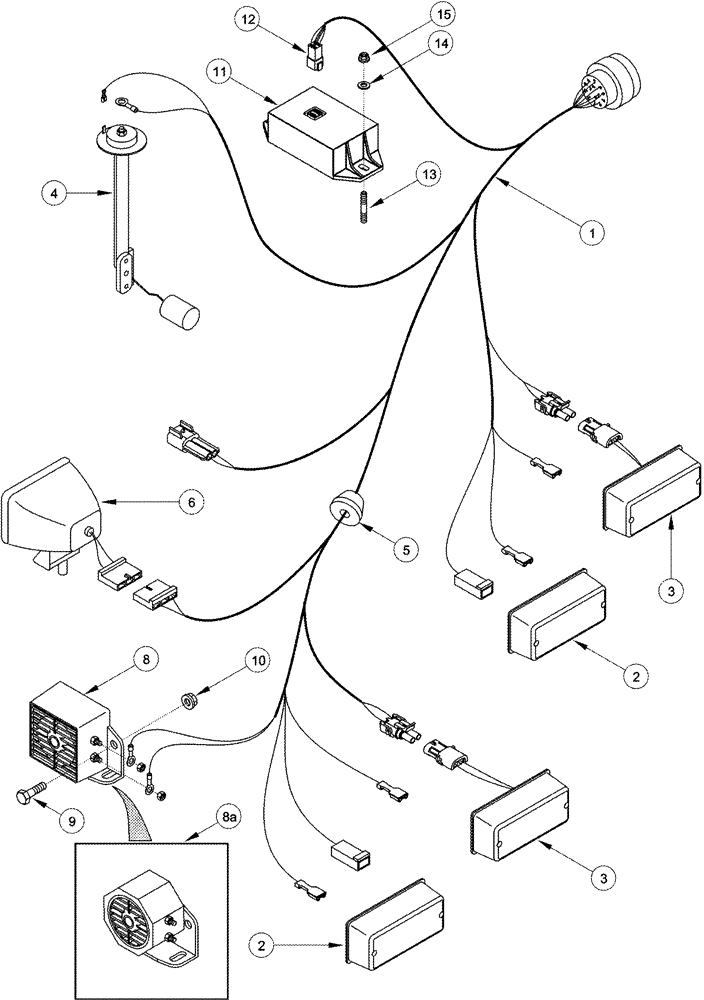

Запчасти Case IH 2555 (04-12) - HARNESS - REAR (06) - ELECTRICAL SYSTEMS

1

396110A1

HARNESS

1шт.

2

92260C1

LAMP,12V, 27W, Red

Stop And Tail Lamp

2шт.

3

130882C91

LAMP

Rear

2шт.

4

121810C1

ELECTRICAL GAUGE

Fuel Level

1шт.

5

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

1/2 ID

1шт.

6

284718A1

LAMP,Halogen, 12V, 35W, Clear

35W, Rear, Inc. 7, See Figure 04-26

1шт.

7

139119A1

BULB,#886, 12V, 50W

Not Illustrated

1шт.

8

L112318

ALARM

If Used

1шт.

8a

325258A1

ALARM

Backup Alarm, Basket Lower, If Used

1шт.

9

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

1/4 x 1/2; 8

2шт.

10

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

11

86561136

MODULE

Flasher, North and South America Only

1шт.

12

396377A1

MULTIPOLE CONNECTOR,6 Pin

Australia Only

1шт.

13

451-206

STUD

STUD No. 10 x 5/8

2шт.

14

495-31022

WASHER,#10

2шт.

15

231-52409

FLANGE NUT,Flg, USR, #10-32

2шт.
