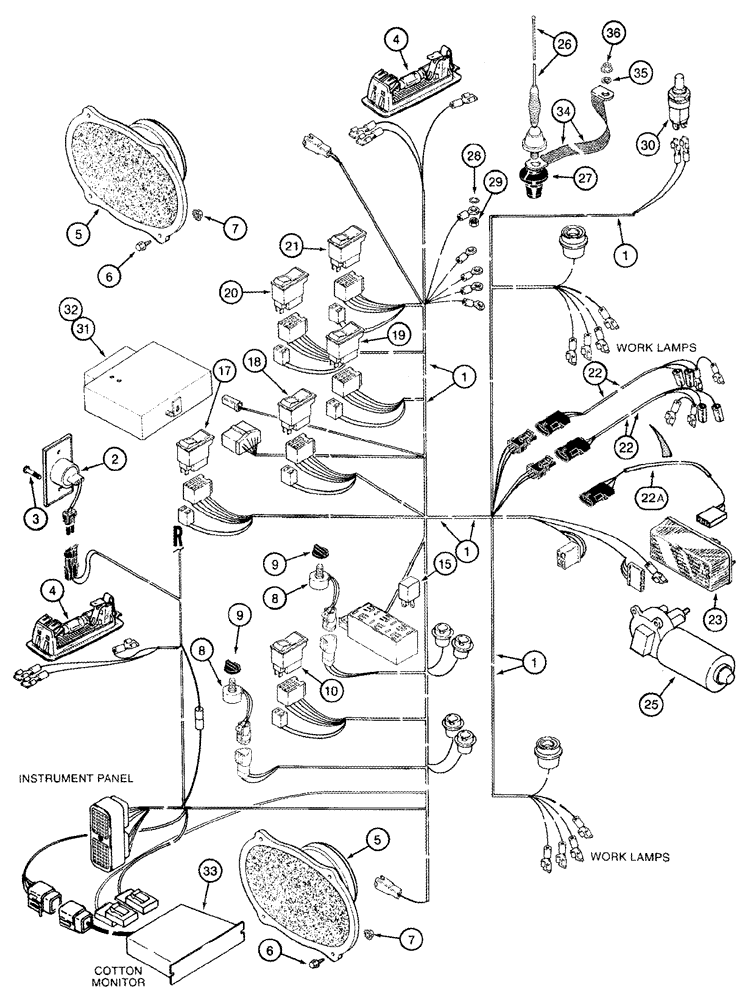

Запчасти Case IH 2555 (04-04) - HARNESS, CAB - OVERHEAD (06) - ELECTRICAL SYSTEMS

1

390401A2

HARNESS

Cab

1шт.

2

83882C91

LAMP

Console, See Figure 04-25

1шт.

3

440-10812

SCREW,Cross Pan Hd, #8-32 x 3/4"

2шт.

4

1983391C1

LAMP,12V, 10W

Dome, See Figure 04-25

2шт.

5

375389A1

SPEAKER

5-1/2

1шт.

6

281-53516

SELF-TAP SCREW,Hex Wash Hd, #10 x 1"

No. 10 x 1

8шт.

7

231-51409

SERRATED NUT,Flg, USR, #10-24

8шт.

8

114551A1

POTENTIOMETER,2500 Ohm, 500V

2шт.

9

1977521C1

BUTTON

2шт.

10

234997A1

SWITCH

Air Conditioning

1шт.

11

D71346

TAIL LAMP,12V

No. 168, Not Illustrated

4шт.

15

105849A1

RELAY

20 amp

4шт.

16

139641A2

DECAL

Heating and Air Conditioning, Not Illustrated, See Figure 09F-23

1шт.

17

141488A1

WINDSHIELD WIPER SWI

Wiper Control, Standard

1шт.

18

144160A1

SWITCH

Basket, Drum Lamp

1шт.

19

124095A1

LIGHT SWITCH

Lamp

1шт.

20

279263A1

FLASHER SWITCH

Hazard - Towing

1шт.

21

141430A1

SWITCH

Emergency Unload

1шт.

22

291407A2

HARNESS

Warning Lamp, Work Lamp, Serial Range: -JJC0249565

2шт.

22a

447525A1

HARNESS

Work Lamp, Start Serial: JJC0249565

1шт.

23

130882C91

LAMP

Warning, See Figure 04-25, Serial Range: -JJC0249565

2шт.

25

137608A1

WIPER MOTOR

MOTOR, WIPER Windshield Wiper Front, See Figure 04-27

1шт.

26

97080C1

ANTENNA

Radio

1шт.

27

R54547

GROMMET

1шт.

28

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

29

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

30

1983341C1

SWITCH

Door Jam

1шт.

31

141950A2

RADIO

AM-FM Stereo, Order From Ship Direct ZAE1000

1шт.

32

141951A2

RADIO

AM-FM Stereo, With Cassette Tape Player, Order From Ship Direct ZAE3000

1шт.

33

128361A1

CLUSTER, INSTR.

CLUSTER, INSTRUMENT Cotton Picker

1шт.

34

278032A1

GROUND STRAP

Ground Strap

1шт.

35

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

1шт.

36

825-51410

FLANGE NUT,M10, Flg Ser

1шт.
