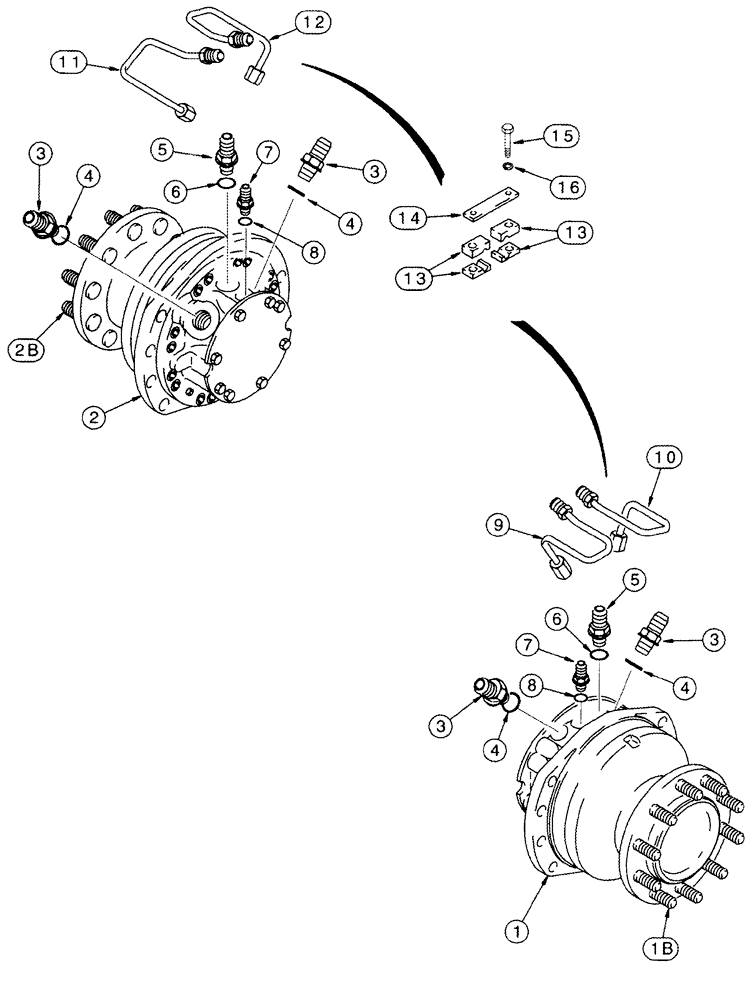

Запчасти Case IH 2555 (05-12) - WHEEL MOTOR PRESSURE SYSTEM (04) - STEERING

1

238767A1

MOTOR, HYDRAULIC

Wheel Drive, Right Hand, Inc. 1A, 1B, 1C

1шт.

1a

276886A1

SEAL KIT

Not Illustrated, If Used

1шт.

1a

305447A1

SEAL KIT

Not Illustrated, If Used

1шт.

1b

1970151C1

STUD

Wheel Mounting

10шт.

1c

305408A1

BALL BEARING,80mm ID x 140mm OD x 46mm W

Not Illustrated

1шт.

2

238768A1

MOTOR, HYDRAULIC

Wheel Drive, Left Hand, Inc. 2A, 2B, 2C

1шт.

2a

276886A1

SEAL KIT

Not Illustrated, If Used

1шт.

2a

305447A1

SEAL KIT

Not Illustrated, If Used

1шт.

2b

1970151C1

STUD

Wheel Mounting

10шт.

2c

305408A1

BALL BEARING,80mm ID x 140mm OD x 46mm W

Not Illustrated

1шт.

3

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 4

4шт.

4

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

5

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 6

2шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

Incl. 8

2шт.

9

238927A1

PIPE

Drive Motor, Right Hand Rear

1шт.

10

238929A1

PIPE

Drive Motor, Right Hand Front

1шт.

11

238930A1

PIPE

Drive Motor, Left Hand Rear

1шт.

12

238928A1

PIPE

Drive Motor, Left Hand Front

1шт.

13

1970148C1

CLAMP

Two Piece

8шт.

14

1970150C1

PLATE

2шт.

15

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

16

492-11031

LOCK WASHER,5/16"

4шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
