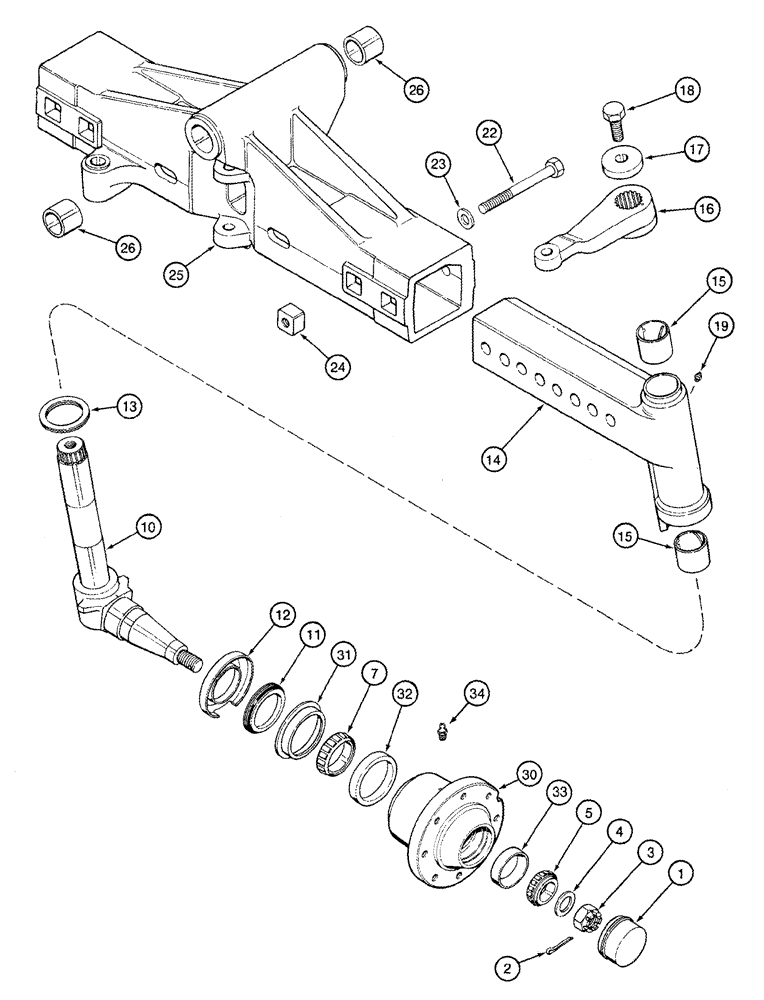

Запчасти Case IH 2555 (05-06) - AXLE, REAR (04) - STEERING

1

189425C1

HUB CAP

2шт.

2

732-6350

COTTER PIN,M6.3 x 50

2шт.

3

1259683C1

NUT

M30 - 1,5

2шт.

4

896-12030

WASHER,33mm ID x 56mm OD x 5mm Thk

33 x 56 x 5 mm

2шт.

5

130504H

ROLLER BEARING,42.887 mm ID x 25.48 mm

Outer

2шт.

7

ST753B

BEARING ASSY,66.67mm ID x 22mm W

Inner

2шт.

10

1259519C2

STEERING KNUCKLE

Front Wheel, Inc. 11, 12

2шт.

11

491641C1

SEAL

1шт.

12

1259522C1

SHIELD

1шт.

13

1270815C1

THRUST BEARING

2шт.

14

1264574C2

EXTENSION ASSY.

LH, Inc. 15, 4 Row Wide, 5 Row Narrow, Not Illustrated

1шт.

14

1264575C2

EXTENSION ASSY.

RH, Incl. 15, 4 Row Wide, 5 Row Narrow

1шт.

14

134097A2

EXTENSION

Left Hand, Right Hand, Inc. 15, 5 Row Wide, Not Illustrated

2шт.

15

1259518C1

BUSHING,63.53mm ID x 67.21mm OD x 50.8mm L

2шт.

16

1259526C2

ARM

Left Hand, Not Illustrated

1шт.

16

1259527C2

STEERING ARM

Right Hand

1шт.

17

1259669C2

WASHER

2шт.

18

614-20055

BOLT,Hex, M20 x 2.5 x 55mm, Cl 8.8, Full Thd

2шт.

19

219-17

LUBE NIPPLE,3/16" NPTF

4шт.

22

828-24200

BOLT,Hex, M24 x 3 x 200mm, Cl 10.9

4шт.

23

896-12024

WASHER,26mm ID x 44mm OD x 5mm Thk

26 x 44 x 5 mm

4шт.

24

1264635C1

NUT

4шт.

25

1289100C3

CENTER AXLE

Center, Inc. 26

1шт.

26

A177916

BUSHING,50.3mm ID x 64.96mm OD x 50mm L

2шт.

30

1259528C1

HUB

Rear Wheel, Inc. 31 - 33

2шт.

31

1264549C1

SEALING WASHER,106mm ID x 130mm OD x 1.6mm Thk

1шт.

32

29214H

BEARING CUP,110mm OD x 18.82mm W

4-5/16 OD, Inner

1шт.

33

130503H

BEARING CUP

3-17/64 OD, Outer

1шт.

34

219-404

LUBE NIPPLE,45 Degree Elbow, 3/16" NPTF

2шт.
