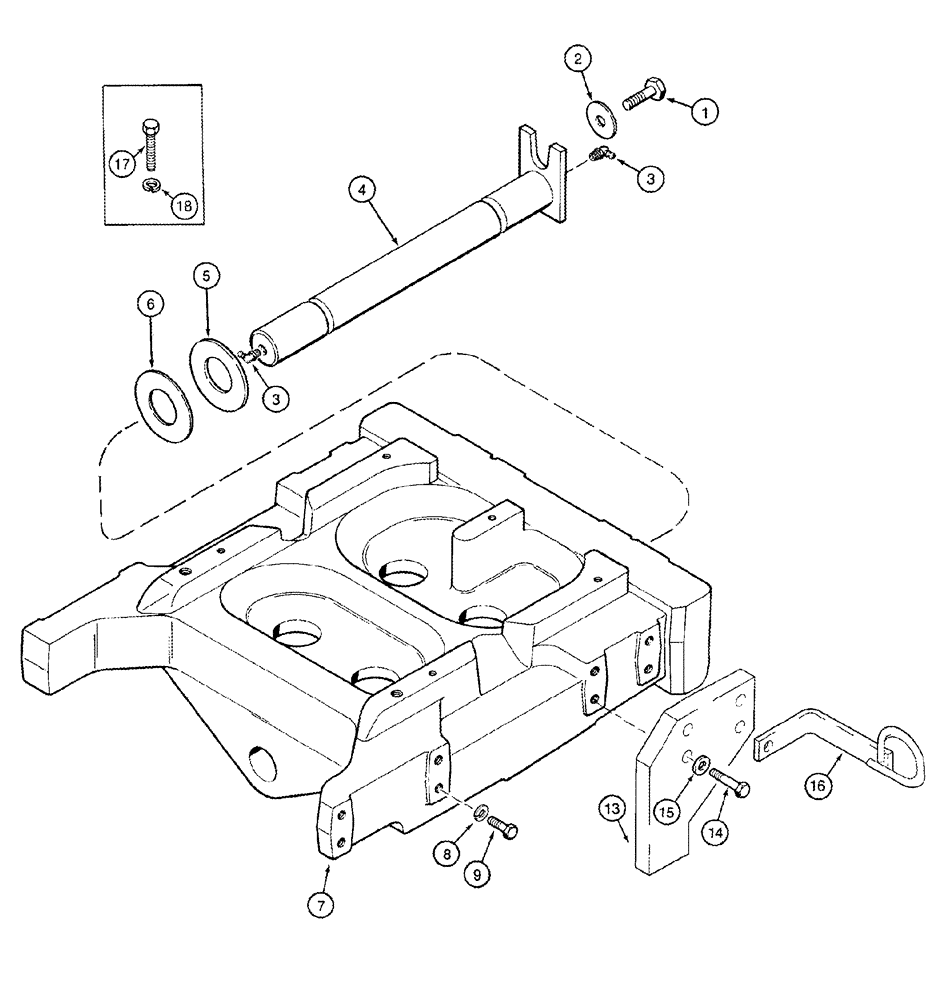

Запчасти Case IH 2555 (05-05) - AXLE, REAR - SUPPORT (04) - STEERING

1

805-12030

BOLT,Hex, M12 x 30mm, Cl 10.9

M12 x 30; 10.9

1шт.

2

101936C2

WASHER

1шт.

3

219-41

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

2шт.

4

1348230C1

PIVOT PIN,49.95mm OD x 530mm L

1шт.

5

A177855

SEALING WASHER,50.3mm ID x 90mm OD x 4.9mm Thk

2шт.

6

A177854

WASHER,50.3mm ID x 90mm OD x 1.6mm Thk

1шт.

7

137316A3

SUPPORT ASSY.

1шт.

8

892-16016

LOCK WASHER,M16, Hvy

M16

16шт.

9

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

8шт.

13

281484A1

LARGE PLATE

PLATE, LARGE Anti Sway, Without Power Guide Axle

2шт.

13

238749A1

LARGE PLATE

PLATE, LARGE Anti Sway, Power Guide Axle

2шт.

14

827-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

8шт.

15

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

16

259687A1

SUPPORT

Rear Hose Guide, Power Guide Axle

1шт.

17

626-20040

BOLT,Hex, M20 x 2.5 x 40mm, Cl 10.9, Full Thd

M20 x 40; 10.9

6шт.

18

892-16020

LOCK WASHER,M20, Hvy

M20

6шт.
