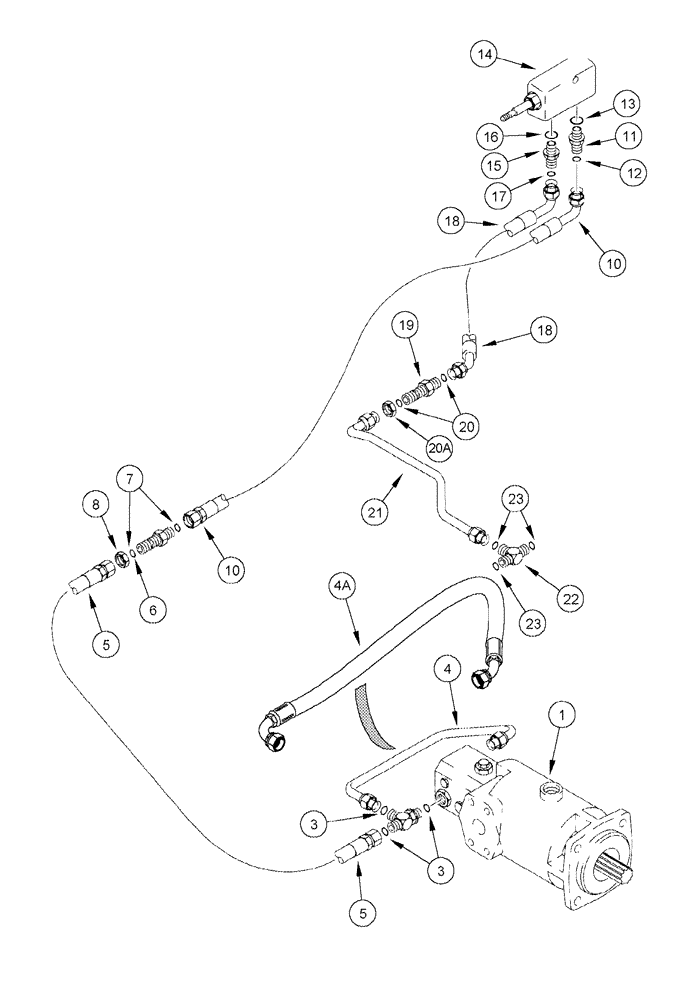

Запчасти Case IH 2555 (06-05) - HYDRAULICS - FOOT-N-INCH VALVE (03) - POWER TRAIN

1

400475A1

MOTOR, HYDRAULIC

See Figure(s) 06-13

1шт.

1

400475A2R

REMAN-HYD MOTOR

Reman For New PN 400475A1

1шт.

1

400475A2C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

201-421

TEE,9/16"-18 ORFS x 9/16"-18 Sw Run

Inc. 3

1шт.

3

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

4

184368A1

HYD TUBE,0.025" OD, 215.8 mm Length

Motor Relief Valve, Replaced By Hose 141127A3, Serial Range: -JJC0249565

1шт.

4a

141127A3

HOSE,6.35mm ID x 400mm L

400 mm (15-3/4 in), Replaces Tube 184368A1, Start Serial: JJC0249565

1шт.

5

187664A1

HOSE

125 mm (60 in), Supply

1шт.

6

201-108

HYD CONNECTOR,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS

Includes 7

1шт.

7

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

8

218-1254

LOCK NUT,Blkhd, 9/16"-18

1шт.

10

194911A1

HOSE

2050 mm (80-3/4 in), Supply

1шт.

11

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

9/16 fc x 7/16 Or, Inc. 12, 13

1шт.

12

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

13

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

14

296786A2

VALVE

6500 psi, Foot-N-Inch, See Figure 06-07

1шт.

15

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 16, 17

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

17

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

18

187661A2

HOSE

460 mm (18-1/8 in)

1шт.

19

201-120

HYD CONNECTOR,11/16"-16, Blkhd, ORFS

11/16 fc x blkhd fc, Inc. 20

1шт.

20

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

20b

201-909

BHD LOCK NUT,Blkhd, 11/16"-16

1шт.

21

184365A1

TUBE,0.375" OD, 315.8, 225 mm Length

Return

1шт.

22

201-415

TEE,1"-14 ORFS

Inc. 23

1шт.

23

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

24

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

1/2 ID, Not Illustrated

1шт.
