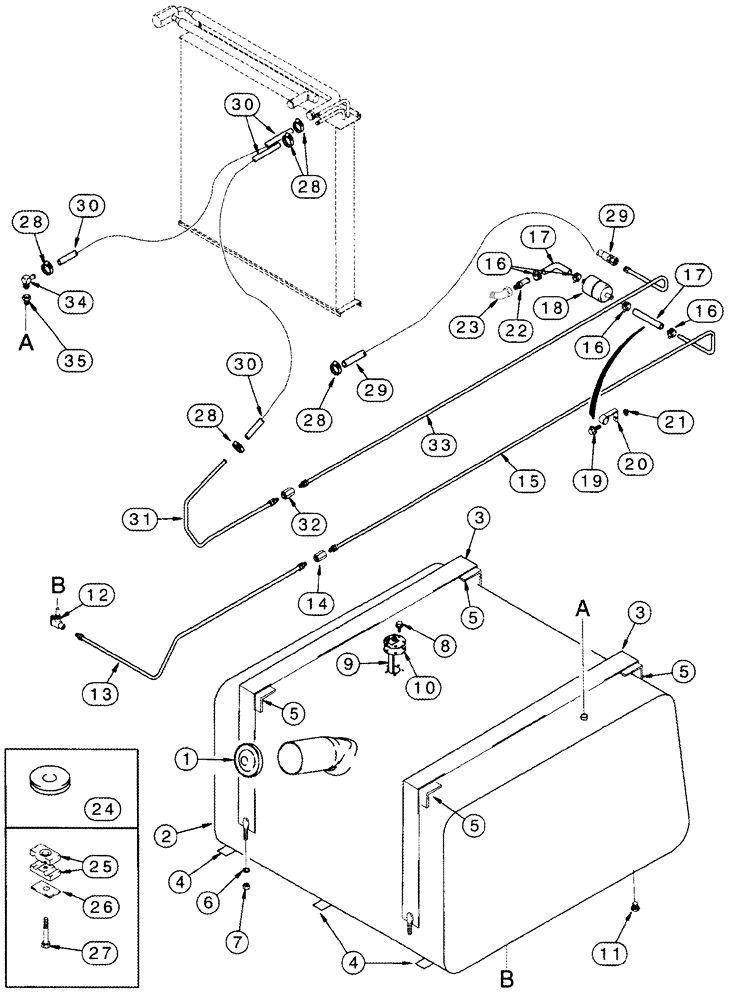

Запчасти Case IH 2555 (03-01) - FUEL TANK AND LINES (02) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
227115A1
FUEL TANK
150 gal, Inc. 1 - 2
1шт.
1
23995DC
FILLER CAP
1шт.
2
NSS
NOT SOLD SEPARAT
Tank
1шт.
3
227204A1
STRAP
2шт.
4
246550A1
FOAM
1229 mm (48-13/32 in), Cut From 73215C1
3шт.
5
666210R1
FIXING STRIP
229 mm (9 in), Cut From 990541R1
4шт.
6
492-11038
LOCK WASHER,3/8"
4шт.
7
425-106
NUT,3/8"-16, Cl 5
6шт.
8
1310675C1
CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"
5шт.
9
121810C1
ELECTRICAL GAUGE
Fuel Level
1шт.
10
168515C1
GASKET,3.05mm Thk
1шт.
11
217-434
PLUG,Hex Soc, 3/8" - 18 NPTF
3/8 PT
1шт.
12
390069R91
SHUT-OFF VALVE
1шт.
13
240665A1
PIPE
Fuel Supply, Rear
1шт.
14
222-1055
HYD CONNECTOR,3/8" Inv Fl
5/8 inv fl
1шт.
15
240666A2
PIPE
Fuel Supply, Front
1шт.
17
258266A1
FUEL HOSE,9.92 mm ID x 105.00 mm, SAE 30R7
Fuel Supply
2шт.
18
D139225
FILTER, FUEL
1шт.
19
409-7512
BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl
1шт.
21
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
1шт.
22
217-125
FITTING,3/8" Hose Barb x 1/4" Male NPTF
3/8 barb x 1/4 PT
1шт.
23
217-16
ELBOW,45 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male
1/4 PT x fem PT
1шт.
24
198823C1
GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk
3/8 ID
1шт.
25
1546024C1
CLAMP
2 piece
3шт.
26
1347127C1
PLATE
3шт.
27
413-522
BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5
5/16 x 1-3/8
3шт.
28
214-1704
HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm
5шт.
29
1988963C1
HOSE
935 mm (36-13/16 in), Fuel Return
1шт.
30
193624A2
FUEL HOSE,9.53 mm ID x 770.00 mm, SAE 30R2
Fuel Return
2шт.
31
226521A1
FUEL TUBE
Fuel Return, Rear
1шт.
32
222-1055
HYD CONNECTOR,3/8" Inv Fl
5/8 inv fl
1шт.
33
248693A1
FUEL TUBE,0.375" OD, 1560, 173 mm Length
Fuel Return, Front
1шт.
34
217-132
90 ELBOW,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF
1шт.
35
217-42
REDUCER,3/8" - 18 NPT x 1/4" - 18 NPT
1шт.
36
183822C1
CLAMP
5/8, Not Illustrated
2шт.
Выбрано товаров: 37
