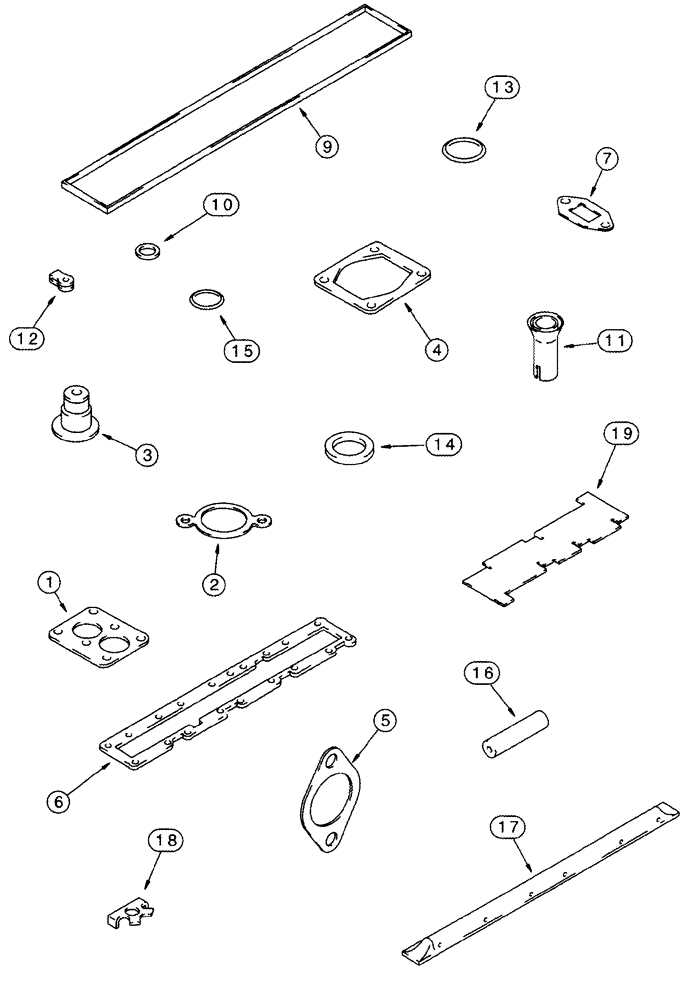

Запчасти Case IH 2555 (02-24) - GASKET KIT - VALVE GRIND (01) - ENGINE

A77976

GASKET KIT

Inc 1 - 19

1шт.

1

J914310

GASKET,0.8mm Thk

1шт.

2

J918779

GASKET,1.19mm Thk

1шт.

3

J927642

SEAL

12шт.

4

J911941

GASKET

1шт.

5

J932063

MANIFOLD GASKET,1.78mm Thk

6шт.

6

J914311

MANIFOLD GASKET

Not Used In This Application

1шт.

7

J937706

GASKET,0.79mm Thk

1шт.

9

J905449

SEAL,7.179mm W x 2090mm L

1шт.

10

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

6шт.

11

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

6шт.

12

J903380

SEAL

7шт.

13

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

14

J923261

WASHER,7.2mm ID x 15mm OD x 2.5mm Thk

2,5 mm

6шт.

15

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

1шт.

16

J930827

HOSE,51.00 mm

Not Used In This Application

1шт.

17

J919677

TUBE

1шт.

18

J914708

LOCKING PLATE

12шт.

19

J823921

GAUGE

1шт.
