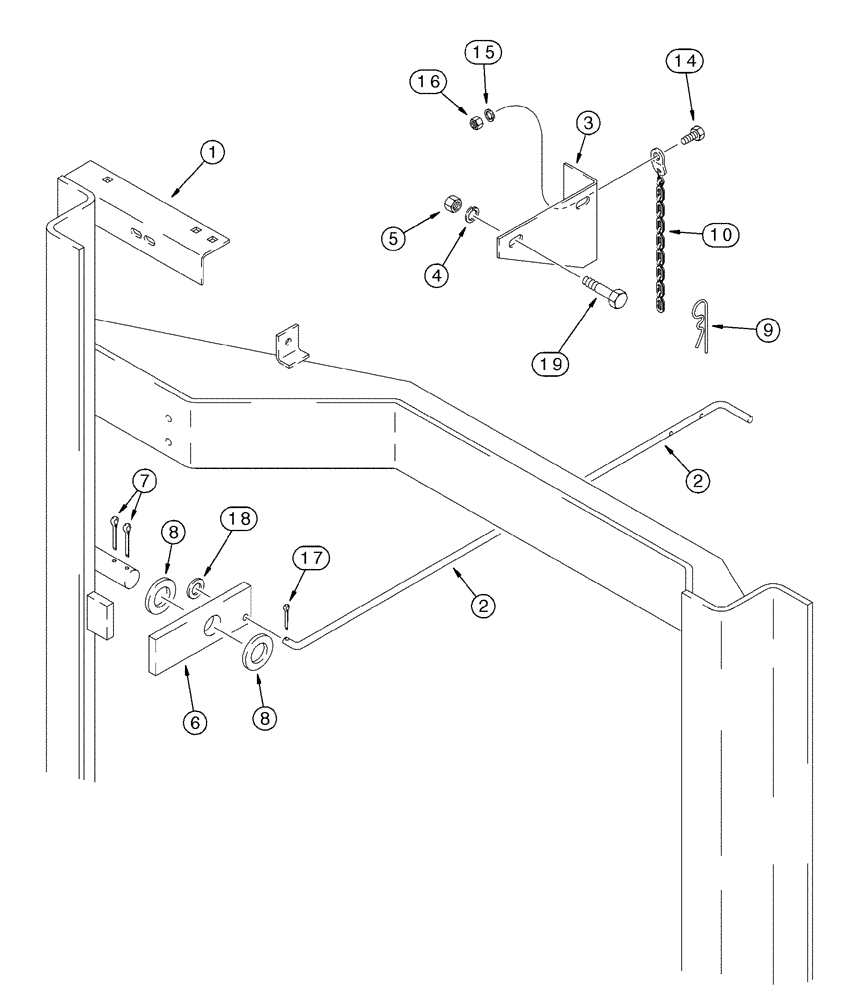

Запчасти Case IH 2555 (09D-19) - FRONT BASKET LOCK (16) - BASKET

1

1349869C4

FRAME

Mast, Basket

1шт.

2

177136A3

ROD

1шт.

3

177137A1

SUPPORT

1шт.

4

492-11038

LOCK WASHER,3/8"

2шт.

5

425-106

NUT,3/8"-16, Cl 5

2шт.

6

1270025C2

LARGE PLATE

PLATE, LARGE

1шт.

7

432-1228

COTTER PIN,3/16" x 1 3/4"

2шт.

8

495-81190

WASHER,1.16" ID x 1.75" OD x 0.12" Thk

1-5/32 x 1-3/4 x 1/8

2шт.

9

586591R1

COTTER PIN

1/8

1шт.

10

87509C2

CHAIN (AG)

1шт.

14

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

15

492-11025

LOCK WASHER,1/4"

1шт.

16

425-104

NUT,1/4"-20, Cl 5

1шт.

17

432-612

COTTER PIN,3/32" x 3/4"

1шт.

18

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

1шт.

19

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.
