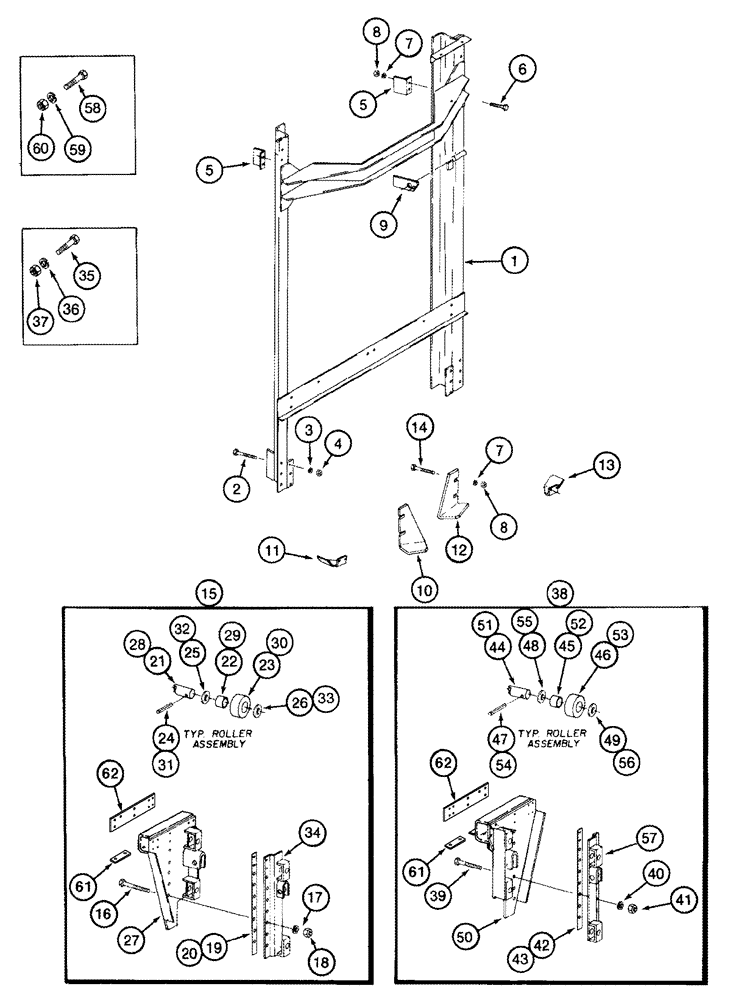

Запчасти Case IH 2555 (09D-18) - BASKET, LIFT - FRONT AND REAR (16) - BASKET
№
Артикул
Название
Примечание
Количество
1
1349869C4
FRAME
Mast, Front
2шт.
1
1345022C4
FRAME
Mast, Rear
2шт.
2
426-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8
2шт.
3
80679
LOCK WASHER,1/20.507 CST ZND
24шт.
4
429-108
NUT,1/2"-13, G8
1/2; 8
12шт.
5
1278638C1
SUPPORT
Upper Stop
4шт.
6
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
8шт.
7
492-11038
LOCK WASHER,3/8"
4шт.
8
425-106
NUT,3/8"-16, Cl 5
4шт.
9
REF
INSTRUCTION
Bar, Basket Lock, Front And Rear
2шт.
See Figures 09D-19, 09D-20
1шт.
10
1345223C1
DEFLECTOR
Front Corner, Left Hand
1шт.
11
1288804C1
DEFLECTOR
Rear Corner, Left Hand
1шт.
12
1288805C1
DEFLECTOR
Rear Corner, Right Hand
1шт.
13
1345224C1
DEFLECTOR
Front Corner, Right Hand
1шт.
14
413-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
4шт.
15
379058A3
ROLLER ASSY.
Left Hand, Inc. 16 - 34, Not Available As An Assembly, Order Components 16 - 34
2шт.
16
426-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 8
5/8 x 2; 8
7шт.
17
492-11062
BEARING WASHER,5/8"
7шт.
18
429-1010
NUT,5/8"-11, G8
7шт.
19
1266357C1
SHIM
1/32 in
1шт.
20
1266358C1
SHIM
1/16 in
1шт.
379056A3
SUPPORT
Basket, Left Hand, Inc. 21 - 27
1шт.
21
1260150C2
SHAFT
3шт.
22
1270038C1
BUSHING,25.44mm ID x 28.64mm OD x 25.15mm L
3шт.
23
1260135C1
ROLL
3шт.
24
38-31232
PIN,4.75mm OD x 50.8mm L
3/16" x 2", Coiled
3шт.
25
495-81191
WASHER,1 5/32" x 2" x .060"
1-5/32 x 2 x 3/64
6шт.
26
495-11106
WASHER,1", SAE
(1-1/16 x 2 x 1/8")
3шт.
27
248324A1
SUPPORT ASSY.
1шт.
379054A3
SUPPORT
Roller Carriage, Left Hand, Inc. 28 - 34
1шт.
28
1260150C2
SHAFT
3шт.
29
1270038C1
BUSHING,25.44mm ID x 28.64mm OD x 25.15mm L
3шт.
30
1260135C1
ROLL
3шт.
31
38-31232
PIN,4.75mm OD x 50.8mm L
3/16" x 2", Coiled
3шт.
32
495-81191
WASHER,1 5/32" x 2" x .060"
1-5/32 x 2 x 3/64
6шт.
33
495-11106
WASHER,1", SAE
(1-1/16 x 2 x 1/8")
3шт.
34
248322A1
SUPPORT ASSY.
1шт.
35
426-872
BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8
12шт.
35
426-680
BOLT,Hex, 3/8" - 16 x 5", Gr 8
3/8 x 5; 8
8шт.
35
426-672
BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 8
3/8 x 4-1/2; 8
16шт.
36
80679
LOCK WASHER,1/20.507 CST ZND
12шт.
36
492-11038
LOCK WASHER,3/8"
36шт.
37
429-108
NUT,1/2"-13, G8
1/2; 8
12шт.
37
429-106
NUT,3/8"-16, G8
3/8; 8
36шт.
38
379057A3
ROLLER ASSY.
Roller Carriage, Right Hand, Inc. 39 - 57, Not Available As An Assembly, Order Components 39 - 57
2шт.
39
426-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 8
5/8 x 2; 8
7шт.
40
492-11062
BEARING WASHER,5/8"
7шт.
41
429-1010
NUT,5/8"-11, G8
7шт.
42
1266357C1
SHIM
1/32 in
1шт.
43
1266358C1
SHIM
1/16 in
1шт.
379055A3
SUPPORT
Basket, Right Hand, Inc. 44 - 50
1шт.
44
1260150C2
SHAFT
3шт.
45
1270038C1
BUSHING,25.44mm ID x 28.64mm OD x 25.15mm L
3шт.
46
1260135C1
ROLL
3шт.
47
38-31232
PIN,4.75mm OD x 50.8mm L
3/16" x 2", Coiled
3шт.
48
495-81191
WASHER,1 5/32" x 2" x .060"
1-5/32 x 2 x 3/64
6шт.
49
495-11106
WASHER,1", SAE
(1-1/16 x 2 x 1/8")
3шт.
50
379053A3
SUPPORT
1шт.
248325A1
SUPPORT ASSY.
Roller Carriage, Right Hand, Inc. 51 - 57
1шт.
51
1260150C2
SHAFT
3шт.
52
1270038C1
BUSHING,25.44mm ID x 28.64mm OD x 25.15mm L
3шт.
53
1260135C1
ROLL
3шт.
54
38-31232
PIN,4.75mm OD x 50.8mm L
3/16" x 2", Coiled
3шт.
55
495-81191
WASHER,1 5/32" x 2" x .060"
1-5/32 x 2 x 3/64
6шт.
56
495-11106
WASHER,1", SAE
(1-1/16 x 2 x 1/8")
3шт.
57
248323A1
SUPPORT
1шт.
58
426-872
BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8
12шт.
58
426-680
BOLT,Hex, 3/8" - 16 x 5", Gr 8
3/8 x 5; 8
8шт.
58
426-672
BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 8
3/8 x 4-1/2; 8
16шт.
58
426-680
BOLT,Hex, 3/8" - 16 x 5", Gr 8
3/8 x 5; 8
8шт.
59
80679
LOCK WASHER,1/20.507 CST ZND
12шт.
59
492-11038
LOCK WASHER,3/8"
56шт.
60
429-108
NUT,1/2"-13, G8
1/2; 8
12шт.
60
429-106
NUT,3/8"-16, G8
3/8; 8
24шт.
61
326807A1
LARGE PLATE
PLATE, LARGE Spacer, Carriage Rollers
4шт.
62
313504A1
LARGE PLATE
PLATE, LARGE Filler, Front Carriage Rollers
4шт.
