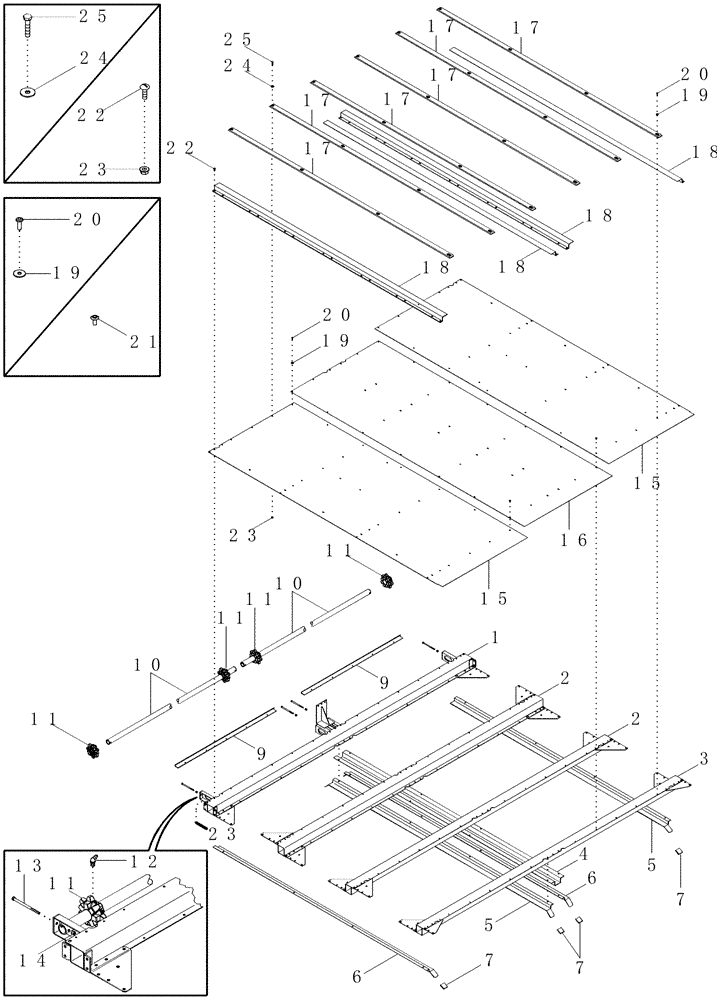

Запчасти Case IH 2555 (09D-13A) - BASKET, FLOOR - ASN JFG010001 (16) - BASKET

1

323628A1

STRUT

Floor Right Hand

1шт.

2

407915A1

STRUT

Floor Center

2шт.

3

407916A1

STRUT

Floor Left Hand

1шт.

4

1278058C1

SUPPORT

1шт.

5

1339113C1

ANGLE

Chain Support, Lower Rear

2шт.

6

1339112C1

ANGLE

Chain Support, Lower Front

2шт.

7

277514A1

GRIP

4шт.

8

345-192

Adhesive. Loctite 414

4шт.

9

426599A1

ANGLE

Floor Guard

2шт.

10

1260354C2

TUBE,48.26 mm OD, 1628 mm Length

Idler Adjustment

2шт.

11

1270109C1

SPROCKET ASSY.

7 Tooth

4шт.

12

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

13

1262728C2

BOLT,Hex, 3/8" x 6"

Idler Take-up

4шт.

14

231-1446

NUT,3/8" - 16, Gr 5

4шт.

15

322585A2

SHEET

Basket Floor

2шт.

16

322586A1

SHEET

Basket Floor, Center

1шт.

17

314632A2

SLIDE

Basket Floor Slats

6шт.

18

251287A1

ANGLE

Chain Guide

4шт.

19

495-81107

WASHER,.281" x 7/8" x .060"

9/32 x 7/8 x 1/16

28шт.

20

375677A1

RIVET

1/4

12шт.

21

375676A1

RIVET,Pop, 6.42mm OD x 24.64mm L

1/4

34шт.

22

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

5/16 x 1

46шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

46шт.

25

231-1444

NUT,1/4"-20, GB

16шт.

24

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

16шт.
