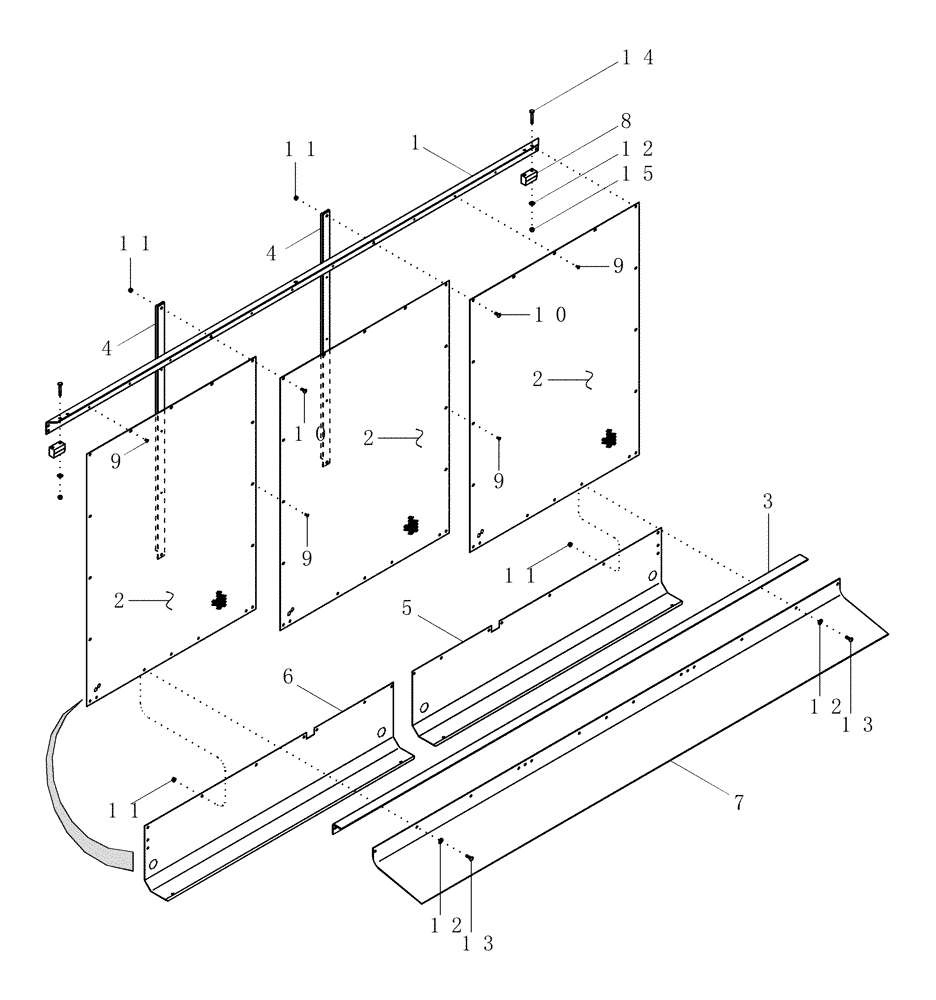

Запчасти Case IH 2555 (09D-12A) - BASKET, RIGHT HAND SIDE - ASN JFG010001 (16) - BASKET

1

87434334

ANGLE

Right Hand Wall Upper

1шт.

2

87434335

SHEET

Right Hand Wall

3шт.

3

87434336

SHEET

Right Hand Wall Lower

1шт.

4

284349A1

ANGLE

Vertical Upright

2шт.

5

87434337

SHIELD

SHIELD Unloader Chain Rear

1шт.

6

87434338

SHIELD

SHIELD Unloader Chain Front

1шт.

7

87434339

RUBBER

FLAP Rear Wall

1шт.

8

222680A2

GUIDE

Wearstrip

2шт.

9

375676A1

RIVET,Pop, 6.42mm OD x 24.64mm L

1/4

15шт.

11

231-5146

FLANGE NUT,3/8"-16

21шт.

12

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

19шт.

13

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

3/8 x 1-1/4

12шт.

14

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

15

231-1446

NUT,3/8" - 16, Gr 5

4шт.

16

375676A1

RIVET,Pop, 6.42mm OD x 24.64mm L

1/4

6шт.

17

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

3/8 x 1-1/4

3шт.

18

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

4шт.

10

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

2шт.
