Запчасти Case IH 2555 (09D-12) - BASKET, RIGHT HAND SIDE - BSN JFG010001 (16) - BASKET

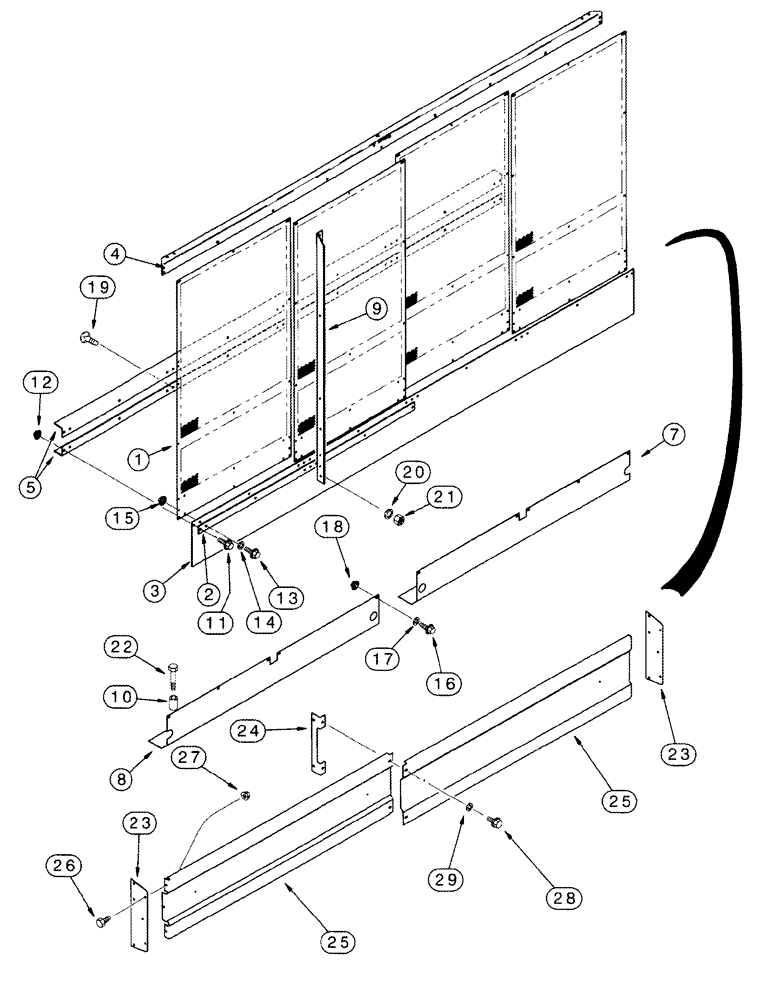

Схема запчастей Case IH 2555 - (09D-12) - BASKET, RIGHT HAND SIDE - BSN JFG010001 (16) - BASKET
29
7
22
26
13
9
18
17
2
5
25
1
20
14
15
27
24
8
23
16
28
10
21
25
19
23
12
3
4
11

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Basket, Complete, Inc. 1 - 29

1шт.

1

235113A2

SIEVE

Screen

4шт.

2

1262487C2

LINKAGE

Retainer

2шт.

3

1262488C2

FIXING STRIP

Rubber

1шт.

4

220575A3

ANGLE BAR

Horizontal Upright

1шт.

5

1270023C2

ANGLE

Screen

2шт.

7

1278543C3

GUARD

Unloader, Right Hand Front

1шт.

8

1278544C3

GUARD

Unloader, Right Hand Rear

1шт.

9

220574A1

ANGLE BAR

Vertical Upright

3шт.

10

21367R1

SPACER,1/4" Pipe x 2 1/2"

1/4 x 2-1/2

4шт.

11

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

14шт.

12

231-5146

FLANGE NUT,3/8"-16

14шт.

13

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

64шт.

14

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

64шт.

15

231-5146

FLANGE NUT,3/8"-16

64шт.

16

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

3шт.

17

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

3шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

7шт.

19

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

20шт.

20

492-11038

LOCK WASHER,3/8"

20шт.

21

425-106

NUT,3/8"-16, Cl 5

20шт.

22

413-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

5/16 x 3-1/4

4шт.

23

1278767C1

LARGE PLATE

PLATE, LARGE Channel

2шт.

24

1278768C1

SUPPORT

Center

1шт.

25

1278766C2

CONDUIT

Side

2шт.

26

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 x 3/4

8шт.

27

231-5146

FLANGE NUT,3/8"-16

8шт.

28

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

29

495-81119

WASHER,8.74mm ID x 31.75mm OD x 1.7mm Thk

11/32 x 1-1/4 x 1/16

2шт.

Выбрано товаров: 29
