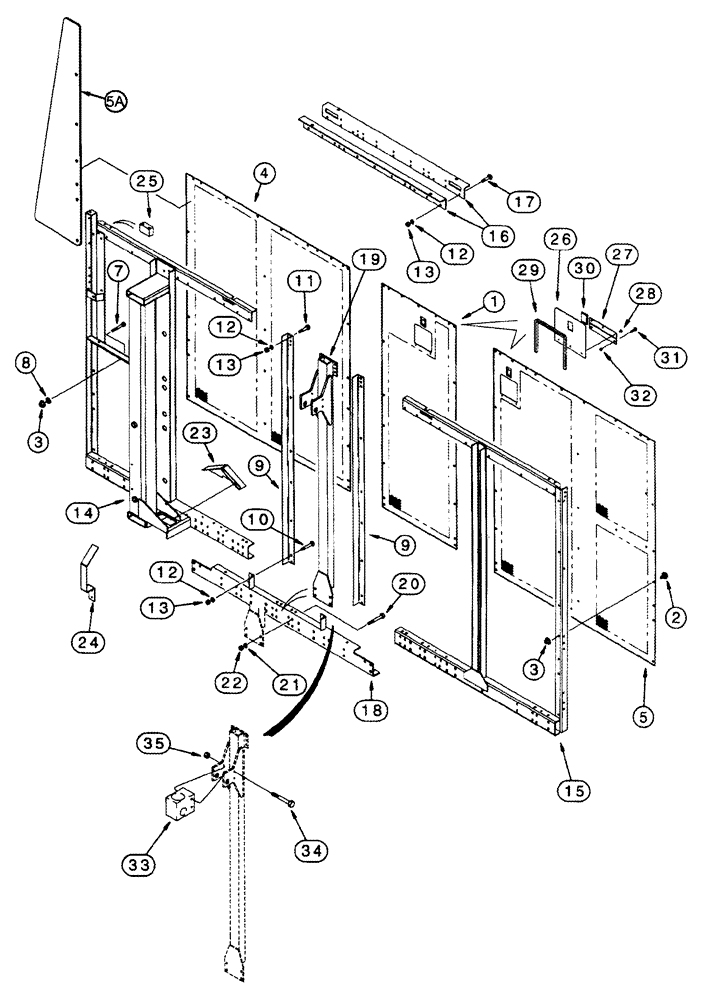

Запчасти Case IH 2555 (09D-11) - BASKET, REAR WALL - BSN JFG010001 (16) - BASKET

REF

INSTRUCTION

Basket, Complete, Inc. 1 - 35

1шт.

1

244597A2

COVER

Screen, Center

1шт.

2

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

1шт.

3

231-5146

FLANGE NUT,3/8"-16

1шт.

4

244595A2

COVER

Screen, Left Hand

1шт.

5

244596A3

COVER

Screen, Right Hand

1шт.

5a

316379A1

FLAP

Basket Door, Side

1шт.

6

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4, Not Illustrated

1шт.

6a

488837C1

SPRING NUT

5/16, Not Illustrated

1шт.

7

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

8

495-81143

WASHER,13/32" x 1 1/2" x .120"

1шт.

9

1260162C1

SUPPORT

2шт.

10

433-632

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

1шт.

11

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

1шт.

12

492-11038

LOCK WASHER,3/8"

1шт.

13

425-106

NUT,3/8"-16, Cl 5

1шт.

14

231818A5

END

Left Hand

1шт.

15

231820A4

END

Right Hand

1шт.

16

231823A3

ANGLE BAR

Tie

2шт.

17

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

18

1260318C3

CONDUIT

Tie

1шт.

19

246970A3

SUPPORT

Basket Lift

1шт.

20

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

1шт.

21

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

22

425-108

NUT,1/2" - 13, Gr 5

1шт.

23

1988661C1

GUARD

Rear, If Used

1шт.

24

1984211C1

GUIDE

Basket Door, Lower Inner

1шт.

25

222680A2

GUIDE

Basket Door, Upper Corner

8шт.

1982665C2

COVER ASSY

Access, Inc. 26 - 29

2шт.

26

1982666C2

COVER

1шт.

27

1982668C1

HINGE

1шт.

28

151-218

RIVET,Tr Hd, 3/16" x .281", Alum.

3шт.

29

1994969C1

SEALING STRIP

450 mm (17-3/4 in)

1шт.

Cut From 1994968C1

1шт.

30

1982673C1

LATCH

Cover

2шт.

31

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

1/4 x 3/4

4шт.

32

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

33

196534A3

GUIDE

Lift Cylinder

1шт.

34

426-680

BOLT,Hex, 3/8" - 16 x 5", Gr 8

3/8 x 5; 8

2шт.

35

231-4116

NUT,3/8"-16, GB

3/8

2шт.
