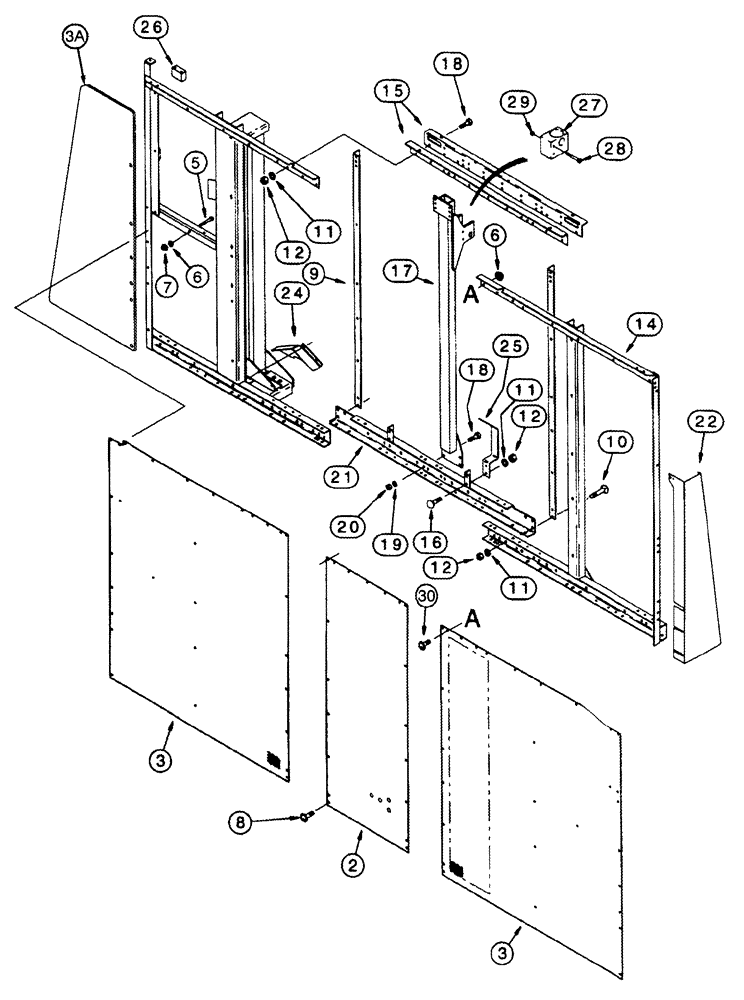

Запчасти Case IH 2555 (09D-10) - BASKET, FRONT - BSN JFG010001 (16) - BASKET

REF

INSTRUCTION

Basket, Complete, Inc. 2 - 29

1шт.

2

244600A2

COVER

Screen, Center

1шт.

3

244599A3

COVER

Screen

2шт.

3a

335005A1

FLAP

Basket Door, Front

1шт.

4

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4, Not Illustrated

1шт.

4a

488837C1

SPRING NUT

5/16, Not Illustrated

1шт.

5

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

6

495-81143

WASHER,13/32" x 1 1/2" x .120"

1шт.

7

231-1446

NUT,3/8" - 16, Gr 5

1шт.

9

1260162C1

SUPPORT

Screen Mounting Bracket

2шт.

10

433-632

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

1шт.

11

492-11038

LOCK WASHER,3/8"

1шт.

12

425-106

NUT,3/8"-16, Cl 5

1шт.

13

231817A6

END

Left Hand

1шт.

14

231819A4

END

Right Hand

1шт.

15

231823A3

ANGLE BAR

Tie

2шт.

16

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

17

246970A3

SUPPORT

Basket Lift

1шт.

18

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

1шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

20

425-108

NUT,1/2" - 13, Gr 5

1шт.

21

1260318C3

CONDUIT

Tie

1шт.

22

1990335C2

GUARD

Right Hand Front, If Used

1шт.

24

1988634C1

GUARD

Front, If Used

1шт.

25

1984211C1

GUIDE

Basket Door

1шт.

26

222680A2

GUIDE

Basket Door, Upper Inner

2шт.

27

196534A3

GUIDE

Lift Cylinder

1шт.

28

426-680

BOLT,Hex, 3/8" - 16 x 5", Gr 8

3/8 x 5; 8

2шт.

29

231-4116

NUT,3/8"-16, GB

3/8

2шт.

30

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

1шт.

8

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.
