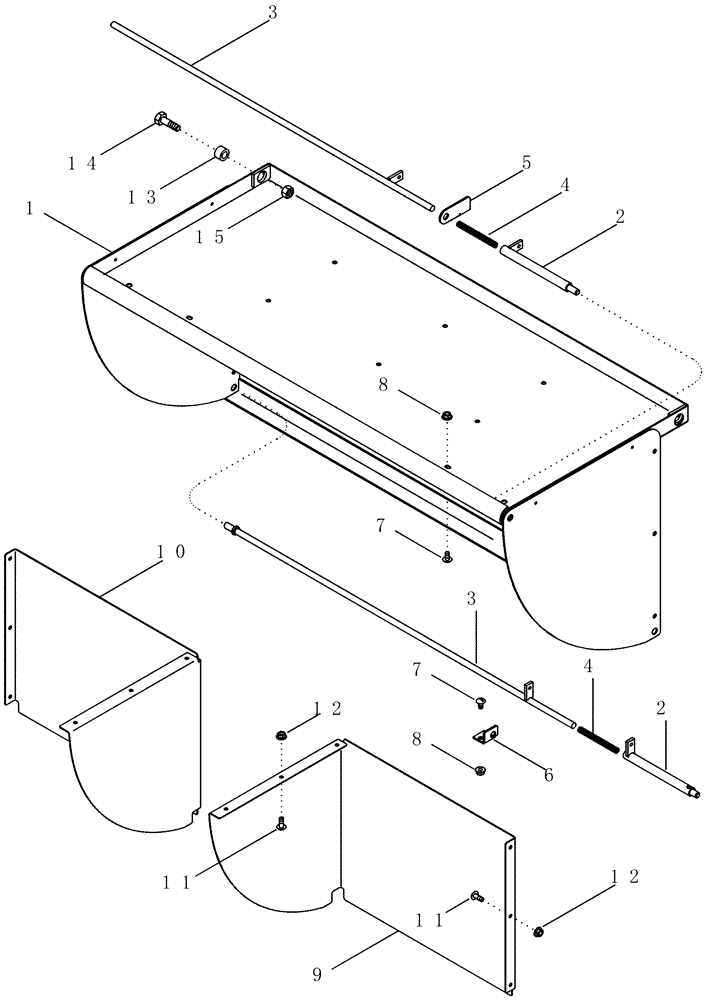

Запчасти Case IH 2555 (09D-07) - LID - BASKET - HINGE ASN JJC00249500 (16) - BASKET

1

360041A2

HOOD

1шт.

2

335967A1

ROD ASSY.

2шт.

3

321250A1

ROD ASSY.

2шт.

4

10322R

SPRING

2шт.

5

321153A1

ANGLE

1шт.

6

321213A1

ANGLE

Lower

1шт.

7

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

1/4 x 1/2; 8

2шт.

8

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

9

363223A1

HOOD

Right Hand

1шт.

10

363224A1

PANEL

Left Hand, 4 RW (1)

1шт.

10

436020A1

FILLER

Left Hand, 4 RN (1)

1шт.

11

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

1/4 x 3/4

1шт.

12

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

13

199804C1

SPACER

Slip Clutch

6шт.

14

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

6шт.

15

231-5146

FLANGE NUT,3/8"-16

(5)

6шт.
