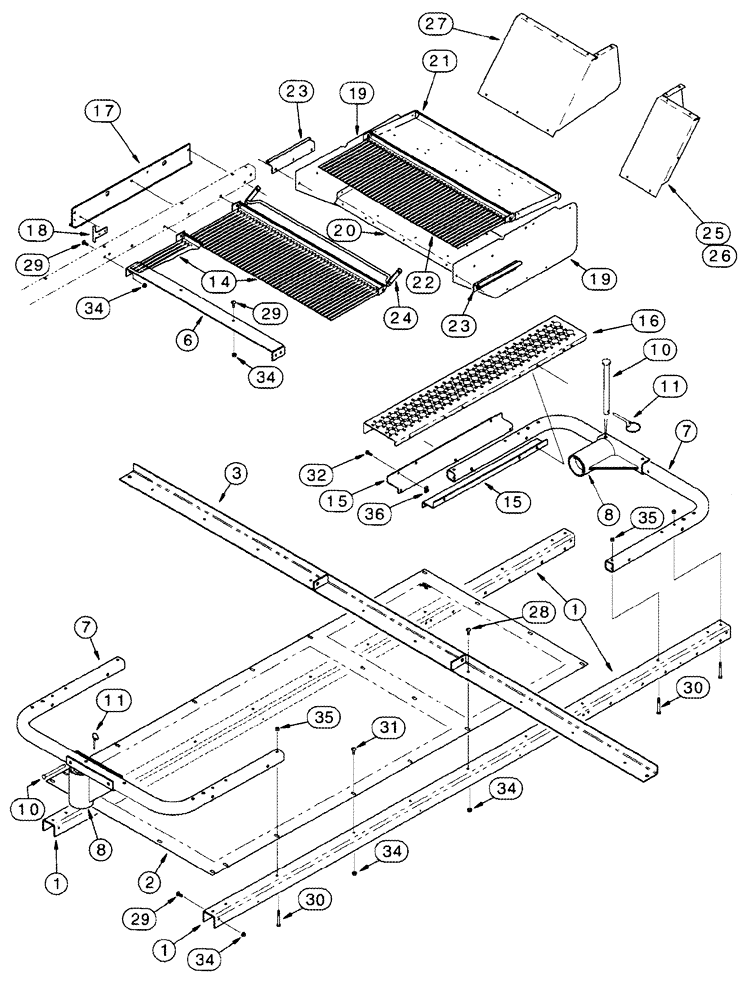

Запчасти Case IH 2555 (09D-06) - LID - BASKET - TOP (16) - BASKET

1

362526A1

SUPPORT

Basket Grate Support

2шт.

2

220485A3

COVER

Rear, Serial Range: -JFG010001

3шт.

2

87434520

COVER

SHEET Lid Top, Start Serial: JFG010001

3шт.

3

238665A1

SUPPORT

Center Tie

1шт.

6

231111A2

ANGLE BAR

Basket Roof Filler Front

3шт.

7

199774A3

TUBE

Basket Cylinder Mount

2шт.

8

231687A4

SUPPORT

Cylinder Mount

2шт.

10

439-5848

HEADED PIN,1/2" x 3", G5

1/2 x 3

4шт.

11

A33497

LINCH PIN,4.76mm OD Pin

4шт.

14

325244A1

DEFLECTOR

Basket Cover

6шт.

15

220672A2

ANGLE

Basket Top Deck

4шт.

16

140768A4

STEP

Header Beam

2шт.

17

197578A2

GUIDE

Basket Hood Fixed

6шт.

18

221526A1

RETAINER

Guide Basket Hood

6шт.

19

233718A3

LARGE PLATE

PLATE, LARGE Basket Hood Ends, Serial Range: -JJC0249500

6шт.

20

228254A3

DEFLECTOR

Basket Hood Bottom, Start Serial: JJC0249500

3шт.

21

197673A4

LARGE PLATE

PLATE, LARGE Grate Filler

3шт.

22

669619R93

SIEVE

Deflector

3шт.

23

197579A2

GUIDE

Basket Hood Adjustable

6шт.

24

233628A2

ROD

Basket Hood Lock Latch

3шт.

25

228310A1

DEFLECTOR

Right Hand, 4 Row Wide

1шт.

26

228255A1

DEFLECTOR

Left Hand, 4 Row Wide, Not Illustrated

1шт.

27

253324A1

DEFLECTOR

Left Hand, 4 Row Narrow

1шт.

28

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

3/8 x 1-1/4

4шт.

30

426-648

BOLT,Hex, 3/8" - 16 x 3", Gr 8

12шт.

31

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

1шт.

32

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

9шт.

33

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

4шт.

34

231-5146

FLANGE NUT,3/8"-16

1шт.

35

231-4146

NUT,3/8"-16, GB

18шт.

36

488837C1

SPRING NUT

Speed

9шт.

477-73832

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 2"

3/8 x 2

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

450-73816

SERRATED SCREW,Truss HD, 3/8" - 16 x 1"

3/8 x 1

1шт.

231-5146

FLANGE NUT,3/8"-16

1шт.

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

1/4 x 3/4

1шт.

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

230-4116

LOCK NUT,3/8"-16, GA

3/8

1шт.

495-81136

WASHER,10.31mm ID x 25.4mm OD x 3.81mm Thk

13/32 x 1 x 7/64

1шт.

29

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

45шт.
