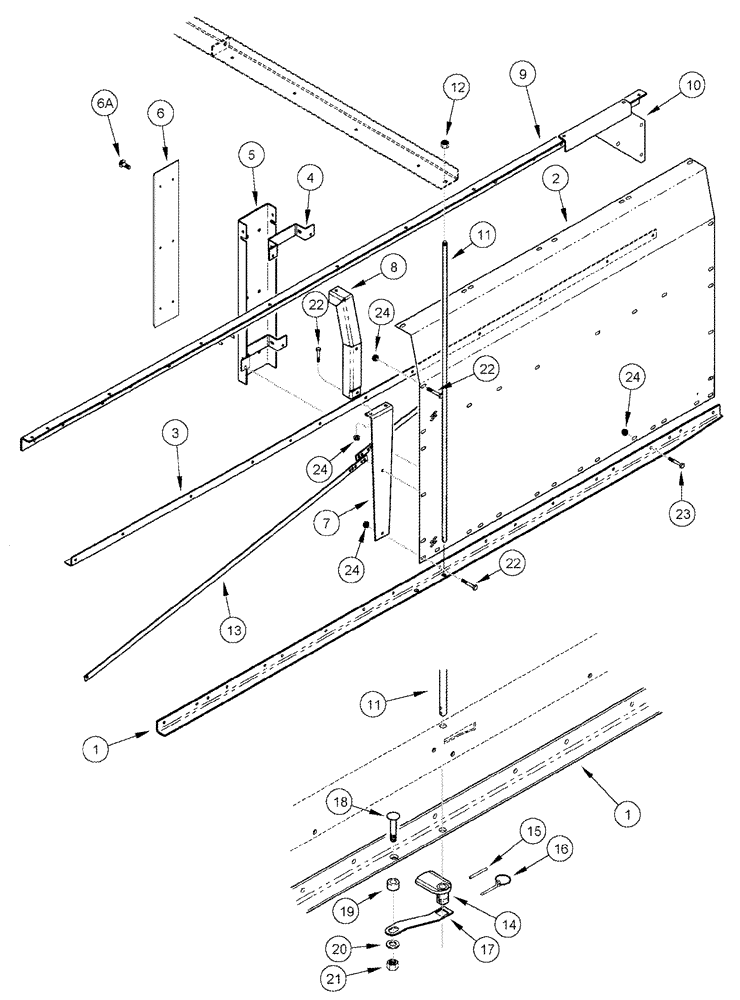

Запчасти Case IH 2555 (09D-04) - LID - BASKET - RIGHT HAND WALL (16) - BASKET

1

246438A2

SUPPORT

Lower Lid Side

1шт.

2

245064A1

SHEET

Side, Serial Range: -JFG010001

2шт.

2

87434519

SHEET

SHEET Lid Side, Start Serial: JFG010001

2шт.

3

220418A3

ANGLE BAR

Extension End, Side

1шт.

4

183315A1

SUPPORT

Lid Guide

2шт.

5

183316A1

CHANNEL

Lid Guide, Long

1шт.

6

183347A2

BAR

Compactor Wear

1шт.

6a

278738A1

BOLT

5/16 x 1

6шт.

7

245271A2

ANGLE

Center Tie

1шт.

8

199815A2

ANGLE

Basket Side, Center Support

1шт.

9

362527A1

ANGLE BAR

Basket Grate Support

1шт.

10

239472A2

ANGLE

Basket Lid Cylinder Anchor

1шт.

11

230404A3

ROD

Basket Top Guide

1шт.

12

231-41110

LOCK NUT,5/8"-11, GB

1шт.

13

1979669C3

FIXING STRIP

Basket Extension

2шт.

14

243203A1

PLATE

Basket Top Lock

1шт.

15

438-11616

LOCK PIN,1/4" x 1", Slotted

1/4" x 1", Slotted

1шт.

16

A33497

LINCH PIN,4.76mm OD Pin

1шт.

17

243131A2

PLATE

Basket Lock Keeper

1шт.

18

420-2624

PLOW BOLT,#3, 3/8" - 16 x 1 1/2", Gr 8

3/8 x 1-1/2; 8

1шт.

19

313458A1

SPACER

1шт.

20

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

1шт.

21

231-4146

NUT,3/8"-16, GB

1шт.

23

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

21шт.

24

231-5146

FLANGE NUT,3/8"-16

25шт.

25

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

2шт.

26

230-4116

LOCK NUT,3/8"-16, GA

3/8

2шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

7шт.

495-81147

WASHER,0.41" ID x 2" OD x 0.11" Thk

1шт.

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

3/8 x 1-1/4

2шт.

495-81137

WASHER,13/32" x 1" x .224"

13/32 x 1 x 15/64

2шт.

495-81136

WASHER,10.31mm ID x 25.4mm OD x 3.81mm Thk

13/32 x 1 x 7/64

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

6шт.

231-4146

NUT,3/8"-16, GB

6шт.

22

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

4шт.
