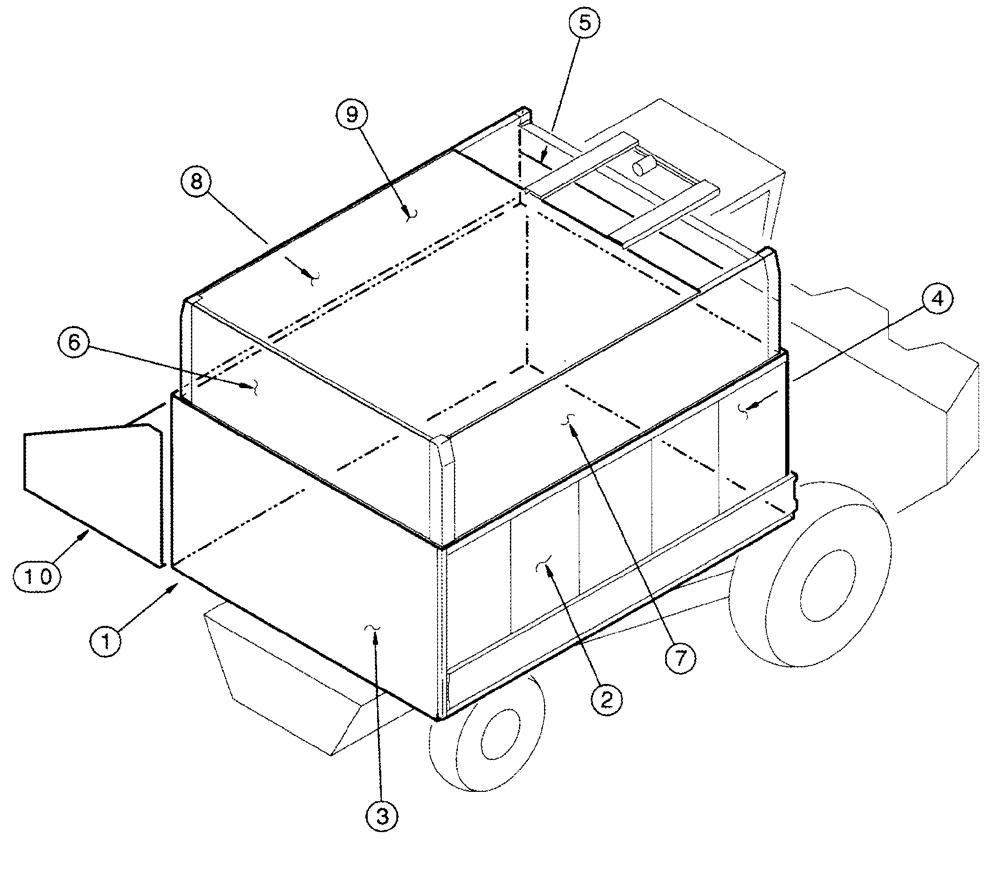

Запчасти Case IH 2555 (09D-01) - MAJOR BASKET ASSEMBLIES (16) - BASKET

387919A1

BASKET ASSY

Inc. 1 - 4, Serial Range: -JFG010001

1шт.

87433290

BASKET ASSY

Inc. 1 - 10, Start Serial: JFG010001

1шт.

1

NSS

NOT SOLD SEPARAT

Basket, Floor

1шт.

See Figure(s) 09D-13, 09D-13A

1шт.

2

NSS

NOT SOLD SEPARAT

Basket, Right Hand Side

1шт.

See Figure(s) 09D-12, 09D-12A

1шт.

3

NSS

NOT SOLD SEPARAT

Basket, Rear Wall

1шт.

See Figure(s) 09D-11, 09D-11A

1шт.

4

NSS

NOT SOLD SEPARAT

Basket, Front Wall

1шт.

See Figure(s) 09D-10, 09D-10A

1шт.

NSS

NOT SOLD SEPARAT

Basket Lid, Panel Assy, Inc. 5 - 9

1шт.

5

NSS

NOT SOLD SEPARAT

Panel, Basket Lid, Front Wall

1шт.

See Figure 09D-02

1шт.

6

NSS

NOT SOLD SEPARAT

Panel, Basket Lid, Rear Wall

1шт.

See Figure 09D-03

1шт.

7

NSS

NOT SOLD SEPARAT

Panel, Basket Lid, Right Hand Wall

1шт.

See Figure 09D-04

1шт.

8

NSS

NOT SOLD SEPARAT

Panel, Basket Lid, Left Hand Wall

1шт.

See Figure 09D-05

1шт.

9

NSS

NOT SOLD SEPARAT

Panel, Basket Lid, Top

1шт.

See Figure 09D-06

1шт.

10

NSS

NOT SOLD SEPARAT

Door Assy, Basket

1шт.

See Figure(s) 09D-14 - 09D-16, 09D-15A

1шт.
