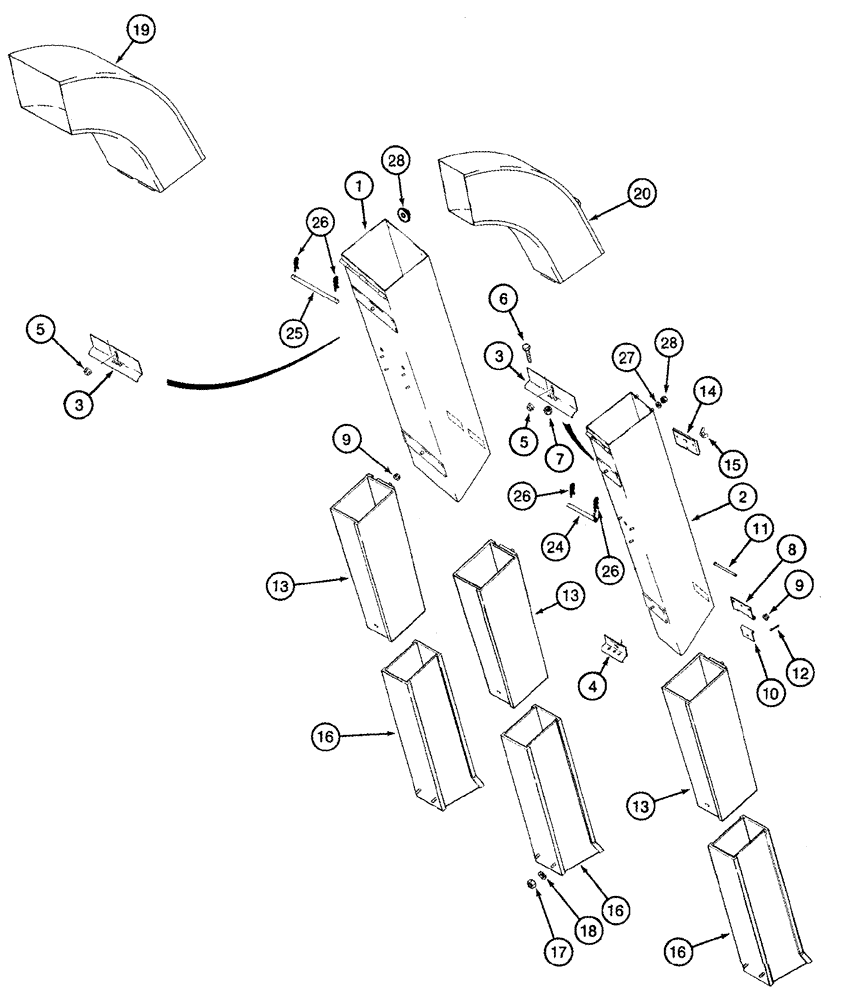

Запчасти Case IH 2555 (09C-17) - CONVEYOR CHUTES - CENTER (15) - HANDLING SYSTEM

1

199607A4

CHUTE

Double, Upper

1шт.

2

199604A4

TUBE

Single, Upper, 5 Row Narrow

2шт.

3

127588A1

CLAMP

Upper

1шт.

4

127589A1

CLAMP

Lower

1шт.

5

231-5146

FLANGE NUT,3/8"-16

1шт.

6

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1шт.

7

230-4114

NUT,1/4"-20, GA

1/4

1шт.

8

1349843C1

HINGE

Female

1шт.

9

231-4116

NUT,3/8"-16, GB

3/8

1шт.

10

1270014C1

HINGE

Male

1шт.

11

1349860C1

PIN,7.94mm OD x 129mm L

1шт.

12

432-816

COTTER PIN,1/8" x 1"

1шт.

13

1349938C1

CHUTE

Female

1шт.

14

1983180C1

COVER

Duct Access

1шт.

15

86627130

WING NUT,1/4"-20

1/4

1шт.

16

1349934C3

CHUTE

1шт.

17

425-106

NUT,3/8"-16, Cl 5

1шт.

18

492-11038

LOCK WASHER,3/8"

1шт.

19

199936A3

CHUTE

Double Center

1шт.

20

199932A2

TUBE

Single Center, 5 Row Narrow

2шт.

24

233320A2

PIN,7.94mm OD x 194.5mm L

Used With Single Conveyor Chute and Hood

1шт.

25

233321A2

PIN,7.94mm OD x 366.5mm L

Used With Double Conveyor Chute and Hood

1шт.

26

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

2 used per Hinge Pin

1шт.

27

195-81027

WASHER,0.38" ID x 1.12" OD x 0.07" Thk

2 Used Per Hood

1шт.

28

360662A1

NUT

5/16, 2 Used Per Hood

1шт.
