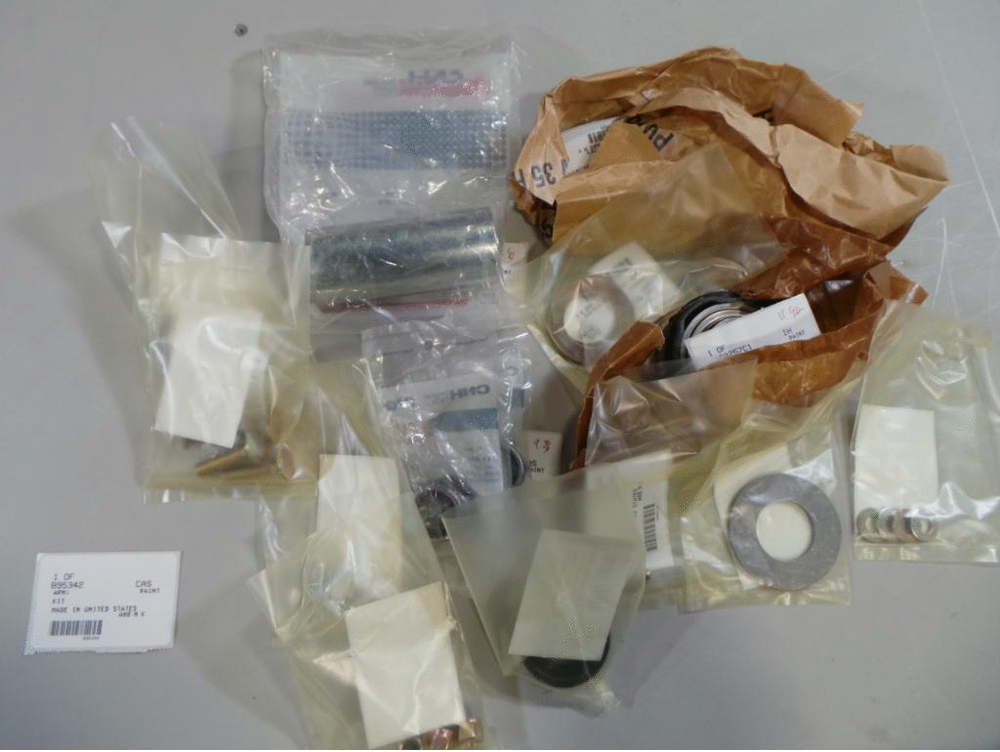

Запчасти Case IH 2555 (09C-12A[02]) - KIT FAN W/O SHAFT REAR (15) - HANDLING SYSTEM

1

B95342

KIT

Incl 2 - 14

1шт.

2

96-11144

WASHER,1.44" ID x 2.75" OD x 0.15" Thk

1шт.

3

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

4шт.

4

86625064

NUT,Prev Torque, 3/8" - 16, Gr B

4шт.

5

84330078

COLLAR,35.05mm ID x 55.6mm OD x 17.77mm L

1шт.

6

496-11094

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

2шт.

7

495-81214

WASHER,1.41" ID x 2.25" OD x 0.06" Thk

2шт.

8

280552

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

4шт.

9

219-439

ADAPTER,90 Degree, 1/4"-1/8 NPTF

2шт.

10

131-476

SPECIAL NUT,7/8"-14

2шт.

11

1263058C91

FLANGED BEARING,34.92mm ID

1шт.

12

1260257C1

FLANGED BEARING,34.93mm ID

1шт.

13

1260073C2

SPACER

1шт.

14

NH80715

LUBE NIPPLE

2шт.
