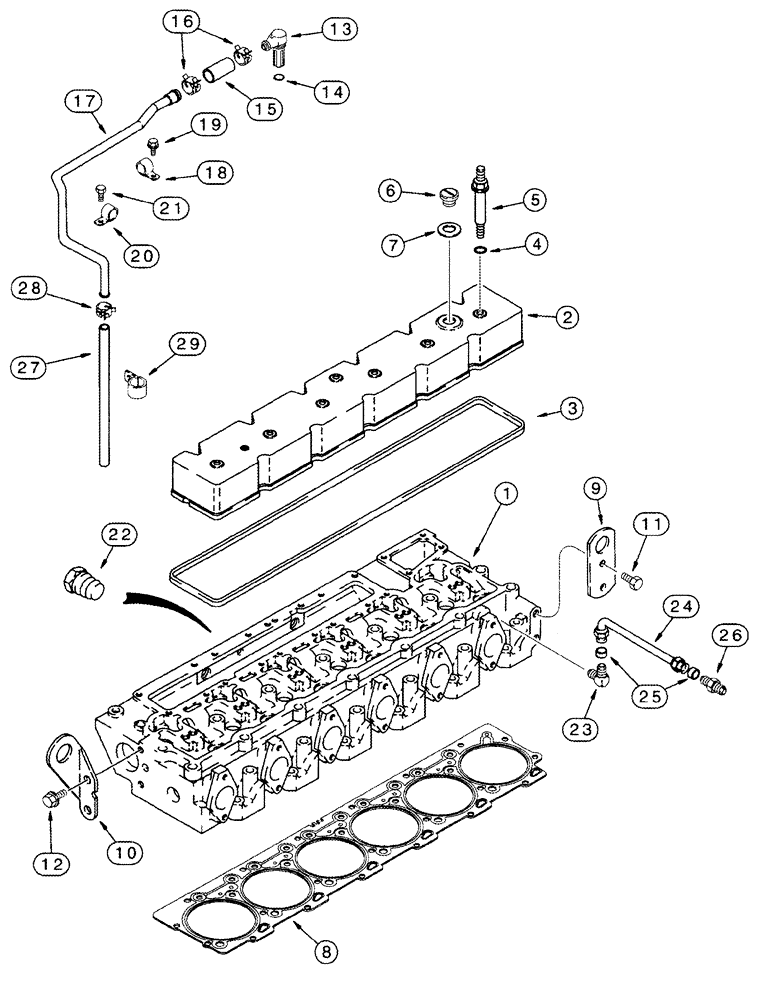

Запчасти Case IH 2555 (02-16) - CYLINDER HEAD - COVER (01) - ENGINE

1

REF

INSTRUCTION

Head, Cylinder, See Figure 02-18

1шт.

2

J930903

VALVE COVER

1шт.

3

J905449

SEAL,7.179mm W x 2090mm L

1шт.

4

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

6шт.

5

J922639

STUD

6шт.

6

J902468

FILLER CAP,Male

1шт.

7

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

1шт.

8

J938267

CYLINDER HEAD GASKET,2.01mm Thk

1шт.

8

J935586

CYLINDER HEAD GASKET,1.91mm Thk

0.25 mm

1шт.

8

J935587

CYLINDER HEAD GASKET,2.38mm Thk

0.50 mm

1шт.

9

J907861

LIFTING EYE

1шт.

10

J906440

LIFTING EYE

1шт.

11

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

12

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

13

J935113

ELBOW

1шт.

14

J936331

SEAL,17.7mm ID x 22.74mm OD x 3.5mm Thk

1шт.

15

J930827

HOSE,51.00 mm

1шт.

16

J937613

HOSE CLAMP

2шт.

17

J909669

TUBE,15.9-19 mm OD x 642.7 mm L

1шт.

18

J907741

CLAMP,15.88mm ID, 9.52mm Bolt Hole, P Type

1шт.

19

J912072

SELF-TAP SCREW

M8 st x 15

1шт.

20

A77538

CLIP

1шт.

21

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

1шт.

22

J906619

PLUG,1/8" - 27

1/8 PT

1шт.

23

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

1/4 tube OD x 1/8 PT

1шт.

24

J924589

TUBE,6.35 mm OD x 112.6 mm L

Inc. 25

1шт.

25

222-153

SLEEVE,1/4" Tube

2шт.

26

222-22

FITTING,1/2"-24 x 1/8" NPTF w/Nut

1/4 tube OD x 1/8

1шт.

27

1546368C2

HOSE

1000 mm (39-3/8 in), Cut From 1977295CX

1шт.

28

1954736C1

HOSE CLAMP,#24

1шт.

29

1345263C1

CLIP

3/4 ID

2шт.
