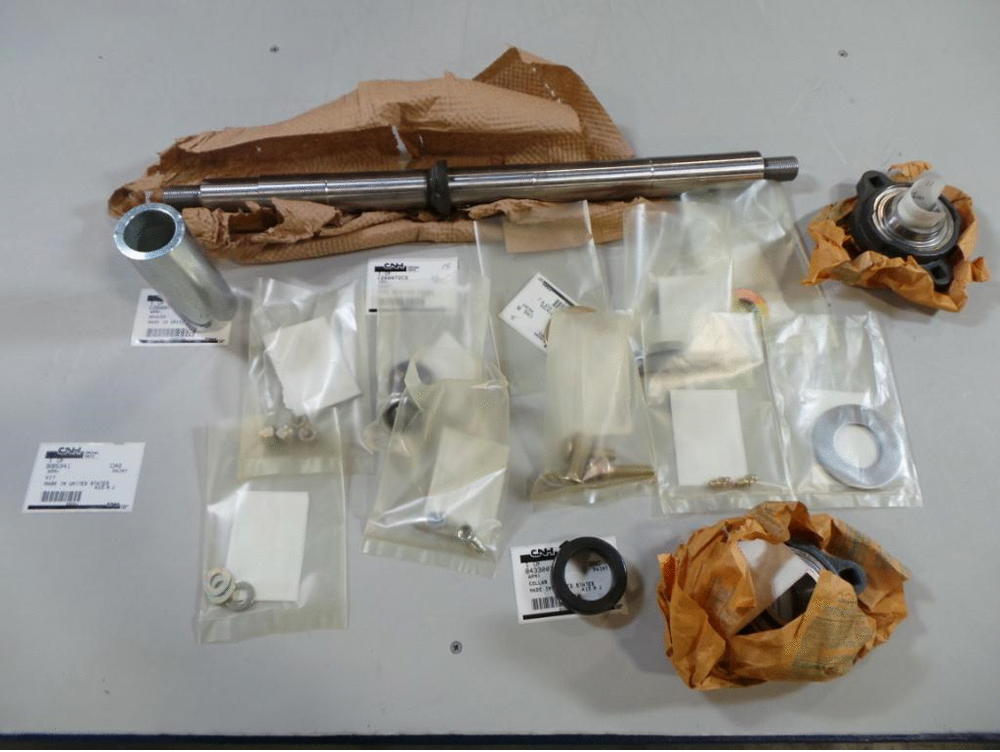

Запчасти Case IH 2555 (09C-12A[01]) - KIT FAN KIT WITH SHAFT REAR (15) - HANDLING SYSTEM

1

B95341

KIT

Incl 2 - 16

1шт.

2

96-11144

WASHER,1.44" ID x 2.75" OD x 0.15" Thk

1шт.

3

496-11094

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

2шт.

4

495-81214

WASHER,1.41" ID x 2.25" OD x 0.06" Thk

2шт.

5

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

4шт.

6

84330078

COLLAR,35.05mm ID x 55.6mm OD x 17.77mm L

1шт.

7

280552

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

4шт.

8

86625064

NUT,Prev Torque, 3/8" - 16, Gr B

4шт.

9

84260803

ADAPTER

2шт.

10

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

2шт.

11

131-476

SPECIAL NUT,7/8"-14

2шт.

12

1263058C91

FLANGED BEARING,34.92mm ID

1шт.

13

88745

WOODRUFF KEY,#28, 5/16" x 2 1/8", HT

3шт.

14

1260257C1

FLANGED BEARING,34.93mm ID

1шт.

15

1260073C2

SPACER

1шт.

16

1260072C5

SHAFT

1шт.
