Запчасти Case IH 2555 (09C-12) - REAR FAN - BSN JJC0249799 (15) - HANDLING SYSTEM

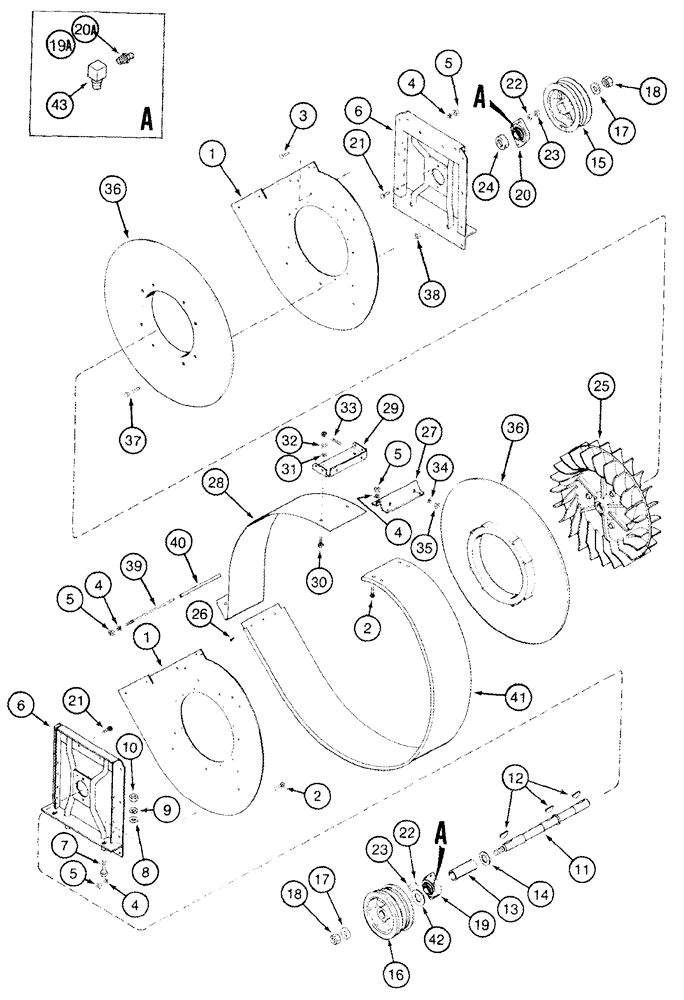

Схема запчастей Case IH 2555 - (09C-12) - REAR FAN - BSN JJC0249799 (15) - HANDLING SYSTEM
2
9
5
20
1
15
28
7
40
4
12
43
36
35
5
23
11
33
3
39
18
34
4
8
32
4
24
17
31
22
14
18
19
21
26
38
16
42
25
22
23
1
10
36
29
6
19a
5
30
27
4
13
2
5
20a
17
37
21
6
41

Артикул

Название

Примечание

Количество

1345031C5

FAN

Rear, Inc. 1 - 43

1шт.

1

1260066C2

PLATE

2шт.

2

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

10шт.

3

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

19шт.

3

434-416

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1", Gr 5

1шт.

4

492-11025

LOCK WASHER,1/4"

33шт.

5

425-104

NUT,1/4"-20, Cl 5

33шт.

6

1260120C4

HOUSING

2шт.

7

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

8

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

4шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

10

425-108

NUT,1/2" - 13, Gr 5

4шт.

11

1260072C5

SHAFT

Fan Drive, Rear

1шт.

12

126-147

WOODRUFF KEY,#28, 5/16" x 2 1/8", HT

3шт.

13

1260073C2

SPACER

1шт.

14

495-81213

WASHER,35.71mm ID x 50.8mm OD x 1.7mm Thk

1-13/32 x 2 x 1/16

1шт.

15

1338322C1

PULLEY

Fan

1шт.

16

197487A1

PULLEY

Fan

1шт.

17

496-21094

WASHER,23.82mm ID x 44.45mm OD x 4.85mm Thk

2шт.

18

131-476

SPECIAL NUT,7/8"-14

7/8 NF

2шт.

19

1260257C1

FLANGED BEARING,34.93mm ID

Front

1шт.

19a

219-10

LUBE NIPPLE,1/4" - 28 NPTF

1/4 tpr x 11/16

1шт.

20

1263058C91

FLANGED BEARING,34.92mm ID

Rear

1шт.

20a

219-10

LUBE NIPPLE,1/4" - 28 NPTF

1/4 tpr x 11/16

1шт.

21

434-624

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

3/8 NC X 1-1/2 inch

4шт.

22

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

4шт.

23

231-1446

NUT,3/8" - 16, Gr 5

4шт.

24

517645R11

COLLAR

1шт.

25

1260010C1

FAN

Rotor

1шт.

26

260-1346

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/8"

No 8-18 x 3/8

2шт.

27

204414C1

SUPPORT

Tie Bracket

1шт.

28

204416C1

BAFFLE

Cover

1шт.

29

204415C1

SUPPORT

Bolt Anchor

1шт.

30

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

6шт.

31

492-11031

LOCK WASHER,5/16"

6шт.

32

425-105

NUT,5/16"-18, G5

6шт.

33

433-648

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3", Gr 5

2шт.

34

492-11038

LOCK WASHER,3/8"

2шт.

35

425-106

NUT,3/8"-16, Cl 5

2шт.

36

207515C1

BAFFLE

Fan

2шт.

37

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

16шт.

38

231-4115

NUT,5/16"-18, GB

16шт.

39

215709C1

STUD

1шт.

40

215020C1

PIPE

Fan Housing

1шт.

41

221533C1

COVER

1шт.

42

188354C1

WASHER,35.71mm ID x 57.15mm OD x 3.05mm Thk

1-13/32 x 2-1/4 x 1/8, Outer

1шт.

43

219-439

ADAPTER,90 Degree, 1/4"-1/8 NPTF

1шт.

Выбрано товаров: 47
